Boat Outfitting

ROKK Mini Mount Kit - Rail Mount - Tablet Clamp

Universal design ensures you have all the pieces needed to mount a variety of tablets on a Scanstrut Mini Mount and Adjustable Body.

This three (3) part kit installs in minutes and allows quick release of mounted equipment.

Features:

• Engineered to withstand high shock loading.
• Quick Fit I Quick Release - Install your devices instantly onboard.  With one reassuring click your tablet is both secured and released.
• Adjustable - fits devices from 4.92" - 8.66" (125mm to 220 mm)
• Solid Install - A metal-on-metal locking system multiples your clamping efforts to achieve 100% locking force.  Your electronics will never move; until you want them to
• Base secures to a flat surface with included hardware.

In the Box:

• RL-508 ROKK Tablet Clamp
• RLS-AM ROKK Mini Adjustable Arm
• RLS-401 ROKK Mini Rail Mount

*Sold as a Kit

Specifications:

• Cut/Uncut: Cut
• Mounting Style: Rail
• Box Dimensions: 3"H x 9"W x 11"L WT: 1.4 lbs
• UPC: 5060114795730

Quick Guide (pdf)
Brochure (pdf)

Mast Mounts

Still the first choice for boat owners the world over, Scanstrut Mast Mounts are the ultimate solution for mounting radars on yachts masts.

Raising the antenna clear of any obstructions or interference, the mast mount is a classic and reliable installation.

Features

• Easy and quick to install with all fastenings supplied

• Attached to mast by four swivel feet matching the profile of any mast

• 12 point fixing using highest quality Monel rivets for a secure installation

• Nylon washers for all fastenings to protect paint finish

• Waterproof cable grommet included to seal cable entry into mast

Materials

• Marine grade 6082 aluminium

• Polyester powder coated for a durable and gloss white finish

Kit includes

• 1 x Mast Mount

• 4 x Swivel mounting feet

• 1 x Complete fastening pack

Fits:
Furuno models: 1712,1715,1721,1722,1723,1724,1823,1824,DRS2D
Lowrance model: LRA 1500

Specifications:

• Construction: Powder Coated Aluminum
• Type: Mast Mount
• Box Dimensions: 5"H x 8"W x 17"L WT: 3.4 lbs
• UPC: 5060114790032

Quick Guide (pdf)

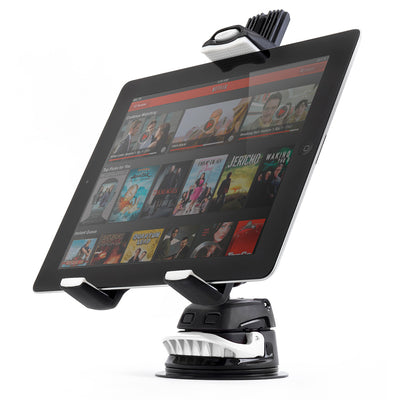

ROKK Mini Tablet Mount Kit with Suction Cup Base

The hi-performance system allows users to suction a tablet to any rigid, clean, smooth, non-textured surface. The 360-degree aluminum body features a metal-on-metal locking system that multiplies the clamping efforts to achieve 100% locking force. The tablet will never move unless the user wants it to.

Features:

• Engineered better for longer-lasting grip

Tablet Clamp Top Plate

• Secure mount for mini and full-size tablets – ratchet adjustable
• Fits devices from 125mm to 220mm (5-8¼”)

360 Degree Body

• Install devices instantly onboard. With one reassuring click, tech is both secured and released
• A metal-on-metal locking system multiplies clamping efforts to achieve 100% locking force. Electronics will never move until you want them to

Suction Cup Base

• Fits to any rigid, clean, smooth, non-textured surface*
• Tough, marine-grade, UV-stable materials
• Mounts quickly with over-center locking arm (no tools required)
• Safety lock prevents accidental release when the ROKK Mini adjustable body is attached

Quick Guide (pdf)

6" Aluminum PowerTower Mount for Starlink

Engineered for Starlink Flat High-Performance

150mm (6”) high and constructed from the best marine-grade aluminum, designed to fit Starlink's Flat High-Performance Model.

Install your Starlink with precision on the roof, T-top, flybridge, or radar arch of your powerboat. It guarantees obstacle clearance and positions your Starlink at an ideal 8° angle for optimal connectivity. Designed for the harsh marine environment, it's tailored to fit Starlink High-Performance. Pre-drilled mounting holes allow secure fastening directly to the tower, while the built-in Scanstrut Cable Seal ensures a watertight installation, eliminating the need to remove Starlink connectors during installation. The paint finishes adhere to our exclusive 4-step marine paint system, and it's crafted from premium marine-grade aluminum.

Features:

• Designed to fit, designed to fit Starlink High-Performance.
• Pre-drilled mounting holes allow Starlink to fasten straight to the PowerTower
• No need to cut the cable connectors off for installation
• Marine sealant is not required
• Paint finishes comply with our unique 4-step marine paint system
• A range of accessories light bars can be bolted to the back of the PowerTower

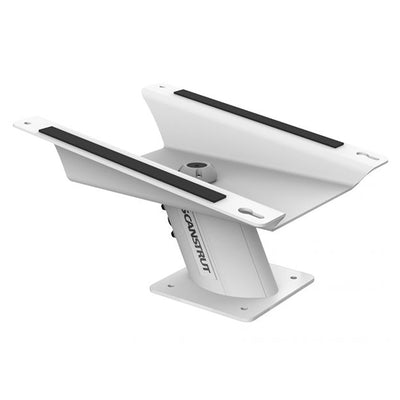

8" Aluminum Wedge Mount for Starlink

Is your Boat Starlink Ready?

Enhance the performance of your Starlink Flat High-Performance with our Aluminium 8° Wedge Mount which has been specifically designed for the marine environment. The mount works as a stand-alone wedge or is compatible with our Modular Dual PowerTower Range and SC103/4 Pole mounts.

The Scanstrut Aluminium 8° Wedge Mount for Starlink High-Performance has been specifically designed for the marine environment. This versatile wedge can serve as a standalone option for mounting Starlink directly onto a boat's roof or deck. Additionally, it functions as an adapter plate, seamlessly integrating with our popular Modular Dual PowerTower range, making it ideal for multi-electronic installations on powerboats. It can also be used as a top plate in conjunction with our SC100 Pole Mount range, designed specifically for transom mounting on sailing boats, ensuring that your Starlink hardware is elevated to an optimal position while optimizing space onboard.

Features:

• Designed to fit Starlink High-Performance.
• Pre-drilled mounting holes allow the hardware to fasten directly to the wedge.
• Built-in Scanstrut Cable Seal ensures a watertight installation.
• No need to cut the Starlink connectors for installation.
• Marine sealant is not required.
• Paint finishes comply with our unique 4-step marine paint system.
• Constructed from the best marine-grade aluminum.

ATMOS 12V Integrated Air Station

Revolutionize your boating experience. Scanstrut's built-in air station is here to maximize quality time on the water. ATMOS, by Scanstrut, will revolutionize your family’s boating experience. This beautifully designed, built-in air station is here to maximize quality time on the water. At the push of a button, ATMOS is ready to inflate your paddleboards, towables, and more: simply set the target pressure and let ATMOS do all the hard work. Utilizing Scanstrut’s outdoor technology DNA, this is waterproof on-board air that’s engineered to thrive in the harsh marine environment.

Innovative Two-Stage Pump

ATMOS with Brushless Technology - Unleash the power, efficiency, and reliability of our innovative two-stage pump system designed to meet the rugged demands of the marine environment. The first stage features a highly efficient fan motor, followed by a robust piston pump, both designed specifically for the rugged demands of the marine environment. ATMOS combines both pumps into one waterproof, easy-to-use onboard air station, automatically switching at 1.1PSI from the HVLP to the HPLV pump.

Stage 1: High-volume, low-pressure (HVLP)

Designed to move large volumes of air with minimal pressure. They are typically used for inflating larger inflatable objects like kayaks, large tubes, and bathing platforms, as they can quickly inflate the object to the desired pressure.

Stage 2: High-pressure, low-volume (HPLV)

Designed to generate a high level of pressure with a low volume of air. Perfect for inflating smaller toys like SUPs, inflatable kayaks, and tubes that require a higher level of pressure for optimum performance.

Installation:

• How: Panel mounted using self-tapping screws or bolts (not included), foam gasket included.
• Installation angle: + 10º to - 30º from vertical
• Service: No end-user serviceable parts
• Where: Fits into a wide variety of locations on board: seating, side panels, or consoles. Minimum cavity depth 110mm (4.33”)
• Ignition Protection - ISO 8846 and SAE J1171 ATMOS SC-AOB-A2 has successfully undergone all required tests and complies with the rigorous standard for Ignition Protection. This certification signifies that ATMOS can be safely installed in any location on a boat or vehicle.

The Design:

The Front

Take control with our Soft Touch TPE buttons and cutting-edge LCD. Specially crafted for the challenging marine environment, the buttons feature a non-slip texture that provides a tactile surface, even with wet hands, and the bright, wide viewing angle display means you can have a great view from any place on the boat, even on the brightest days. The display also features a helpful Live Voltage readout, so you can easily keep track of your boat's battery health.

The Back

Easily integrate ATMOS into your boat with its compact and shallow design. The versatile AirStation can be installed in a variety of locations, including seating, consoles, or by the swim platform, making it convenient and accessible wherever it's needed. Easily installed into any panel using 10 self-tapping screws, with a foam gasket included to ensure a secure and waterproof fit.

The Side

The minimum cavity depth required is 110mm/4.33", and it can be installed at an angle ranging from +10º to -30º from vertical. The power cable length is 500mm (20”) with a wire gauge of 2.0mm2 (14 AWG). Please note that there are no end-user serviceable parts.

Environment:

• Environmental protection: Conformal-coated electronics and PCB
• Brushless Technology: Featuring high-performance brushless motors designed for the marine environment.
• Protection: Reverse polarity, short-circuit, under voltage, overload, over temp.
• Certifications: CE, ROHS, UN ECE R10, UKCA
• Cable length: 500mm (20”) 1.5 mm2 16 AWG
• Waterproof rating: IPX6 front and rear (door closed)
• Airflow: In and out of the front of the unit only. The rear of the unit is sealed

Safety:

• Max run time: 25 minutes (3 SUPs)
• Under protection: Soft motor start
• Standby mode: No activity auto shut off - 5 mins
• Max pressure output: 20 PSI / 1.4 BAR
• Warranty: 2-Year warranty
• Auto shut-off: At target pressure
• Ambient operating temp: -20º to +50 ºC
• Ignition Protection: ATMOS SC-AOB-A2 meets the ISO 8846 and SAE J1171 test standards for Ignition Protection.

Technical Specifications:

• Waterproof rating: IPX6 waterproof front and back
• Max volume of airflow 0-1 PSI: 350 LPM/12.3 CFM
• Max volume of airflow 1-20 PSI: 70 LPM/2.5 CFM
• Standby power draw: 0.01W Max
• Ambient operating temp: -20º to +50 ºC
• Input voltage: 12V Battery system (10-14V)
• Max Pressure output: 20 PSI / 1.37 BAR
• Max current draw: 12A (140W)
• Standby current draw: 0.02W Max
• Two-stage pump: Stage 1 = 0 -1 PSI, Stage 2 = 1.1 - 20 PSI

What's In The Box?

• Sun Cover: Supplied with a heavy-duty sun cover, it can help protect it from the long-term damaging effects of the sun, salt, and other elements. With our sun cover, you'll be able to keep ATMOS looking its best for longer.
• 2.5M (8ft) hose: When inflating a paddleboard on a boat, the most stable location for the pump is usually on the deck or another flat surface. However, this location may not be close enough to the paddleboard to allow for easy inflation if the hose is too short. A longer hose can help to bridge this distance, allowing you to move the pump away.
• 6x Hose attachments: Supplied with 6 different adapters including; Boston Valve, C7 Valve, H3/HR Valve, Pinch Valves, and 805 Valve. You have everything you need to inflate and deflate your toys with ease, no matter what type of valve it has.

Quick Guide (pdf)
Brochure (pdf)

APT-250-02 - Aluminum PowerTower® Radar Mount - 10" Aft Leaning

The Scanstrut Aluminum PowerTower is engineered for outstanding strength and with an unparalleled surface finish. Manufactured using the best marine grade Aluminium, PowerTower® is molded as a single 'monocoque' structure with no joints, offering unparalleled strength and durability.

Designed to install your radar on the roof, T-top, flybridge, or radar arch of your powerboat, providing the clearest view of the horizon allowing you to get the best performance from your radar in all conditions.

By elevating your antenna clear of obstructions, PowerTower® maximizes the performance of your radar.

There is a PowerTower® to fit pretty much every modern radar.

Compatible with:

• Furuno - 1621, 1622, 1623, 1715, 1724, 1734, 1815, 1824, 1832, 1834, 1835, DRS2D, DRS2D-NXT, DRS42DL, DRS42DL+, DRS4D/DRSD4D-NXT, DRS4W, NavNet (18" and 24") radars
• Humminbird - AS 21 RD4KW radar
• Intellian - i1 radars
• Interphase - Mini RE-1, RE-8 radars
• JRC - 1000, 1000mk2, 1066, 1500, 1500mk2, 1800, 2000, JMA 2343 / 5104 (Radome: NKE-2042) radars
• Koden - 2kW 12" radar
• KVH - TracVision M1 and TV1 radars
• Lowrance - 3G/4G, LRA-1800, RB714A, DX42, LRA-2400 HD radars
• Majestic - SATMAR32 radar
• Navman - 8000 Series (8084 and 8120) 18" radars
• Nobletec - 2kW - 20" radars
• Northstar - M Series 18" and 24"  8000i radars
• Raymarine - 33STV radars
• Seiwa - SWR-1, 8, 9 radars
• Simrad - 3G/4G, GB40, NX40/45, NSE8/12, RB712A, DX42S, DX64S radars
• Sitex - MDS-1, 8, 12, NKE-1066 radars
• Techmarine - T-72.01, 72.02, 72.04 Radars

Features:

• Designed to fit the most up to date radars
• Pre-drilled mounting holes allow the radar to fasten straight to the PowerTower®
• No need to cut the radar’s connectors off for installation
• Constructed from the best Marine grade Aluminium
• A range of accessories light bars can be bolted to the back of the PowerTower®

Technical Specifications:

• Radar Type - Dome
• Material - Aluminium
• Height - 9.84" (250mm)
• Mounting Type - Aft leaning - 25°

In the Box:

• Mount
• Mounting hardware (excluding screws/bolts)
• Installation manual

*Sold as an Individual

Specifications:

• Construction: Aluminum
• Height: 9.84
• Type: Aft Leaning Mount
• Box Dimensions: 8"H x 9"W x 15"L WT: 5 lbs
• UPC: 5060114797734

Quick Guide (pdf)

APT-LB-L1 PowerTower® Central Light Bar w/Integrated 360° White LED Light

Maximize your Navlight performance.  Integrated light mount comes pre-fitted with a LED 360° all-round white light.

Compatible With:

• Scanstrut aft leaning PowerTower® radar mounts

Features:

• Perfect anchor / steaming light upgrade
• All mounting holes predrilled for easy retrofit installation
• No extra fastenings required
• Cables run internally via a watertight seal

Technical Specifications:

• Range 2NM
• Input Voltage - 12V
• Material - Aluminum
• Height - 15.9" (404mm)
• Mount Position - Center

In the Box:

• Light bar
• LED 360° all-round light - White
• Instruction manual

*Sold as an Individual

Specifications:

• Construction: Aluminum
• Height: 16
• Type: Lights
• Box Dimensions: 5"H x 15"W x 22"L WT: 3 lbs
• UPC: 5060114798106

Brochure (pdf)

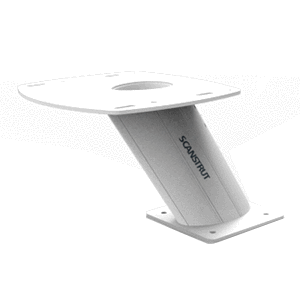

APT-F-250-02 Aluminum PowerTower® Radar Mount - 10" Forward Leaning

The Scanstrut Aluminum PowerTower is engineered for outstanding strength and with an unparalleled surface finish.  Manufactured using the best marine grade Aluminium, PowerTower® is molded as a single 'monocoque' structure with no joints, offering unparalleled strength and durability.

Designed to install your radar on the roof, T-top, flybridge, or radar arch of your powerboat, providing the clearest view of the horizon allowing you to get the best performance from your radar in all conditions.

By elevating your antenna clear of obstructions, PowerTower® maximizes the performance of your radar.

There is a PowerTower® to fit pretty much every modern radar.

Compatible with:

• Furuno - 1621, 1622, 1623, 1715, 1724, 1734, 1824, 1832, 1834, 1835, DRS2D, DRS2D-NXT, DRS42DL, DRS42DL+, DRS4D, DRS4D-NXT, DRS4W, 18" and 24" NavNet radars
• Humminbird - AS 21RD4KW radar
• Intellian - i1 radar
• Interphase - Mini RE-1, RE-8 radars
• JRC - 1000, 1000mk2, 1066, 1500, 1500mk2, 1800, 2000, JMA 2343 / 5104 (Radome: NKE-2042) radars
• Koden - 2kW 12" radar
• Lowrance - 3G/4G, LRA-1800 / RB714A / DX42, LRA-2400 HD radars
• Navman - 18" and 24" Series 8000 radars
• Nobletec - 2kW (20") radars
• Northstar - 18" and 24" M Series/8000i
• Seiwa - SWR-1, 8 and 9 radars
• Simrad - 3G/4G, GB40 / NX40/45 / NSE8/12 / RB712A / DX42S, GB40 / NX40/45 / NSE8/12 DX64S radars
• Sitex - MDS-1, 8, 12, NKE-1066 radars
• Techmarine - T-72.01, 72.02, 72.04 radars

Features:

• Designed to fit the most up to date radars
• Pre-drilled mounting holes allow the radar to fasten straight to the PowerTower®
• No need to cut the radar’s connectors off for installation
• Constructed from the best Marine grade Aluminium
• A range of accessories light bars can be bolted to the back of the PowerTower®

Technical Specifications:

• Radar Type - Dome
• Material - Aluminium
• Height - 9.84" (250mm)
• Mounting Type - Forward leaning - 33°

In the Box:

• Mount
• Mounting hardware (excluding screws/bolts)
• Installation manual

*Sold as an Individual

Specifications:

• Type: Forward Leaning Mount
• Construction: Aluminum
• Height: 10
• Box Dimensions: 4"H x 8"W x 17"L WT: 2.5 lbs
• UPC: 5060114797727

Quick Guide (pdf)

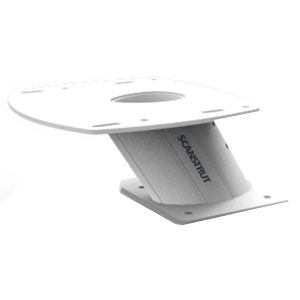

APT-F-150-02 Aluminum PowerTower® Radar Mount - 6" Forward Leaning

The Scanstrut Aluminum PowerTower is engineered for outstanding strength and with an unparalleled surface finish.  Manufactured using the best marine grade Aluminium, PowerTower® is molded as a single 'monocoque' structure with no joints, offering unparalleled strength and durability.

Designed to install your radar on the roof, T-top, flybridge, or radar arch of your powerboat, providing the clearest view of the horizon allowing you to get the best performance from your radar in all conditions.

By elevating your antenna clear of obstructions, PowerTower® maximizes the performance of your radar.

There is a PowerTower® to fit pretty much every modern radar.

Compatible with:

• Furuno - 1621, 1622, 1623, 1715, 1724, 1734, 1824, 1832, 1834, 1835, DRS2D, DRS2D-NXT, DRS42DL, DRS42DL+, DRS4D, DRS4D-NXT, DRS4W, 18" and 24" NavNet radars
• Humminbird - AS 21RD4KW radar
• Intellian - i1 radar
• Interphase - Mini RE-1, RE-8 radars
• JRC - 1000, 1000mk2, 1066, 1500, 1500mk2, 1800, 2000, JMA 2343 / 5104 (Radome: NKE-2042) radars
• Koden - 2kW 12" radar
• KVH - TracVision M1 and TV1 radars
• Lowrance - 3G/4G, LRA-1800 / RB714A / DX42, LRA-2400 HD radars
• Majestic - SATMAR32 radar
• Navman - 18" and 24" Series 8000 radars
• Nobletec - 2kW (20") radars
• Northstar - 18" and 24" M Series/8000i
• Raymarine - 33STV radar
• Seiwa - SWR-1, 8 and 9 radars
• Simrad - 3G/4G, GB40 / NX40/45 / NSE8/12 / RB712A / DX42S, GB40 / NX40/45 / NSE8/12 DX64S radars
• Sitex - MDS-1, 8, 12, NKE-1066 radars
• Techmarine - T-72.01, 72.02, 72.04 radars

Features:

• Designed to fit the most up to date radars
• Pre-drilled mounting holes allow the radar to fasten straight to the PowerTower®
• No need to cut the radar’s connectors off for installation
• Constructed from the best Marine grade Aluminium
• A range of accessories light bars can be bolted to the back of the PowerTower®

Technical Specifications:

• Radar Type - Dome
• Material - Aluminium
• Height - 5.91" (150mm)
• Mounting Type - Forward leaning - 33°

In the Box:

• Mount
• Mounting hardware (excluding screws/bolts)
• Installation manual

*Sold as an Individual

Specifications:

• Type: Forward Leaning Mount
• Construction: Aluminum
• Height: 6
• Box Dimensions: 8"H x 10"W x 12"L WT: 4.05 lbs
• UPC: 5060114797741

Quick Guide (pdf)

APT-150-02 - Aluminum PowerTower® Radar Mount - 6" Aft Leaning

The Scanstrut Aluminum PowerTower is engineered for outstanding strength and with an unparalleled surface finish.  Manufactured using the best marine grade Aluminium, PowerTower® is molded as a single 'monocoque' structure with no joints, offering unparalleled strength and durability.

Designed to install your radar on the roof, T-top, flybridge or radar arch of your powerboat, providing the clearest view of the horizon allowing you to get the best performance from your radar in all conditions.

By elevating your antenna clear of obstructions, PowerTower® maximizes the performance of your radar.

There is a PowerTower® to fit pretty much every modern radar.

Compatible with:

• Furuno - 1621, 1622, 1623, 1715, 1724, 1734, 1815, 1824, 1832, 1834, 1835, DRS2D, DRS2D-NXT, DRS42DL, DRS42DL+, DRS4D/DRSD4D-NXT, DRS4W, NavNet (18" and 24") radars
• Humminbird - AS 21 RD4KW radar
• Intellian - i1 radars
• Interphase - Mini RE-1, RE-8 radars
• JRC - 1000, 1000mk2, 1066, 1500, 1500mk2, 1800, 2000, JMA 2343 / 5104 (Radome: NKE-2042) radars
• Koden - 2kW 12" radar
• KVH - TracVision M1 and TV1 radars
• Lowrance - 3G/4G, LRA-1800, RB714A, DX42, LRA-2400 HD radars
• Majestic - SATMAR32 radar
• Navman - 8000 Series (8084 and 8120) 18" radars
• Nobletec - 2kW - 20" radars
• Northstar - M Series 18" and 24"  8000i radars
• Raymarine - 33STV radars
• Seiwa - SWR-1, 8, 9 radars
• Simrad - 3G/4G, GB40, NX40/45, NSE8/12, RB712A, DX42S, DX64S radars
• Sitex - MDS-1, 8, 12, NKE-1066 radars
• Techmarine - T-72.01, 72.02, 72.04 Radars

Features:

• Designed to fit the most up to date radars
• Pre-drilled mounting holes allow the radar to fasten straight to the PowerTower®
• No need to cut the radar’s connectors off for installation
• Constructed from the best Marine grade Aluminium
• Range of accessories light bars can be bolted to the back of the PowerTower®

Technical Specifications:

• Radar Type - Dome
• Material - Aluminium
• Height - 5.91" (150mm)
• Mounting Type - Aft leaning - 25°

In the Box:

• Mount
• Mounting hardware (excluding screws/bolts)
• Installation manual

*Sold as an Individual

Specifications:

• Construction: Aluminum
• Height: 5.91
• Type: Aft Leaning Mount
• Box Dimensions: 7"H x 10"W x 11"L WT: 3.9 lbs
• UPC: 5060114797710

Quick Guide (pdf)

APT-150-01 - Aluminum PowerTower® Radar Mount - 6" Aft Leaning - Black

The Scanstrut Aluminum PowerTower is engineered for outstanding strength and with an unparalleled surface finish.  Manufactured using the best marine grade Aluminium, PowerTower® is molded as a single 'monocoque' structure with no joints, offering unparalleled strength and durability.

Designed to install your radar on the roof, T-top, flybridge or radar arch of your powerboat, providing the clearest view of the horizon allowing you to get the best performance from your radar in all conditions.

By elevating your antenna clear of obstructions, PowerTower® maximizes the performance of your radar.

There is a PowerTower® to fit pretty much every modern radar.

Compatible with:

• B & G - HALO20, HALO20+, HALO24 radars
• Garmin - Fantom 18, 24, GMR18HD / 18xHD / 18HD+, GMR24HD / 24xHD, GMR40 radars
• Humminbird - HB 2124 CHIRP radar
• KVH - TracPhone V3-HTS, TracVision M2, M3, TV3, V3 radars
• Lowrance - 3G/4G radars
• Raymarine - QUANTUM (Q24C), QUANTUM 2 (Q24D), RD218, RD418/RD418HD, RD424/RD424HD radars
• Simrad - 3G/4G, DX45, DX60 / DX64-S, GB40 / NX40/45 / NSE8/12 radars
• Sitex - RADARpc - 4D radar

Features:

• Designed to fit the most up to date radars
• Pre-drilled mounting holes allow the radar to fasten straight to the PowerTower®
• No need to cut the radar’s connectors off for installation
• Constructed from the best Marine grade Aluminium
• Range of accessories light bars can be bolted to the back of the PowerTower®

Technical Specifications:

• Radar Type - Dome
• Material - Aluminium
• Height - 5.91" (150mm)
• Mounting Type - Aft leaning - 25°

In the Box:

• Mount
• Mounting hardware (excluding screws/bolts)
• Installation manual

*Sold as an Individual

Specifications:

• Construction: Aluminum
• Type: Aft Leaning Mount
• Height: 5.91
• Box Dimensions: 5"H x 16"W x 21"L WT: 3.4 lbs
• UPC: 5060114797680

Quick Guide (pdf)

APT-LB-01-BLK PowerTower® Center Mounted Light Bar - Black

Installs navigation lights above the antenna for maximum visibility and performance.

Compatible with:

• Scanstrut aft leaning PowerTower® radar mounts

Features:

• All mounting holes predrilled for easy retrofit installation, attach using mounting bolts, no extra fastenings required
• Cables run internally via a watertight seal

Technical Specifications:

• Material - Aluminum
• Height - 25.4" (404mm)
• Mount Position - Center

In the Box:

• Light bar
• Instruction manual

*Sold as an Individual

Specifications:

• Construction: Aluminum
• Type: Light/GPS Brackets
• Height: 25.4
• Box Dimensions: 5"H x 16"W x 22"L WT: 3.35 lbs
• UPC: 5060114797703

Quick Guide (pdf)

APT-250-01-B - Aluminum PowerTower® Radar Mount - 10" Aft Leaning - Black

The Scanstrut Aluminum PowerTower® is engineered for outstanding strength and with an unparalleled surface finish.  Manufactured using the best marine grade Aluminium, PowerTower® is molded as a single 'monocoque' structure with no joints, offering unparalleled strength and durability.

Designed to install your radar on the roof, T-top, flybridge or radar arch of your powerboat, providing the clearest view of the horizon allowing you to get the best performance from your radar in all conditions.

By elevating your antenna clear of obstructions, PowerTower® maximizes the performance of your radar.

There is a PowerTower® to fit pretty much every modern radar.

Compatible with:

• B & G - HALO20, HALO20+, HALO24 radars
• Garmin - Fantom 18, 24, GMR18HD / 18xHD / 18HD+, GMR24HD / 24xHD, GMR40 radars
• Humminbird - HB 2124 CHIRP radar
• KVH - TracPhone V3-HTS, TracVision M2, M3, TV3, V3 radars
• Lowrance - 3G/4G radars
• Raymarine - QUANTUM (Q24C), QUANTUM 2 (Q24D), RD218, RD418/RD418HD, RD424/RD424HD radars
• Simrad - 3G/4G, DX45, DX60 / DX64-S, GB40 / NX40/45 / NSE8/12 radars
• Sitex - RADARpc - 4D radar

Features:

• Designed to fit the most up to date radars
• Pre-drilled mounting holes allow the radar to fasten straight to the PowerTower®
• No need to cut the radar’s connectors off for installation
• Constructed from the best Marine grade Aluminium
• Range of accessories light bars can be bolted to the back of the PowerTower®

Technical Specifications:

• Radar Type - Dome
• Material - Aluminium
• Height - 9.84" (250mm)
• Mounting Type - Aft leaning - 25°

In the Box:

• Mount
• Mounting hardware (excluding screws/bolts)
• Installation manual

*Sold as an Individual

Specifications:

• Construction: Aluminum
• Type: Aft Leaning Mount
• Height: 9.84
• Box Dimensions: 11"H x 13"W x 13"L WT: 7 lbs
• UPC: 5060114797697

Quick Guide (pdf)

CAM-PT-300-03 Aluminum PowerTower® f/FLIR M300 Cameras - 12"

Expertly designed to install your camera on the cabin roof, flybridge or radar arch of your powerboat.  Scanstrut thermal camera mounting solutions ensure you get the most from this ground-breaking new technology.

Compatible with:

•  FLIR M300 cameras

Features:

• Designed to fit the most up to date cameras
• Pre-drilled mounting holes allow the camera to fasten straight to the PowerTower®
• No need to cut the cameras connectors off for installation
• Constructed from Marine grade Aluminium

Technical Specifications:

• Material - Aluminium
• Height - 11.81" (300mm)
• Mounting Type - Aft leaning - 25°

In the Box:

• Mount
• Mounting hardware (excluding screws/bolts)
• Installation manual

*Sold as an Individual

Specifications:

• Construction: Powder Coated Aluminum
• Type: Aft Leaning Mount
• Height: 12
• Box Dimensions: 11"H x 13"W x 16"L WT: 7.5 lbs
• UPC: 5060114797659

Quick Guide (pdf)

CAM-PT-150-03 Aluminum PowerTower® for FLIR M300 Cameras - 6"

Expertly designed to install your camera on the cabin roof, flybridge or radar arch of your powerboat.  Scanstrut thermal camera mounting solutions ensure you get the most from this ground-breaking new technology.

Compatible with:

•  FLIR M300 cameras

Features:

• Designed to fit the most up to date cameras
• Pre-drilled mounting holes allow the camera to fasten straight to the PowerTower®
• No need to cut the cameras connectors off for installation
• Constructed from Marine grade Aluminium

Technical Specifications:

• Material - Aluminium
• Height - 5.91" (150mm)
• Mounting Type - Aft leaning - 25°

In the Box:

• Mount
• Mounting hardware (excluding screws/bolts)
• Installation manual

*Sold as an Individual

Specifications:

• Construction: Aluminum
• Type: Aft Leaning Mount
• Height: 6
• Box Dimensions: 8"H x 12"W x 13"L WT: 5.25 lbs
• UPC: 5060114797642

Quick Guide (pdf)

SC29 Radar Guard for M92722 for Use In Combination with Raymarine Quantum Radar

Polished stainless steel guards protect radome from damage and reduce wear on the sails.

Features:

• Mounted using radome bolts, no extra fastenings required
• Easy to fit – between mast mount and radar antenna
• Manufactured from marine grade 316 stainless steel

Specifications:

• Type: Radar Guards
• Box Dimensions: 5"H x 25"W x 25"L WT: 5 lbs
• UPC: 5060114795693

Camera Plate 3 Fits FLIR M300 Series Thermal Cameras for Dual Mount Systems

The modular Dual Power Tower has been designed to allow your open array. radar, satdome and camera to be mounted together in one single space saving modular installation.

Specifically for Camera plate 2 (FLIR M300 Thermal Imaging Cameras for Dual Mount Systems)

Specifications:

• Type: Adapters
• Box Dimensions: 2"H x 10"W x 12"L WT: 2.7 lbs
• UPC: 5060114797673

APT-F-250-01 Aluminum PowerTower® Radar Mount - 10" Forward Leaning

The Scanstrut Aluminum PowerTower is engineered for outstanding strength and with an unparalleled surface finish.  Manufactured using the best marine grade Aluminium, PowerTower® is molded as a single 'monocoque' structure with no joints, offering unparalleled strength and durability.

Designed to install your radar on the roof, T-top, flybridge, or radar arch of your powerboat, providing the clearest view of the horizon allowing you to get the best performance from your radar in all conditions.

By elevating your antenna clear of obstructions, PowerTower® maximizes the performance of your radar.

There is a PowerTower® to fit pretty much every modern radar.

Compatible with:

• B & G - HALO 20, 20+, 24 radars
• Garmin - Fantom 18, 24, GMR18HD, GMR18xHD, GMR24HD, GMR24xHD, GMR40 radars
• Humminbird - HB 2124 CHIRP radar
• KVH - TracPhone V3-HTS, TracVision M2, M3, TV3, V3 radars
• Lowrance - 3G/4G radars
• Raymarine - Quantum (Q24C), Quantum 2 (Q24D), RD218, RD418/RD418HD, RD424/RD424HD radars
• Simrad - 3G/4G, DX45, DX60, DX54-S, GB40, NX40, NSE 8/12 radars
• Sitex - RADARpc 4D radar

Features:

• Designed to fit the most up to date radars
• Pre-drilled mounting holes allow the radar to fasten straight to the PowerTower®
• No need to cut the radar’s connectors off for installation
• Constructed from the best Marine grade Aluminium
• A range of accessories light bars can be bolted to the back of the PowerTower®

Technical Specifications:

• Radar Type - Dome
• Material - Aluminium
• Height - 9.84" (250mm)
• Mounting Type - Forward leaning - 33°

In the Box:

• Mount
• Mounting hardware (excluding screws/bolts)
• Installation manual

*Sold as an Individual

Specifications:

• Construction: Aluminum
• Type: Forward Leaning Mount
• Height: 10
• Box Dimensions: 13"H x 14"W x 15"L WT: 7.5 lbs
• UPC: 5060114796492

Quick Guide (pdf)

APT-F-LB-01 PowerTower® Center Mounted Light Bar for Forward Leaning Radar Mounts

Central light bar for all forward learning PowerTowers®

Compatible with:

• Scanstrut forward leaning PowerTower® radar mounts

Features:

• All mounting holes are predrilled for easy retrofit installation, attach using mounting bolts, no extra fastenings required
• Cables run internally via a watertight seal

Technical Specifications:

• Material - 316 Stainless Steel
• Height - 25.4" (404mm)
• Mount Position - Center

In the Box:

• Light bar
• Instruction manual

*Sold as an Individual

Specifications:

• Construction: Aluminum
• Type: Light/GPS Brackets
• Height: 25.4
• Box Dimensions: 5"H x 10"W x 25"L WT: 3 lbs
• UPC: 5060114797628

Quick Guide (pdf)

APT-F-150-01 Aluminum PowerTower® Radar Mount - 6" Forward Leaning

The Scanstrut Aluminum PowerTower is engineered for outstanding strength and with an unparalleled surface finish.  Manufactured using the best marine grade Aluminium, PowerTower® is molded as a single 'monocoque' structure with no joints, offering unparalleled strength and durability.

Designed to install your radar on the roof, T-top, flybridge, or radar arch of your powerboat, providing the clearest view of the horizon allowing you to get the best performance from your radar in all conditions.

By elevating your antenna clear of obstructions, PowerTower® maximizes the performance of your radar.

There is a PowerTower® to fit pretty much every modern radar.

Compatible with:

• B & G - HALO 20, 20+, 24 radars
• Garmin - Fantom 18, 24, GMR18HD, GMR18xHD, GMR24HD, GMR24xHD, GMR40 radars
• Humminbird - HB 2124 CHIRP radar
• KVH - TracPhone V3-HTS, M2, M3, TV3, V3 radars
• Lowrance - 3G/4G radars
• Raymarine - Quantum (Q24C), Quantum 2 (Q24D) radars
• Simrad - 3G/4G, DX45, DX60, DX54-S, GB40, NX40, NSE 8/12 radars
• Sitex - RADARpc 3.5/4.5 radars

Features:

• Designed to fit the most up to date radars
• Pre-drilled mounting holes allow the radar to fasten straight to the PowerTower®
• No need to cut the radar’s connectors off for installation
• Constructed from the best Marine grade Aluminium
• A range of accessories light bars can be bolted to the back of the PowerTower®

Technical Specifications:

• Radar Type - Dome
• Material - Aluminium
• Height - 5.91" (150mm)
• Mounting Type - Forward leaning - 33°

In the Box:

• Mount
• Mounting hardware (excluding screws/bolts)
• Installation manual

*Sold as an Individual

Specifications:

• Construction: Aluminum
• Type: Forward Leaning Mount
• Height: 6
• Box Dimensions: 8"H x 13"W x 16"L WT: 6.1 lbs
• UPC: 5060114796485

Quick Guide (pdf)

ROKK Mini Mount Kit - Rail Mount - Phone Clamp

The ROKK Mini universal phone mounting kit is the toughest mounting system for your telephone.

The hi-performance ROKK mini modular system allows you to attach your electronics to boats, cars, off-road vehicles, aircraft and more.  Move your electronics conveniently between different types of base mounts in different locations in one easy click.

Want to unlock multiple mounting options in different locations or simply mount a different electronic device?  Just add another top or base to your modular kit and extend possibilities of your ROKK mini starter kit.

This three (3) part kit installs in minutes and allows quick release of mounted equipment.

Features:

• Engineered to withstand high shock loading.
• Secure mount for smart phones, handheld GPS and other small devices.
• Base secures to a rail with included hardware.

In the Box:

• RLS-402 Mini Rail Mount
• RL-509 Universal Phone Clamp
• RLS-AM ROKK Mini Adjustable Arm

*Sold as a Kit

Specifications:

• Cut/Uncut: Cut
• Mounting Style: Rail
• Box Dimensions: 3"H x 5"W x 9"L WT: 1.05 lbs
• UPC: 5060114795761

Quick Guide (pdf)
Brochure (pdf)

Scanpod Helm Pod Uncut for 10" to 12" Displays

With great design features, the Scanstrut Helm Pod is a perfect choice for all cockpit configurations.

With options to fit radar displays, chartplotters and standard navigation instruments, the choice is yours!

For Displays & Standard Instruments:

• Fits 10" to 12" displays
• Can accommodate 3 or 4 standard instruments (e.g. ST60)
• Usable face 14.7H x 9.7W

Features:

UNIVERSAL HELM FIXING

Fits pedestal rails from 25mm to 33.7mm (0.98″ – 1.33″) diameter. Using a unique clamping system, the Deep Pod's can fit rail widths from 178mm (7”) upwards.*

SECURE & WATERTIGHT INSTALL

Saddle system supports the stainless tubing enabling a secure and rigid fit onto any pedestal and also ensures a watertight seal at cable entry.

NO DRILL FIXING KIT

Customised U-bolts fit around rail and through the saddles into the back of the pod eliminating the need for time consuming and awkward drilling of the stainless rail.

HASSLE FREE INSTALL & SERVICE

Fixings fit from back to front cutting their threads into injection moulded ABS inserts designed into the Pod front. This design allows for a quick and safe install and repeat servicing.

INCREASED PROTECTION

Pod seal is manufactured from a high tear strength silicone, it has a very high resistance to heat and UV so you can have confidence that it won’t deteriorate over time.

SUPPLIED UNCUT

As standard you will receive your Scanpod uncut. For larger orders, a factory cutting service is available.

Specifications:

• Usable Face: 14.7"W x 9.7"H
• Mounting Style: Pedestal
• Cut/Uncut: Uncut
• Box Dimensions: 8"H x 11"W x 17"L WT: 6.4 lbs
• UPC: 5060114797260

Scanpod Deck Pod Uncut for 10" to 12" Displays

Solve the challenge of finding a level mounting surface to install your displays onto your powerboat, RIB or sailboat wheelhouse.

For Displays and Standard Instruments:

• Fits 10" to 12" Displays
• Usable face 14.7H x 9.7W
• Accomodates 3/4 Standard instruments (e.g. ST60)

Features:

SWIVEL & TILT BASE

One handed quick release action. Simply release the lever, swivel and tilt to suit your requirements before locking back into position.

BEST VIEWING ANGLE

An adjustable ball joint allows range of movement and multiple mounting angles.

ADDED STRENGTH

Inner bracing plate secures the Deck Pod base to the pod and gives increased rigidity to the assembly eliminating potential damaged from shock and vibration.

OVERHEAD MOUNTING

Deck Pod models can be overhead mounted. Refer to part number guide for compatibility.

HASSLE FREE INSTALL & SERVICE

Fixings fit from back to front cutting their threads into injection moulded ABS inserts designed into the Pod front. This design allows for a quick and safe install and repeat servicing.

INCREASED PROTECTION

Pod seal is manufactured from a high tear strength silicone, it has a very high resistance to heat and UV so you can have confidence that it won’t deteriorate over time.

SUPPLIED UNCUT

As standard you will receive your Scanpod uncut (for tips on cutting, please view the FAQ tab). For larger orders, a factory cutting service is available.

Specifications:

• Usable Face: 14.7"W x 9.7"H
• Mounting Style: Deck
• Cut/Uncut: Uncut
• Box Dimensions: 9"H x 12"W x 17"L WT: 8.85 lbs
• UPC: 5060114797284

Modular Dual PowerTower Strut - Compact Domes Only

The Modular Dual PowerTower has been designed to allow your open array, radar, Satcom & camera to be mounted together in one single space-saving modular installation.

Features:

• Dual Power Tower strut (Radome) (compact)
• Material: 6082 Aluminum Extrusion
• Coating: Polyester Powder
• Finish: Gloss White
• Application: Marine

Specifications:

• Construction: Powder Coated Aluminum
• Type: Aft Leaning Mount
• Box Dimensions: 10"H x 14"W x 27"L WT: 9.2 lbs
• UPC: 5060114796331

Scanpod Helm Pod Uncut for 9" Displays

With great design features, the Scanstrut Helm Pod is a perfect choice for all cockpit configurations.

With options to fit radar displays, chartplotters and standard navigation instruments, the choice is yours!

For Displays & Standard Instruments:

• Fits up to 9" displays
• Can accommodate 3 or 4 standard instruments (e.g. ST60)
• Usable face 13.2H x 8.14W

Features:

UNIVERSAL HELM FIXING

Fits pedestal rails from 25mm to 33.7mm (0.98″ – 1.33″) diameter. Using a unique clamping system, the Deep Pod's can fit rail widths from 178mm (7”) upwards.*

SECURE & WATERTIGHT INSTALL

Saddle system supports the stainless tubing enabling a secure and rigid fit onto any pedestal and also ensures a watertight seal at cable entry.

NO DRILL FIXING KIT

Customised U-bolts fit around rail and through the saddles into the back of the pod eliminating the need for time consuming and awkward drilling of the stainless rail.

HASSLE FREE INSTALL & SERVICE

Fixings fit from back to front cutting their threads into injection moulded ABS inserts designed into the Pod front. This design allows for a quick and safe install and repeat servicing.

INCREASED PROTECTION

Pod seal is manufactured from a high tear strength silicone, it has a very high resistance to heat and UV so you can have confidence that it won’t deteriorate over time.

SUPPLIED UNCUT

As standard you will receive your Scanpod uncut. For larger orders, a factory cutting service is available.

Specifications:

• Usable Face: 13.2"W x 8.14"H
• Mounting Style: Pedestal
• Cut/Uncut: Uncut
• Box Dimensions: 8"H x 10"W x 15"L WT: 5.5 lbs
• UPC: 5060114797277

Camera Plate 1 for FLIR M-Series Cameras & Searchlights

The Modular Dual PowerTower has been designed to allow your open array, radar, Satcom and camera to be mounted together in one single space-saving modular installation.

• Camera plate 1 (FLIR M-Series Cameras and searchlights)

Specifications:

• Construction: Powder Coated Aluminum
• Type: Adapters
• Box Dimensions: 5"H x 7"W x 8"L WT: 1.25 lbs
