Boat Outfitting

MKA-21 Composite Quick Release Bracket

Easily remove your electric-steer, bow-mount trolling motor. High-yield composite construction is super strong and impervious to corrosion. Low-profile design leaves deck clear when motor is removed. Locking handle with stainless steel pins can be secured with padlock (padlock not included, sold separately).NOTE: Not for use with 72" shaft length motors.

Features

• Allows trolling motor to be quickly removed from and reattached to boat deck
• Low-profile design attaches trolling motor to top bracket and drops in over deck-mounted puck
• Composite construction resistant to rust, corrosion, and discoloration
• Includes stainless steel mounting hardware and locking pin
• Locking handle can be secured with padlock (not included) for additional security
• Compatible with Ulterra, Terrova, PowerDrive, PowerDrive V2, PowerDrive Pontoon and Deckhand 40

  NOTE: Not for use with any 112 lbs. thrust motors or any motor with a shaft length of 72” or longer. Instead use the MKA-53 model.

  Designed for use in freshwater

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

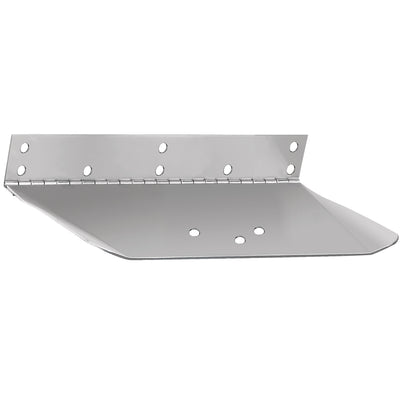

Standard 12" x 12" Single - 12 Gauge Replacement Blade

• Gauge:12

• Anode: No

• Back Plate: No

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Delrin Mounting Pin for 101 & 102 Actuator (1.5") - Pack of 2.

Specifications

• Lenco Part #: 15087-001 (Pack of Two)
• System Type: Single or Dual Actuator
• Compatibility: Any Boat

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

102 XD Actuator- 12 Volt- 4-1/2  Stroke with Mounting Hardware

The 102 XD Actuator is used with Trolling Tab systems sold after 2000 and OEM applications. 4.25 stroke. Overall length (tip to tip) is 13 inches. Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.

Specifications:

• Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
• Stronger top cap and mounting clevis design
• Improved pressure-tight torx screws
• Integrated wiper seal at actuator base
• Molded-in brass thrust bearing design
• Thicker and stronger motor housing wall
• Improved O-Ring design for more consistent seal
• Over-molded cable providing a stronger tighter seal
• Upper mounting bracket with gland seal

Features:

• Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
• Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
• Lenco Actuator connections use waterproof "Plug & Play" Deutsch connectors eliminating the possibility of water intrusion.
• 12 Volt
• 5/16" mounting hardware
• 6 foot cable

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Quick Guide (pdf)

Standard 9" x 9" Single - 12 Gauge Replacement Blade

• Gauge: 12

• Anode:No

• Back Plate:No

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

PT3010 Base Wedge f/PowerTower® Radar Mounts - 4°

Enhance the performance of your radome with our tough, marine-grade, UV stable wedge that angles the radar down 4° below horizontal to provide a level horizon for your radar when the boat is underway.

Compatible with:

• Composite and Aluminum PowerTower®

Features:

• Enhance the performance of your radome with the Universal Scanstrut 4° radar base wedge
• 4° Base Wedge for mounting under PowerTower®
• A tough, marine-grade, UV stable wedge
• Compatible with radomes from most radar manufacturers

Technical Specifications:

• Material - Marine grade Polymer
• Dimensions (L x W ) - 8" x 8"
• Angle - 4°

In the Box:

• Wedge
• Base seal
• Instruction manual

*Sold as an Individual

Specifications:

• Construction: Polymer
• Type: Wedges
• Height: N/A
• Box Dimensions: 1"H x 8"W x 8"L WT: 1 lbs
• UPC: 5060114790438

Quick Guide (pdf)

MKR-US2-11 Universal Sonar 2 Extension Cable
Model:#1852080

Extension cable allows for an additional 10ft length. Universal Sonar 2 delivers advanced water temperature sensing and DualBeam PLUS technology for the best view of the waters below. These adapters connect your trolling motor to your favorite brand of sonar or fishfinder with IP-68-rated waterproof connectors. (200 kHz and 200/83 kHz DualBeam PLUS™ compatible).

14-1/2' Universal Sonar 2 extension cable for use with all accessory adapter plugs

Brochure (pdf)

12" x 12" Standard Performance Trim Tab Kit w/o Switch Kit- 12V

Upgraded electro-polished trim blades with stouter 1/4" diameter hinge pin make these Performance Trim Tab Kits a cut above the base level Lenco Standard Mount Kits. Equipped with the same fast response electric actuators for precise control. Fully submersible with all Plug & Play Deutsch connections. Blades are Electro-Polished 12 gauge - 304 SS with 1" turned up edges (the 16" x 12" and the 18" x 14" have an 85 degree inside taper) and 1/4" diameter hinge pin. Kit includes Standard Actuators with 5/16" SS bolts. The actuators mount at the trailing edge of the blades

Kit Contents:

• 2 each of 12-gauge stainless steel Electro-Polished trim tab blades
• 2 each of #15054-001 actuators with 6' lead and Deutsch plugs
• 2 each of #30133-103 20' actuator extension wiring harnesses
• 2 each of #15085-001 (#116) upper mounting bracket with gland seal
• 2 each of #50014-001 (#119) lower mounting bracket
• 1 each of the Lenco owner’s / installation manual
• All necessary stainless steel mounting hardware

Specifications:

• Suggested Boat Length: 18' to 32'
• Length of Tab: 12"
• Width of Tab: 12"
• Minimum Transom Height: 11"
• Blades: 12 Gauge Stainless Steel
• Finish: Electro-Polished
• Switch Kit: Sold Separately
• Class: Fuel Efficient
• Compliance: CE Certified
• Compatibility: Any Boat
• Actuators: 12-volt

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Brochure (pdf)

In case of power failure, this bracket allows you to pull the hatch open 4" in order to remove pull pin for access.
Includes Attaching Hardware

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

7 Degree Mounting Shim

For Upper # 50015-001D(118) & Lower # 50014-001D(119) Mounting Bracket.

Specifications

• Lenco Part #: 50015-002D
• System Type: Single or Dual Actuator
• Compatibility: Any Boat

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

SC50 Adjustable Wedge for Satcom Mounts

Designed to work with Scanstrut satcom mounts, you can quickly and easily provide a level mounting surface on any boat.

Satcom antennas require a horizontal mounting surface to function correctly.  Finding this on any powerboat is often difficult.  This satcom wedge, eradicates this problem by providing a level mounting surface on slopes from 0° to 12°.

Compatible with:

• SC35, SC45, SC45R and SC65 satcom mount

Features:

• Ingenious yet simple – simply counter-rotate the angled discs until the top surface is horizontal
• A channel system inside the discs allows un-restricted positioning of the antenna mounting bolts
• 4 pairs of 6° angled washers provide a level fastening surface for the antenna mounting bolts
• Watertight base seals fitted

Technical Specifications:

• Material - Marine grade polymer

In the Box:

• Counter-rotating angled discs 0° to 12° x 2
• 6° angled washers x 4
• Mount seal
• Instruction manual

*Sold as an Individual



Specifications:

• Construction: Polymer
• Type: Wedges
• Height: N/A
• Box Dimensions: 2"H x 8"W x 9"L WT: 1.45 lbs
• UPC: 5060114790506

Quick Guide (pdf)

9" x 9" Edge Mount Trim Tab Kit without Switch Kit -12V

Lenco Electric Edge Mount Trim Tab Kits make your boat ride smoother, dryer, faster and with increased safety whether on a small skiff or a large yacht. The Lenco ball screw design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections. Edge Mount actuators mount at the trailing edge of the plane, requiring 4" (10.16 cm) less transom height than Lenco standard mount trim tabs.

Kit Contents:

• 2 each of 12-gauge stainless steel trim tab blades
• 2 each of #15054-001 actuator with 6' leads & Deutsch plugs
• 2 each of #30133-103 20' actuator extension wiring harnesses
• 2 each of #15085-001 (116) upper mounting brackets with gland seal
• 2 each of #50014-001 (119) lower mounting brackets
• 1 each of the Lenco owner’s / installation manual
• All necessary stainless steel mounting hardware

Specifications:

• Suggested Boat Length: 14' to 18'
• Length of Tab: 9"
• Width of Tab: 9"
• Hinge Height: 2"
• Minimum Transom Height: 13.5"
• Blades: 12 Gauge Stainless Steel
• Finish: Smooth
• Switch Kit: Sold Separately
• Class: Fuel Efficient
• Compliance: CE Certified
• Compatibility: Any Boat
• Actuators: 12-volt

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Brochure (pdf)

Heavy Duty Performance Trim Tabs


Fast response electric actuators for precise control. Fully submersible. All Plug & Play Deutsch connections. Blades are Electro-Polished 12 Gauge - 304 SS with 1" turned up edges, 85 degree inside taper, and 1/4" diameter hinge pin. Extreme Duty actuators with 5/16" SS bolts. Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets, and 3.75" sacrificial anodes.

We make the best boats better!™

Running wide open in rough seas isn't for the faint of heart. Aggressive boating requires durable boat accessories. Lenco's HD series of trim tabs are built to handle whatever you or Mother Nature might throw at them. Everything about your boat is designed to go hard and fast. Why should your trim tab system be any different?

• All stainless steel construction (no dissimilar metals), Electro-Polished Blades for long lasting good looks

• Actuator speed is precise and controllable so there are no surprises at top speeds

• Models have massive backplates and adjustable mounting channels with thru-bolted actuators for the ultimate in strength and reliability

• Models use solid stainless steel billet rams that are chemically polished for unsurpassed durability

Actuators

• Instant response

• Fully submersible, maintenance-free and sealed for life

• High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case

• 5/16" stainless steel bolts

Standard Solid State Tactile Switch Kits with Retractor Feature
#15069-001 (124SSR)
For 12-volt single actuator systems. Control box is waterproof, self-contained, sealed, solid state, Deutsch connected for easy Plug & Play installation, and features built-in retractor. Kit includes 36" power pigtail and nylon nuts for mounting keypad. Colorful display box.

Features

• Built-In Retractor Feature

• Solid State Electronics

• Plug & Play

• Low Profile Design

• Self-Contained, sealed keypad & solid state control box with waterproof connectors

• Simple, Quick Installation

• Includes 36" power pigtail for control box

• 2" hole cut-out size, overall size 2.75" x 2.75'

Each kit contains:

• Standard Tactile Switch Kit

  2 actuators wth 6' Lead and Deutsch Plugs

  • 2 12 Gauge SS Electro-Polished trim tab planes

  • 2 20' Actuator Extension Wiring Harnesses

  • Boat-Mounting Hardware supplied by customer

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
  Brochure (pdf)

Weedless Wedge™ 2 Props (MKP-32)

• Minn Kota®s exclusive prop is the only of its kind that is 100 percent weedless.

• Unique design features swept-back and flared blades to "wedge" weeds away while conserving battery power.

• Moves through heavy vegetation, even at slow speeds.

Motor Diameter:   3 - 5 / 8"
Prop Nut Kit:        "A"

Compatible with Motor Models With Serial Number Prefix "WW"

55AT, 55AT/H, 70AT, TERROVA 55, TERROVA 55/US2, TERROVA 55/AP, TERROVA 55/AP/US2, MAX 55/SC, MAX 55, MAX 55/SC/H, MAX 70, MAX 70/H/3X,
MAX 70/SC, MAX 70/SC/H, MAX 70/US, MAX 55T, MAX 70T, 50PD v2, 55PD v2, 55PD V2/US2, 55PD V2/AP, 55PD V2/AP/US2, 65PD V2, 70PD V2, 70PD V2/AP ,
70PD V2/AP/US2, 54PD V2 pontoon, 68PD V2 pontoon, 55HC pontoon, 70HC pontoon, 50PD, 55PD/AP, 55PD/AP/US, 55PD/US, 65PD, 70PD, 70PD/AP, 70PD/US, 70PD/AP/US, VECTOR 46, VECTOR 55, VECTOR 55/3X, VECTOR 70, VECTOR 70/3X, EDGE 45, EDGE 55, EDGE 55/H, EDGE 70, ENDURA 46, ENDURA 50, ENDURA 55, ENDURA PRO 46, ENDURA PRO 55, CAMO 55XL, RT 55/ST/CP , RT 55/ST/CP/AP, RT 55/SP/CP, RT 55/SP/CP/AP, RT 70/SP/CP, RT 70/SP/CP/AP, RT 55/SM /L&D, RT 55/SM/L&D/SC, RT 55/SM/L&D/3X, RT 55/SM/BG/3X, RT 70/SM/L&D/SC , RT 55/SE/L&D, RT 70/SE/L&D, RT 55/B/H, RT55/B/SC/L&D, RT55/B/L&D/3X, RT55/B/3X, RT65/B/SC, RT65/B/SC/L&D/3X, RT 70/B/H, RT 70/SC, RT50/S, RT55/S, MK55EM, RT 55EM, TRAXXIS 70, TRAXXIS 55, TRAXXIS 55/SC

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Brochure (pdf)

Weedless Wedge™ Props (MKP-7)

• The only 100% fully weedless prop.

• Design pushes weeds away to conserve battery power.

• Easily moves through heavy vegetation or cover, even at slow speeds.

Motor Diameter:   3 - 5 / 8"
Prop Nut Kit:        "A"

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Brochure (pdf)

Prop & Nut Kits "A" (MKP-9)

• Easy-to-use kit that allows for fast removal/replacement of prop.

• Available in three different sizes to fit Minn Kota® prop dimensions (3/8", 1/2" and 5/16").

• Includes prop nut and washer.

• Requires a crescent wrench for installation.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Brochure (pdf)

Prop & Nut Kits "B" (MKP-10)

• Easy-to-use kit that allows for fast removal/replacement of prop.

• Available in three different sizes to fit Minn Kota® prop dimensions (3/8", 1/2" and 5/16").

• Includes prop nut and washer.

• Requires a crescent wrench for installation.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Brochure (pdf)

Weedless Wedge™ 2 Props (MKP-33)

• Minn Kota®s exclusive prop is the only of its kind that is 100 percent weedless.

• Unique design features swept-back and flared blades to "wedge" weeds away while conserving battery power.

• Moves through heavy vegetation, even at slow speeds.

Motor Diameter:   4"
Prop Nut Kit:        "E"

Fits Motor Models With Serial Number Prefix "WW"

TERROVA 80, TERROVA 80/US2, TERROVA 80/AP, TERROVA 80/AP/US2, TERROVA 101, TERROVA 101/US2, TERROVA 101/AP, TERROVA 101/AP/US2, MAX 80, MAX 80/BG /US2, MAX 80/US, MAX 80/H/3X, MAX 101, MAX 101/US, MAX 101/h, MAX 101/H/3X, MAX PRO 80, MAX PRO 80/BG /US2, MAX PRO 80/US, MAX PRO 101, MAX PRO 101/BG /US2, MAX PRO 101/US, MAX 80T, MAX 80/H, 80PD, 80PD/AP, 80PD/US, 80PD/AP/US, VECTOR 80/3X, VECTOR 101/3X, VANTAGE 80, VANTAGE 101, RT80/ST /CP, RT80/ST/CP/AP, RT101/ST/CP/AP, RT PRO 80, RT PRO 101, RT80/SM/L&D, RT80/SM/BG, RT80SM/BG/3X, RT80/SM/L&D/3X, RT101/SM/BG, RT101/SM/BG/3X, RT80/B, RT80/B/L&D, RT80/B/3X, RT80/B/L&D/3X, RT80/S, RT80/S/3X, RT101/B, RT101/B/3X, RT 101/S, RT101/S/3X, RT80/AP, MK80EM, MK101EM, MK160EM, MK202EM, RT 80EM, RT 101EM, RT 160EM, RT 202EM, RT101/SF, RT80/SF, FORTREX 101/US2, FORTREX 101, FORTREX 80/US2, FORTREX 80, TRAXXIS 80

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Brochure (pdf)

PART #:	GP1040
Description:	Uncut (usable face = 17.5"w x 7.375"h)
W x H x D:	20.25" x 9.5" x 6.125"

NavPod Protects Your Electronics In Harsh Conditions

Un-Cut NavPods are for you to choose your own layout or for mounting electronics that NavPod doesn't provide a Pre-Cut for. The face of the NavPod can easily be cut with a "Rotozip". It's a small handheld router style cutter that shreds the material while cutting. This eliminates any melting of the plastic material. It is also important to note that when selecting a possible Un-cut NavPod, the depth measurement stated in the chart is overall outside measurement. Actual internal clearance can be reduced by curvature from the design or molded indents for the mounting system. This can reduce the overall and needs to be considered when making a determination of actual available depth clearance.

Watertight Silicone Seal
Keeps rain and salt water spray off electrical connections on the back of electronics

Tamperproof
Special fasteners and wrench are included that provide security and convenience to leave electronics on-board

Concealed Wiring
No loose wires are exposed to corrosion and UV damage

Clean Installation
The clean look of flush mounting. Mount your display where you can best see and reach it.

Pre-Cut Models
Come with a Flush Mount Kit, which includes the specific gasket and mounting hardware for your electronics if not supplied by manufacturer with unit.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Usable Face: 17.5"W x 7.35"H
• Mounting Style: Pedestal
• Cut/Uncut: Uncut
• Box Dimensions: 8"H x 12"W x 23"L WT: 6.9 lbs
• UPC: 659988102574

Bennett Trim Tabs are designed and manufactured with pride at the Bennett Marine plant in Deerfield Beach, Florida. Every Bennett system carries with it an accumulation of nearly 40 years of research, development, and testing and is designed to provide years of dependable service.

Every trim tab is sheared and bent, not welded. Welding alters the properties of stainless steel which invites corrosion. Bennett actuators feature through-hull hydraulics. There are no vulnerable external hoses to decay. Plus, every Hydraulic Power Unit is tested by both person and computer to insure this reliable unit deflects the trim tabs, holds firmly during use, and retracts smoothly.

Sport Tabs

Backed by nearly 40 years of trim tab

experience, Bennett Sport Tabs are

engineered for the demands of offshore

attitude correction. Performance boats that

are run at speeds of 60 mph require the

rugged construction  of

Sport Tabs. Manufactured with heavy gauge

reinforced stainless steel and powerful dual

hydraulic actuators, Sport Tabs combine

strength, durability, and good looks to achieve your boat's maximum potential.

Items included in set :

• (2) Trim plane assemblies
• (2-4) Hydraulic actuators (A1101ARC)
• (1) Hydraulic power unit (V351HPU1)
• Hydraulic tubing and hardware
• Rocker switch

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Construction: Stainless Steel
• Actuator Type: Hydraulic
• Box Dimensions: 6"H x 14"W x 27"L WT: 28 lbs
• UPC: 666285145005

Quick Guide (pdf)
Owner's Manual (pdf)

Solenoid valves direct the flow of fluid to the actuators. The solenoid valves lock tightly to secure the tabs in place.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Actuator Lower Hinge Pin

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Hydraulic Tubing - 20 foot coil

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Euro-Style Rocker Switch Control

This control is ergonomically designed, water resistant and provides a positive "click" when the trim tabs are engaged. Its lockout feature prevents user from pressing down on opposite directions at the same time. The control is easy to install, fitting into any existing Bennett 2 1/2-inch Rocker Switch hole.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Upper Hinge

Bennett's A1103 Upper Hinge of the A1101 Actuator Assembly. Fluid throws through the upper hinge at the top of the actuator - thus eliminating external hoses subject to damange.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

12" x 16" Sport Tab System

Bennett Trim Tabs are designed and manufactured with pride at the Bennett Marine plant in Deerfield Beach, Florida. Every Bennett system carries with it an accumulation of nearly 40 years of research, development, and testing and is designed to provide years of dependable service.

Every trim tab is sheared and bent, not welded. Welding alters the properties of stainless steel which invites corrosion. Bennett actuators feature through-hull hydraulics. There are no vulnerable external hoses to decay. Plus, every Hydraulic Power Unit is tested by both person and computer to insure this reliable unit deflects the trim tabs, holds firmly during use, and retracts smoothly.

Sport Tabs

Backed by nearly 40 years of trim tab experience, Bennett Sport Tabs are engineered for the demands of offshore attitude correction. Performance boats that are run at speeds of 60 mph require the rugged construction  of Sport Tabs. Manufactured with heavy gauge reinforced stainless steel and powerful dual hydraulic actuators, Sport Tabs combine strength, durability, and good looks to achieve your boat's maximum potential.

ST16 Sport Tab System consists of:

• (2) Trim Tabs
• (4) Actuators
• (1) Hydraulic Pump
• (1) ES2000 Rocker Switch
• Wiring harness & Tubing

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Construction: Stainless Steel
• Actuator Type: Hydraulic
• Box Dimensions: 5"H x 15"W x 25"L WT: 34 lbs
• UPC: 666285146002

Quick Guide (pdf)
Owner's Manual (pdf)

Hydraulic Power Unit

A compact powerhouse that creates hydraulic pressure to lower and raise the trim tabs. It employs two solenoid valves to direct the flow of fluid to the actuators. The solenoid valves lock tightly to secure the tabs in place. Strength to lower and hold even the largest tabs in place. Lexan cover protects electrohydraulic unit from occasional wash down and translucent reservoir allows fluid check at a glance.

Measures 4" x 7 1/2" x 5 1/2". Uses automatic transmission fluid. Includes pump, solenoid valves, reservoir and cover.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Quick Guide (pdf)
Owner's Manual (pdf)

Bennett actuators are strong but flexible nylon/fiberglass hydraulic cylinders. The piston-like arms push tabs into position. Fluid flows through a concealed hole in the upper hinge at the top of the actuator - thus eliminating external hoses subject to damage.

A1200S is designed for installations where space is limited.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Owner's Manual (pdf)

Solenoid valves direct the flow of fluid to the actuators. The solenoid valves lock tightly to secure the tabs in place.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Hydraulic Power Unit

A compact powerhouse that creates hydraulic pressure to lower and raise the trim tabs. It employs two solenoid valves to direct the flow of fluid to the actuators. The solenoid valves lock tightly to secure the tabs in place. Strength to lower and hold even the largest tabs in place. Lexan cover protects electrohydraulic unit from occasional wash down and translucent reservoir allows fluid check at a glance. Installs easily with sturdy mounting bracket.

Measures 4" x 7 1/2" x 5 1/2". Uses automatic transmission fluid. Includes pump, solenoid valves, reservoir and cover.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Quick Guide (pdf)
Owner's Manual (pdf)

Actuator Assembly - 13.75" Closed Length

Actuator assembly is complete hydraulic cylinder. Piston-like strong arm that pushes tab into position. Sophisticated plastic resin body. Nylon upper hinge. Bends 5° in actual use. Fluid flows through concealed hole in upper hinge thus eliminating external hoses subject to damage. Hearty and flexible enough to demands of offshore use. For use with Bennett standard trim tabs only.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Owner's Manual (pdf)

Euro-Style Rocker Switch Control

This control is ergonomically designed, water resistant and provides a positive "click" when the trim tabs are engaged. Its lockout feature prevents user from pressing down on opposite directions at the same time. The control is easy to install, fitting into any existing Bennett 2 1/2-inch Rocker Switch hole.

Bridge control comes with a 20' wire

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Features:

Wiring

• Color-coded wiring in 25' to 40' lengths with quick connects fittings, meets federal standards for heat, pull and insulation, making installation easy.

Solenoids

• They are custom designed for Insta-Trim Boat Leveler Co., epoxy sealed and humidity resistant, thereby preventing shorting out. The solenoids lock the tabs in any position, eliminating driftback. Barb type hose fittings provide tight, secure connections.

Motor

• A powerhouse with coated wirings and a thermal overload that resists temperature and amperage build-up. 1 3/4" stack windings and top mounting eliminated oil leakage. The motor is mounted with stainless steel nuts and bolts, and is easily disassembled.

Brackets

• Swivel type brackets allow cylinders to be mounted an adjusted to any angle. Knockout pins act as shear pins it tab strikes an object.

Pump

• Designed and engineered exclusively by Instatrim. The built-in bypass is factory set at 400 P.S.I. tolerance held to .00025. Amperage doesn't exceed 16 because the unit circulates oil, rather than stalling out or trying to pump additional pressure.

Motor Cover

• 4 1/2" D x 6" W x 11"H, high impact ABS plastic cover with a built-in oil reservoir mounts easily with two screws. The filler is located in front. Our cover protects the motor from occasional wash down.

Cylinders

• Impact resistant, fiberglass reinforced nylon cylinders eliminates expansion and resists ultra-violet rays. Two expanding type seals, plus O-ring, eliminates high and low pressure leaks. Barbed cylinder fitting and an inserted tubular rod prevents hose blow-off and breakage.
  A stainless steel spring retracts the cylinder when the boat is not in motion.

Trim Tabs

• 12 gauge 304 stainless steel trim tabs are available in standard and custom lengths. They are guaranteed against electrolysis, remaining strong and secure. Insta-Trim's hinges prevent most spray and can be used for transom or bottom mounting.

Hose

• Designed and manufactured exclusively for Insta-Trim with nylon-reinforced webbing and protective PVC coating. Rated at 2000 lb. burst pressure, 15' of hose is supplied for your system. Entering the transom 6" above the water line, the hoses are held securely with hose trim.
  Stainless steel clamps hold the hose to barb fitting at the solenoid.

Rocker Type Controls

• Mounted on the dash they are easy to operate.

One pint of Insta-Trim biodegradable transmission oil, funnel and mounting hardware is supplied.

Specifications:

• Construction: Stainless Steel
• Actuator Type: Hydraulic
• Box Dimensions: 9"H x 13"W x 19"L WT: 26.2 lbs

Quick Guide (pdf)
Owner's Manual (pdf)

PART #:	TP125
Description:	Top Plate Adaptor for 1.25" AngleGuard on Edson Steering System
W x H x D:	9.5" x 9.5" x 1.25"

NavPod Protects Your Electronics In Harsh Conditions

Top Place Adaptor

NavPod AngleGuards are designed to upgrade sailboat steering systems to accommodate mounting of electronics onto NavPods.

Edson is a popular manufacturer of steering systems who has always used a 9.5" wide pedestal guard. Most of their pedestal guards are 1" in diameter. Lewmar (formally Whitlock) also has manufactured steering systems that use the 9.5" wide format. NavPod supplies the SG10 and AG10 as a easy retrofit onto either of these systems.

Because of the clean and secure method of concealing wires and the need to accommodate large connectors and heavy radar cables within the Stainless Steel tubes, NavPod recommends the larger 1.25" diameter AngleGuards. Often the existing Top Plate needs to be bored out or replaced with the TP125 to accommodate the larger diameter. NavPod supplies Polished Stainless Steel feet with all 1.25" AngleGuards.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Radio Splash Cover

The gasket-sealed lid on this splash cover prevents water entry into virtually any marine or spa stereo on the market.  Accommodates any dual post, removable and DIN-style stereos.

Contemporary styling makes it an attractive addition to the dashboard or wall.  The lid lifts easily and stays open in multiple positions to maintain partial splash protection while allowing access to radio controls.

Features:

• Designed for permanent outdoor mounting
• Waterproof design
• Stainless steel mounting hardware included

Specifications:

• Overall Dimensions: 9 1/16" x 4 3/16" x 1 15/16" (230mm x 106mm x 49mm)

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Type: Covers
• Cut/Uncut: Uncut
• Mounting Style: Surface
• Box Dimensions: 4"H x 6"W x 12"L WT: 0.7 lbs
• UPC: 731128000305

Quick Guide (pdf)
