Triple XD - NMEA 2000 - Relay/ACR/Relay with Knobs - 12 Position DT

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems.
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality

Applications:

• Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage.
• Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility.
• 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
• Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.

Specifications:

• Type: Electric
• Box Dimensions: 3"H x 4"W x 8"L WT: 2.8 lbs
• UPC: 850067590187

Single XD - NMEA 2000 - Relay with Knobs - 4 Position DT

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems.
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality

Applications:

• Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage.
• Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility.
• 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
• Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.

Specifications:

• Type: Electric
• Box Dimensions: 3"H x 4"W x 8"L WT: 1.2 lbs
• UPC: 850067590200

Dual XD Flex 2 - Relay/Relay with Knobs

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
• 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relays options available with DTM/ATM connectors, pin for pin compatible with ML Series Bi-stable Relays.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality.

Applications:

• Replaces Two Individual High Amp Relays with One Compact Module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into..
• Designed to Replicate Common Multi-Battery Switching and Charge Management Functions:  Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented.
• Multiple Automatic Charging Relay (ACR) Into One Device: For 2-3 Battery Systems that require 1 or 2 ACRs, a single three-relay ACR provides drastic improvement in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables..
• Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.

Specifications:

• Type: Electric
• Box Dimensions: 3"H x 4"W x 8"L WT: 2 lbs
• UPC: 850035199534

Dual XD Flex 2 - Relay - ACR with Knobs

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
• 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relays options available with DTM/ATM connectors, pin for pin compatible with ML Series Bi-stable Relays.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality.

Applications:

• Replaces Two Individual High Amp Relays with One Compact Module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into..
• Designed to Replicate Common Multi-Battery Switching and Charge Management Functions:  Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented.
• Multiple Automatic Charging Relay (ACR) Into One Device: For 2-3 Battery Systems that require 1 or 2 ACRs, a single three-relay ACR provides drastic improvement in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables..
• Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.

Specifications:

• Type: Electric
• Box Dimensions: 3"H x 4"W x 8"L WT: 2 lbs
• UPC: 850035199626

Dual XD - NMEA 2000 - ACR/Relay with Knobs - 8 Position DT

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems.
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality

Applications:

• Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage.
• Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility.
• 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
• Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.

Specifications:

• Type: Electric
• Box Dimensions: 3"H x 4"W x 8"L WT: 2 lbs
• UPC: 850067590194

Dual XD - NMEA 2000 - Relay/Relay with Knobs - 8 Position DT

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems.
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality

Applications:

• Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage.
• Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility.
• 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
• Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.

Specifications:

• Type: Electric
• Box Dimensions: 3"H x 4"W x 8"L WT: 2 lbs
• UPC: 850067590224

Single XD - NMEA 2000 - ACR with Knobs - 4 Position DT

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems.
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality

Applications:

• Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage.
• Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility.
• 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
• Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.

Specifications:

• Type: Electric
• Box Dimensions: 3"H x 4"W x 8"L WT: 1.2 lbs
• UPC: 850067590217

Dual XD - NMEA 2000 - ACR/ACR with Knobs - 8 Position DT

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems.
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality

Applications:

• Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage.
• Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility.
• 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
• Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.

Specifications:

• Type: Electric
• Box Dimensions: 3"H x 4"W x 8"L WT: 2 lbs
• UPC: 850067590231

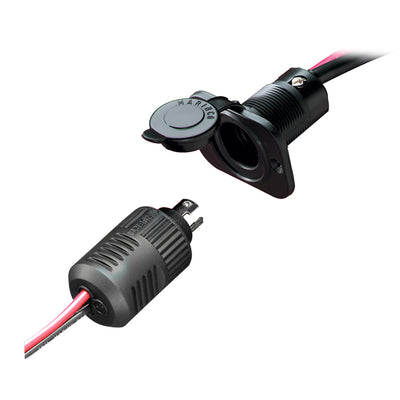

70A-Steckdose für Trolling-Motor

Erhöhte Stromstärke für moderne Trolling-Motoren.

Merkmale:

• 70 A Dauerstrom

• Versiegelte, wasserdichte Verbindung

• Integrierte Zugentlastung

• Schlüsseldesign mit Daumenabdruck-Locator

• Akzeptiert Kabel bis zu 6AWG

WARNUNG: Dieses Produkt kann Sie Chemikalien wie Di(2-ethylhexyl)phthalat (DEHP) aussetzen. Dieses ist im US-Bundesstaat Kalifornien als krebserregend, fruchtschädigend und reproduktionsschädigend bekannt. Weitere Informationen finden Sie unter P65Warnings.ca.gov .

ProNautic P Helm-Fernbedienung und Digitalanzeige
Teilenummer: 63100

Merkmale:

• Entwickelt für die Verwendung mit Batterieladegeräten der ProNauticP-Serie

• Kabellänge: 10 Meter (33 Fuß)

• Nur für den Innenbereich konzipiert

WARNUNG: Dieses Produkt kann Sie Chemikalien wie Di(2-ethylhexyl)phthalat (DEHP) aussetzen. Dieses ist im US-Bundesstaat Kalifornien als krebserregend, fruchtschädigend und reproduktionsschädigend bekannt. Weitere Informationen finden Sie unter P65Warnings.ca.gov .

Triple XD Flex Relay with Knobs

Set of three programmable relays designed for use in 12 or 24 VDC lithium battery systems. Typically the two outer devices would be set up as remote on-off switches and the middle one would be set up as an Automatic Charge Relay. The relay settings are programmable and the list of available options is optimized for lithium batteries.

Automatic Charging Relay Plus - 160A - 24V

This 160A Egis automatic charging relay eliminates dead-start batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.

Applications:

• Supports multiple engines or independent charge systems by incorporating two independent start or engine isolation inputs to allow isolation of charge sources when both are active to maximize charging performance
• Protects Electrical System Cascading Faults with an optional lock-out from closing if one terminal is connected to a battery with a shorted cell

Features:

• Ultra-low power draw compared to typical ACRs (7-10 mA) vs. the 7610 ACR @ 1.3 mA will not deplete batteries even after extended electrical system downtime.
• Simple and robust installation - integrated sealed plug eliminates corrosion; includes Deutsch/Amphenol DTM connector harness
• Start to assist input option to ensure maximum cranking amps are available by allowing manually connecting batteries via a remote switch
• Bullet-proof construction - sealed unit, stainless steel hardware, and high-temperature materials allow mounting anywhere; Integrated thermal overload shutdown protection
• Additional low-amp output can be used to report device status remotely or drive a secondary relay for charge to a battery bank without a charge source (see examples)

Specifications:

• Continuous Current Amps: 160
• Voltage Range (VDC): 16 – 36
• Off-State Current Draw (mA): 1.3
• Interrupt Current (Amps): 240
• AC Closing Voltage Range (VDC): 25.8-27.2
• AC Opening Voltage Range (VDC): 24.2-25.6

Focal Features:

Top Side Dip Switches

Accessible after mounting for programming voltage settings and determining active features. Protected by self-retained cover.

Stainless Steel Self-Locking Hardware

100% non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.

Integral I/O Connector

Sealed Molex MX-150 connector eliminates the susceptibility to corrosion and vibrating loose of 1/4" quick connect terminals on competitive products.

Connection Options

Comes standard with a Deutsch DT/AT style connector harness. Provides three connection options (MX-150, DT/AT, and wire leads).

Easy Integration with RT Fuse Blocks (24 HR Circuits)

Optional EasyLink bus bars reduce the space and cost of connecting TH Series relays with RT Series fuse blocks.

LED Diagnostics

Indicates pending relay ON/OFF, under voltage, over voltage/temp, start isolation/assist, and output on/off status.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

XD Series Triple Flex 2 Relay-ACR-Relay with Knobs & Tinned Wires

The Egis relay replaces three individual high-amp relays with one compact module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.

Applications:

• Designed to replicate common multi-battery switching and charge management functions - common dual battery load switching via the outer relays and a central automatic charging relay to share charge current are easily implemented
• Multiple automatic charging relays (ACR) into one device - for 3-4 battery systems that require 2 or 3 ACRs, a single three-relay ACR provides drastic improvements in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables.
• Expandable with link and cross-link busbars to additional dual, triple, or single XD relays - supports 3 or 4 battery systems with standard busbar interconnect accessories.

Features:

• Bullet-proof construction - sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere; stainless steel cable lug studs; large mounting holes accept 1/4-20 / M6 attachment hardware
• Intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions)
• Simple programming via simple dip switches allows each relay function significant flexibility for OEMs and installers.
• 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts
• Plug and play compatible with legacy competitor products - single, dual, and triple relay options are available with DTM/ATM connector pins compatible with ML Series bi-stable relays
• 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality

Specifications:

• Total Continuous Current Amps: 500
• Max Cranking Current (Amps): 1500
• Mechanical Switching Life: 1,000,000 Cycles
• Voltage Range (VDC): 8-36
• Off-State Current Draw (mA): 1.3
• State Change Current: 5A @ 12 VDC; 3A @ 24 VDC

Focal Features:

Led Status Display

The easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED.

3-Position Manual override

Force each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition.

40 Circuit Label Sheet Included

Convenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications.

Protective Cover included

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

Stainless Hardware

Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.

Programmable

Via dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications.

Smaller Footprint

XD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum.

Integrated Vent

High-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

XD Relay Link Busbar

This tin-plated copper is to ensure reliable circuit connectivity and an anti-corrosive feature that will keep it long-lasting.

Applications

Link Together XD Single, Dual, and Triple XD relays to each other in multiple configurations and even to Egis's 8700 Mechanical Disconnect. Linking relays together creates compact installations and allows for robust circuit switching and battery management.

Features:

• Great electrical conductivity with anti-corrosion tin plating keeps connections reliable
• This bus bar is tough and built to withstand high amperage loads and resist deformation from nut-tightening
• Save install space by linking XD Relays together for even more capability and maintain a professional-looking install

Specifications:

• Continuous Current (Amps): 500
• Max Voltage (VDC): 72
• Material: Tin-plated copper
• Size (L x W): 47.8mm x 22.8mm
• Thickness: 2.8mm (1/8”)
• Terminal Stud Hole Size: 10.5mm (3/8”)

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Relay 12V, 75A

This 12V, 75-amp relay is great for automotive applications. Bi-furcated contacts ensure long-term reliability and increased operating efficiency.

Applications:

• Bi-furcated contact reduces contact bounce and increases long-term reliability. This enables the relay to conduct electrical switching more efficiently, reducing unnecessary heat buildup and contact wear.
• The high intermittent amperage rating of 150 amps for up to 3 seconds, makes this relay great for temporary high-equipment start-up amp draw applications.
• Offset input/output terminals and an integrated divider design help prevent accidental contact shorts
• A high-temperature rating of 125 degrees C/257 degrees F makes this a great relay for high-temperature installation environments like engine bays and other low-ventilation spaces.

Features:

• Bullet-proof construction - Robust automotive grade relay with IP54 ingress protection and reinforced mounting tabs ensure secure mounting
• Dual mounting holes on either side for easy mounting with ¼-20”/M6 1.25 bolts or screws up to #14 screw
• Incorporate the highest quality materials for superior performance and have a high 100,000 electrical switching cycle capacity
• Enhanced vibration and shock protection ensures enhanced reliability, a long service life, and the operational readiness of the electrical system

Specifications:

• Intermittent Current @ 3 SEC (Amps): 150
• Ambient Temp. Rating (Low/High) (Celsius): -50/125 C
• Max Continuous Current (Amps): 75 @23 degrees C
• Electrical Endurance Rating (Cycles): 100,000
• Initial Contact Resistance (6VDC) 50 mOhm
• Operating Voltage Range: 8.8-16VDC

Focal Features:

Long-Term Reliability

Built from high-quality materials, this relay offers superior electrical switching performance for long-term use in applications.

Locking Hardware

Zinc-plated M5-size input/output terminal screws with held-in-place nuts keep connections secure and allow easy tightening of wire terminations.

Automotive Grade

Wide operational temperature ratings and shock/vibration resistance make this a great relay for an automotive electrical system. Meets or exceeds IEC 60068-2-27 and IEC 60068-2-6, IP54, and IEC 60068-2-2 ratings.

Varied Fastener Sizes

6mm x 8.7mm elongated holes accommodate up to 1/4-20" or M6x1.25 bolts or up to #14/1/4" sized screws and allow for centering adjustment when installing relays.

Reinforced Mounting

Robust mounting tabs with strengthening gussets ensure the relay stays mounted securely, even through vibration, heat, and wire tension.

Compact Size

A small mounting footprint is great for confined installation spaces where space is at a premium.

Flat Blade Connectors

Shielded dual 6.3 x.03 mm flat male terminal connectors allow for quick, secure, and easy control wire connections.

Offset Terminals

Integrated divider tab design and varied mounting height input/output pads protect accidental contact shorts.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

50' RJ12-6-Kabel für Freedom Remote Panel optional

Xantrex 50'-Fernbedienungskabel für Prowatt SW-Fernbedienung

• Zur Verwendung mit der ProWatt-Serie
• 50 Fuß Länge, ersetzt 25 Fuß langes Kabel, das mit dem Gerät geliefert wurde
• Enthält Anschlüsse

WARNUNG: Dieses Produkt kann Sie Chemikalien wie Diisononylphthalat (DINP) aussetzen, das im US-Bundesstaat Kalifornien als krebserregend bekannt ist, sowie Diisodecylphthalat (DIDP), das im US-Bundesstaat Kalifornien als fortpflanzungsschädigend bekannt ist. Weitere Informationen finden Sie unter P65Warnings.ca.gov .

USB 3.0 & USB-C Power Socket without Light

This USB 3.0 & USB-C power socket charges two devices simultaneously. When split, the total 6A output is 3A per side. USB 3.0 features Quick Charging (QC) for supported devices, giving enough power to charge phones, pads, and tablets quickly and efficiently. USB-C features Power Delivery (PD) for faster and more flexible charging.

Features:

• A protective dust cap covers the ports when not in use
• Constructed of injection-molded nylon
• Easy installation requires drilling a 1-1/8" hole, inserting the socket body, tightening the locking nut, and connecting the wires
• USB 3.0 Watts:
• Non-illuminated
• IP65 rating
• CE and RoHS compliant

Specifications:

• Outer Diameter (inch): 1-7/16"
• Inner Diameter (inch): 1-1/8"
• Length (inch): 1-1/2
• Volts: 8-32
• Total Output: 5V/6A
• USCB-C Watts: 60W @ 24V
• USB-A Watts: 36W @ 12V
• Weight: 0.08 lb.
• Color: Black

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Rainbow Display Digital Voltmeter - Injection Molded Nylon - 5V-15VDC

The Rainbow Display Digital Voltmeter gives the user quick, visual, color-coded voltage information. Red/orange means the voltage is too low. Green means the voltage is normal. The same compact round size as a standard 12VDC receptacle, this voltmeter supports many installation options. Constructed of injection-molded nylon. Rainbow LED display. For use with 12VDC systems. IP65 rating.

Specifications:

• Volts: 5-15

SAE Power Cable Inline Fuse Holder

This SAE type polarized electrical connector is a two-prong plug and socket connector set. This connector features an ATO/ATC inline fuse holder (fuse not included).

Features:

• 14-gauge duplex wire
• ATO/ATC inline fuse holder (fuse not included)

Specifications:

• Length: 12 in.
• Volts: 12-24
• Max Amps: 20A @ 12V
• Wire Gauge: 14 AWM
• Weight: 0.15 lb.

Specifications:

• Type: Cables
• Box Dimensions: 1"H x 5"W x 9"L WT: 0.2 lbs
• UPC: 035514432795

Trolling Motor Power Plug

Use this to add a 70A power plug to a Force® trolling motor.

Compatible Devices:

• Force® Kraken trolling motor
• Force® trolling motor

Mercury/Mariner Outboard Relay with Shroud & Grommet

Mercury/Mariner outboard relay that will fit Mercury & Mariner Outboards. 12 Volt, 30 Amp

Replaces:

Mercury Marine 828151
Mercury Marine 828151A1
Mercury Marine 882751A1

*ARCO Assurance 12-month part and labor warranty protection

Specifications:

• Type: Parts
• Box Dimensions: 1"H x 1"W x 3"L WT: 0.3 lbs
• UPC: 693006009575

BF32 Female Connector/Gasket Kit

This SmartPlug service kit provides electrical components, hardware and gaskets.

Compatible With:

• BF32 SmartPlug

Features:

• Ease of Use – Easily replaces missing or damaged pieces
• Interchangeable with SmartPlug Connectors

*Sold as an Individual

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Type: Parts
• Box Dimensions: 4"H x 5"W x 6"L WT: 0.5 lbs
• UPC: 682500440403

VE. Direct to USB Interface

The VE.Direct to USB interface connects products with a VE.Direct connection to devices with a USB port, for example a computer. With this cable it is also possible to connect more than two VE.Direct products to a single CCGX.

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Flip Pro Plus Fast Charge USB-A & USB-C Socket

The revolutionary ultra-fast combination USB A & USB C charger.

Flip Pro Plus is designed for use with either a 12V or 24V input and features 1x 60W USB-C and 1x36W USB-A charging ports for maximum choice and performance. Juggling different devices with different cables? Then this is the option.

Features:

• 12/24V fast charge, dual USB socket
• Redesign to match other Flip Pro aesthetics
• Low profile
• Type A/C dual USB charger

The Flip Pro Plus is a combination of Scanstrut's most sought-after chargers, designed to be used with either a 12V or 24V input, and features 1x USB-A and 1x USB-C to create a rapid, universal, ultra-fast charging solution.

The Flip Pro Plus is a redesign of Scanstrut’s classic Flip Pro to ensure the boat's aesthetics stay aligned with Scanstrut's other designs in the Flip Pro range.  When not in use, the spring-loaded caps remain tightly closed, protecting the ports from the elements.

Featuring a super-compact footprint that matches the rest of Scanstrut’s Flip Pro range, it is constructed from premium, marine-grade materials. Flip Pro Plus has been rigorously tested and is IPX4 waterproof, making it completely washdown-ready.

Flip Pro Plus is FAST! It will charge at 36W on a 12V system or up to 60W on a 24V. With a PD chip, this charger is truly universal, making it perfect for charging modern laptops via the USB-C port. It is also designed for charging large tablets, offering an effortless charge for both an iPad Pro & iPhone at the same time.

USB – C output:

• 60W max on 24V system
• 36W max on 12V system

USB-A – A output:

• 36W max

The install cut-out matches Scanstrut's Flip Pro Max, Duo, and Multi USB sockets (32mm (1 1/8”) for a seamless look across the range. Now users can keep up with the heavier power draws of modern electronic devices while keeping premium, universal USB chargers all around the boat.

Universal

• Universal fit for any USB-A or USB-C connectors
• Fast charge up to 2 devices at a time
• Easy Install, using a standard USB mounting hole - 32mm (1 1/8”)

Is supplied with an optional front mount bezel

• Washdown Proof
• IPX4 waterproof with the cover closed

Marine Ready

• PCB /or electronic with a protective coating
• UV resistant Plastics
• 316 stainless hinge and spring

Electrical Information

• Input voltage: 10-30V DC (12/24V System)
• Input current Max: 6A (10A fuse recommended)
• Standby power draw: 0.01W

Important information

The charge cable supplied with the device (tablet, phone, action camera, etc) must be used to achieve maximum charge performance from this charger. Phones will charge at the same speed, whether on a 12V or 24V input voltage system. However, a 24V system must be used to get the full 60W output suitable for fast-charging laptops.

Specifications:

• Type: Chargers
• Box Dimensions: 3"H x 4"W x 4"L WT: 0.2 lbs
• UPC: 5060114798878

ROKK 10W Wireless Active Charging Cradle for Phone

The IPX6 waterproof 12/24V Qi certified waterproof wireless charging range enables wireless charging for the outdoor environment, without the need for phone charging cables.  Designed from the ground up, this is the world’s first waterproof wireless charge system created specifically for use onboard. The unique technology is housed in an IPX6, fully encapsulated and sealed unit.

The simple one-handed operation allows you to dock your phone easily and instantly start charging, perfect for boat consoles or any vehicle working outside in the elements.  No connection is needed.

The high-grip, self-aligning jaws ensure your phone is held tightly and in the optimum charging position every time.

Featuring Qi-certified wireless charging technology and a “Smart” LED that indicates when your phone is charging.  Throw in foreign object detection and thermal cut-off and you’re guaranteed safe, reliable charging in all environments.

Compatible with wireless charging-enabled phones of all sizes from all major brands including Samsung, Apple, and many more.  Charging is also possible through non-metallic, waterproof cases.

Our new upgraded 10W chargers are up to 60% faster and have been designed for the latest generation of power-hungry devices and apps.

Our improvements don’t just stop there, now featuring easier phone alignment with a larger charging area, and electrical componentry that has been enhanced to significantly improve your phone's charge times, even in the harshest outdoor environments.

With the same great look, ROKK Wireless is tried and tested in all corners of the globe in all weathers, and conditions.

Case Compatibility:

• ROKK wireless is designed to work with most slimline phone cases up to .11" (3mm)

Features:

• Installation is simple on any boat, RV, ATV or outdoor location.  Four screws secure the unit onto any flat surface with a simple installation guide and drilling template.  A waterproof cable pass-through completes the IPX6 sealed installation.
• Compatible with all Qi Wirelessly charging electronics.
• Includes a “Smart” LED that indicates when your phone is charging.  Throw in foreign object detection and thermal cut-off and you’re guaranteed safe, reliable charging in all environments.

Technical Specifications:

• Input Voltage Range - 10-30V DC (12/24V system)
• Input current max - 2A
• Output Power - 10W (9V,1.1A)
• IPX6 Waterproof
• Qi-certified wireless charging
• Protection - UV Resistant
• Dimensions (W x L) - 2.9" (74mm) x 8.1" (206mm)

In the Box:

• Charger/Mount
• Instruction manual

*Sold as an Individual

Specifications:

• Type: Chargers
• Box Dimensions: 2"H x 3"W x 9"L WT: 0.6 lbs
• UPC: 5060114797932

85A Fernschalt-Dauerbetriebsmagnet

Kann mit Electro-Scan MSDs und anderen Hochstromkreisen mit Fernbedienung verwendet werden.

Merkmale:

• Dauerbetrieb, 85 A bei 12 V DC
• Intermittierende Nennleistung 750 A Schließen/100 A Öffnen, 10 Sekunden Ein, 30 Minuten Aus
• Isolierte Erde
• Stahlgehäuse, Messingbeschläge
• UL-gelistet und CE-zertifiziert
• Gleich wie Cole Hersee Teilenummer 24059

WARNUNG: Dieses Produkt kann Sie Chemikalien wie Di(2-ethylhexyl)phthalat (DEHP) aussetzen. Dieses ist im US-Bundesstaat Kalifornien als krebserregend, fruchtschädigend und reproduktionsschädigend bekannt. Weitere Informationen finden Sie unter P65Warnings.ca.gov .

Hydro Power Amplifier Install Kit - 4GA

High quality wiring at it's best!  This DS18 wiring kit comes with everything you need to install your new amplifier.  OFC stands for oxygen free cooper which is the standard in wiring for the audio world. Stronger, more conductive, and corrosion resistant are the main benefits of our OFC kits.  These kits include power, ground, and remote OFC wiring all encased in our ultra tough marine grade insulation.

Also included are RCA's, fuse size label on wiring, and waterproof fuse holder.

Features:

• 4GA - Up to 1800 watts
• Oxygen free tin copper wires
• Marine grade ATC Fuse holder

In the Box:

• Waterproof Fuse Holder
• 17' of 4GA White Power Tin OFC Cable
• 17' of 4GA Black Ground Tin OFC Cable
• 17' of Red/Black RCA Tin OFC Cable with Metal Plugs
• 17' of Blue Remote Tin OFC Cable
• 1 x 80A Fuse (up to 960 watts)
• 1 x 100A Fuse (up to 1200 watts)
• 1 x 150A Fuse (up to 1800 watts)
• 10 x Cable Ties
• 2 x Ring Terminals
• 4 x 10 AWG End Sleeves (Silver Plating)
• 4 x 8 AWG End Sleeves (Silver Plating)
• 3 x Allen Keys (2mm, 1.4mm and 1.3mm)
• Instruction Manual

∗Sold as Individual Piece

Specifications:

• Type: Electric
• Box Dimensions: 3"H x 9"W x 10"L WT: 6.75 lbs
• UPC: 810005183598

Ersatzschlüssel für 701

Dieser Ersatzknopf ersetzt den vorhandenen Knopf für den Schalter 701.

WARNUNG: Dieses Produkt kann Sie Chemikalien wie Di(2-ethylhexyl)phthalat (DEHP) aussetzen. Dieses ist im US-Bundesstaat Kalifornien als krebserregend, fruchtschädigend und reproduktionsschädigend bekannt. Weitere Informationen finden Sie unter P65Warnings.ca.gov .

Interface MK3-USB-C - VE.Bus to USB-C Adapter

The MK3-USB-C allows the following products to connect to a computer for configuration and firmware updates:

• Multi
• MultiGrid
• MultiPlus
• MultiPlus-II
• Quattro
• VE.Bus BMS V2
• Inverter/Charger settings in ECOmulti
• EasySolar
• EasyPlus
• Inverters with a VE.Bus communication port

Specifications:

• Type: Adapters
• Box Dimensions: 2"H x 4"W x 5"L WT: 0.25 lbs
• UPC: 8719076057994

Group 24 Battery Tray with Straps

A simple-to-install battery holder that fits into limited spaces. This tray is for batteries up to 10-1/2 inches in height. Provide a simple installation for changing or replacing batteries.

Features:

• The polypropylene hold-down strap has a positive-locking, quick-disconnect buckle
• Molded base mounts with four #10 Panhead fasteners

Specifications:

• Inside Dimensions: 7" L x 11" W
