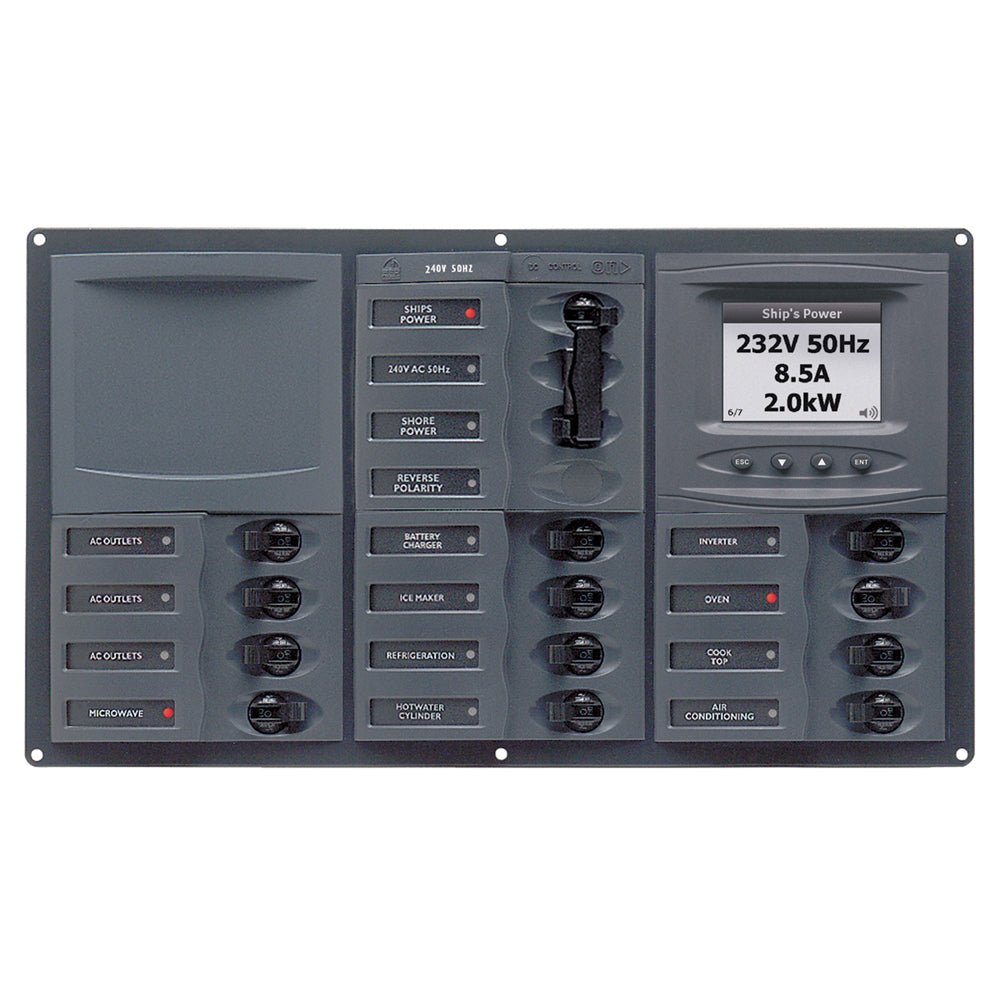

AC Circuit Breaker Panel with Digital Meters, 12SP 2DP AC230V ACSM Stainless Steel Horizontal

Features

• Supplied with tranducer




• Reverse polarity indicator




• Double pole mains input CBs with side lockout




• Digital meter shows volts, amps and frequency




• LED wired to indicate live panel with mains breaker either on or off




• AC source selector ensures no cross over between AC inputs (ship or
  shore power)

• Total Positions: 12 Loads + 2 Inputs




• Circuit Breakers: 1x 5A, 4x 10A, 5x 15A, 1x 20A, 1x 25A + 1x 20A, 1x 30A




• Nominal Voltage: 230V AC




• Maximum Amperage: 30A




• Dimensions: 7.9" X 13.9" X 2.5"




• Neg Bus: IS-6MM-2
