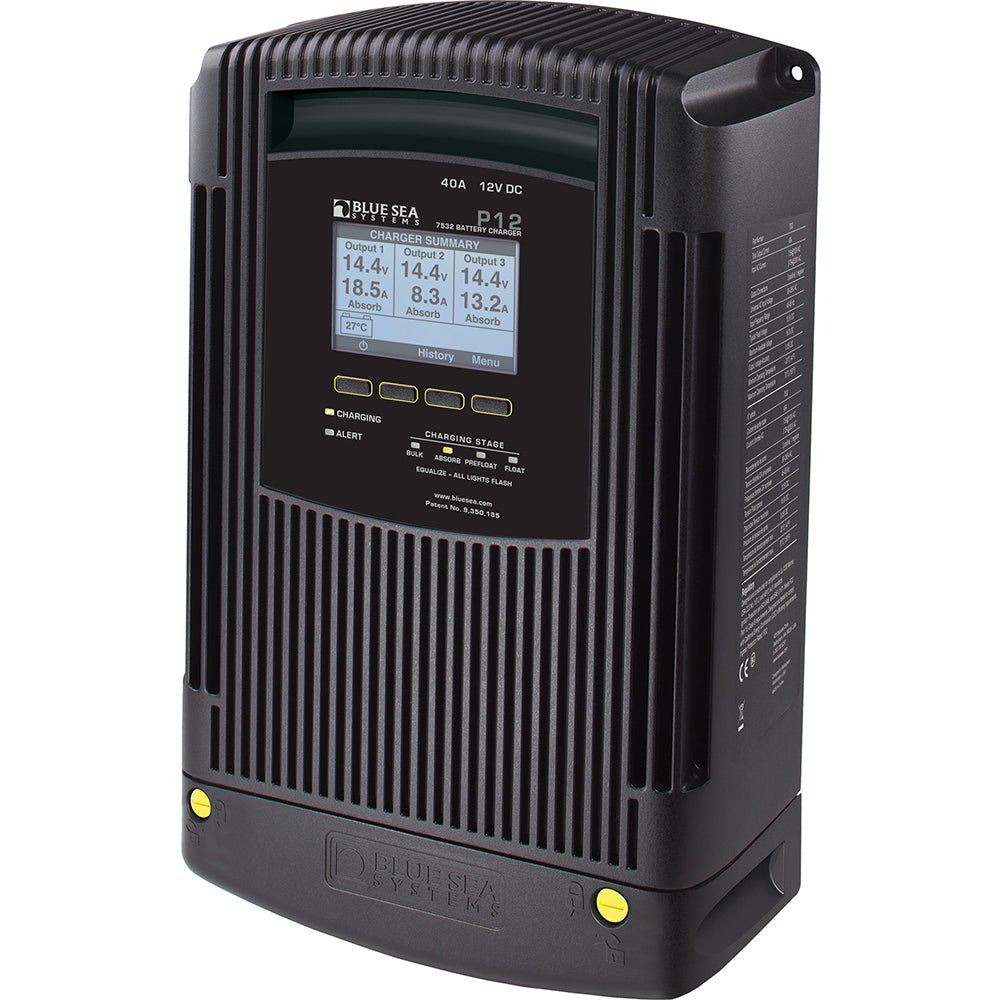

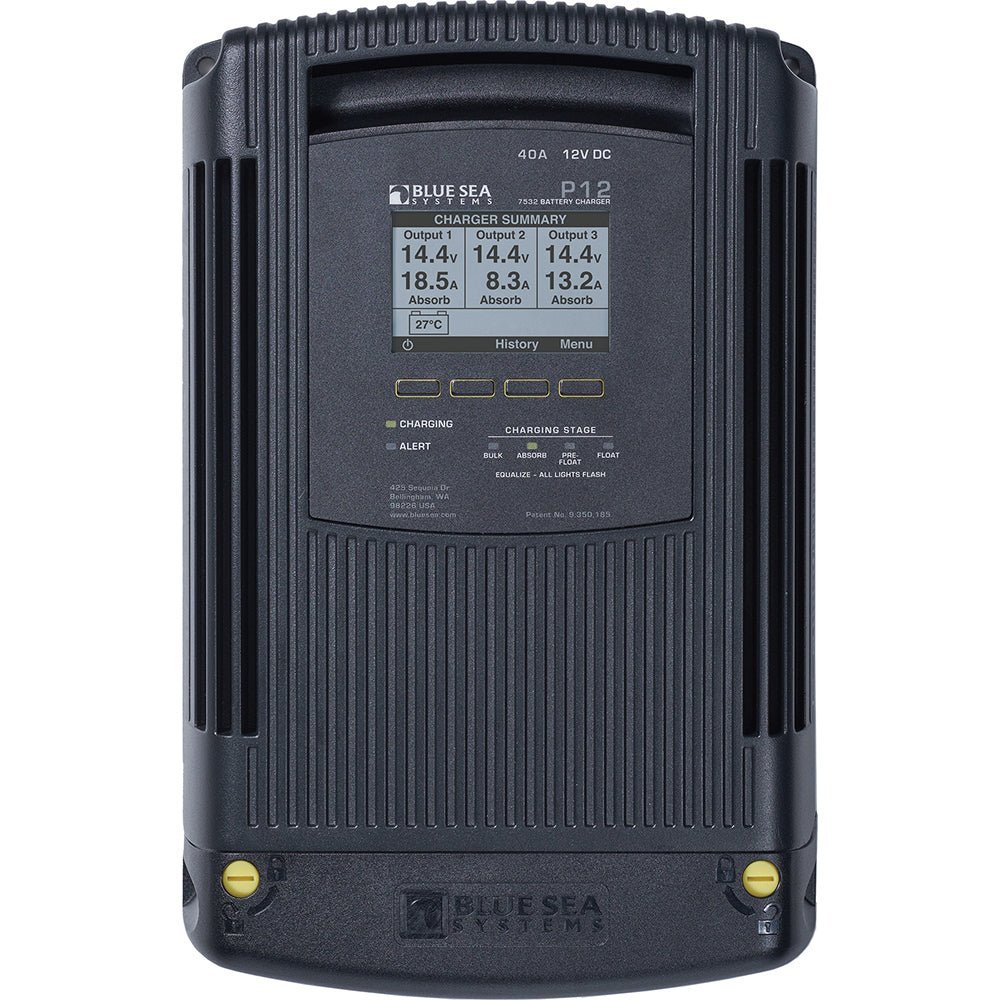

P12 Gen2 Battery Charger - 40A - 3-Bank

Features:

• Four stage, three output, dry mount design, for use in harsh environments.


• Rugged, finned aluminum case


• PreFloat stage prevents over charging


• Power factor corrected for efficient use of AC


• Intuitive diagnostic screens


• User defined charge profiles and customizable settings


• Provides charging for up to three battery banks


• Large, bright display


• Multi-language: English, French, German, Italian, Spanish


• Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery


• Battery Temperature Compensation - adjusts charge voltage based on battery temperature


• AC over and under voltage shut down and automatic restart


• Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value


• DC over voltage and reverse polarity protection


• Surge and short circuit protection

Specifications:

• Total Output Current: 40A


• Input AC Current: 7.5A @ 100V AC / 3.75A @ 200V AC


• Maximum Output Voltage: 16V DC


• Nominal Voltage: 12V DC


• Ignition Protected: Yes


• Number of Outputs: 1 negative / 3 positive


• Universal AC Input Voltage: 90-265V AC


• AC Input Frequency: 45-65Hz


• Output Voltage Accuracy: 0.05V


• Typical Float Voltage:13.5V DC


• Minimum Operating Temperature: -20 C


• Maximum Operating Temperature: 70 C


• Minimum Storage Temperature: -30 C


• Maximum Storage Temperature: 80 C


• Battery Types: AGM / Flooded Lead Acid / Gel / TPPL (Thin Plate Pure Lead)


• Recommended for Battery Bank Sizes: 440Ah Maximum Example: 4 x Group 31 / 60Ah Minimum Example: 2 x Group 31


• Warranty: 5 Year


• Height: 13.03 (330.96 mm)


• Width: 8.46 (214.88 mm)


• Depth: 3.66 (92.96 mm)


• Weight: 13.00lb (5.9 kg)
