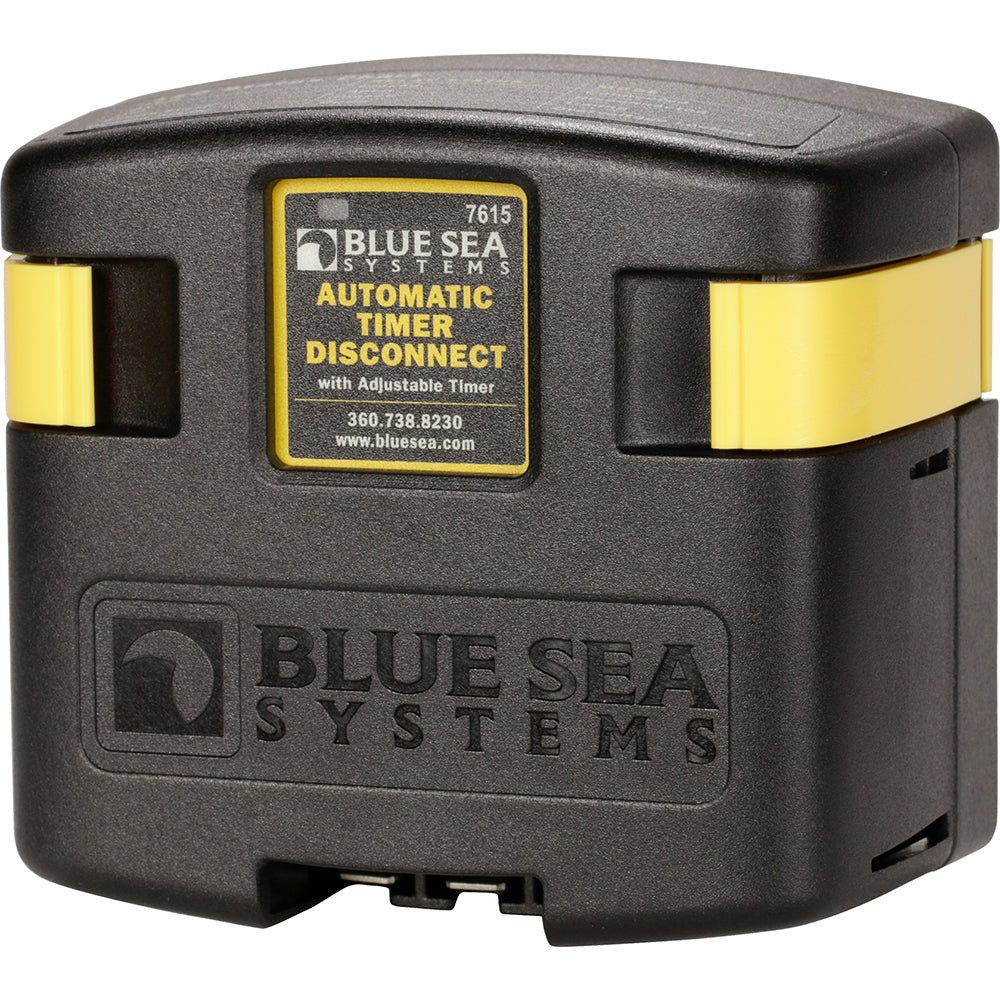

ATD Automatic Timer Disconnect

Adjustable time or voltage based battery disconnect automatically shuts off devices to preserve battery power

• 12V signal triggers relay to connect battery power to devices. When signal is removed the timer is activated and will disconnect devices after a preset time




• Disconnect can be triggered based on time, low voltage, or removal of 12V signal




• Low voltage will disconnect if time hasn_t been reached to preserve battery power




• Time and voltage options can be turned off to allow 12V signal based disconnect

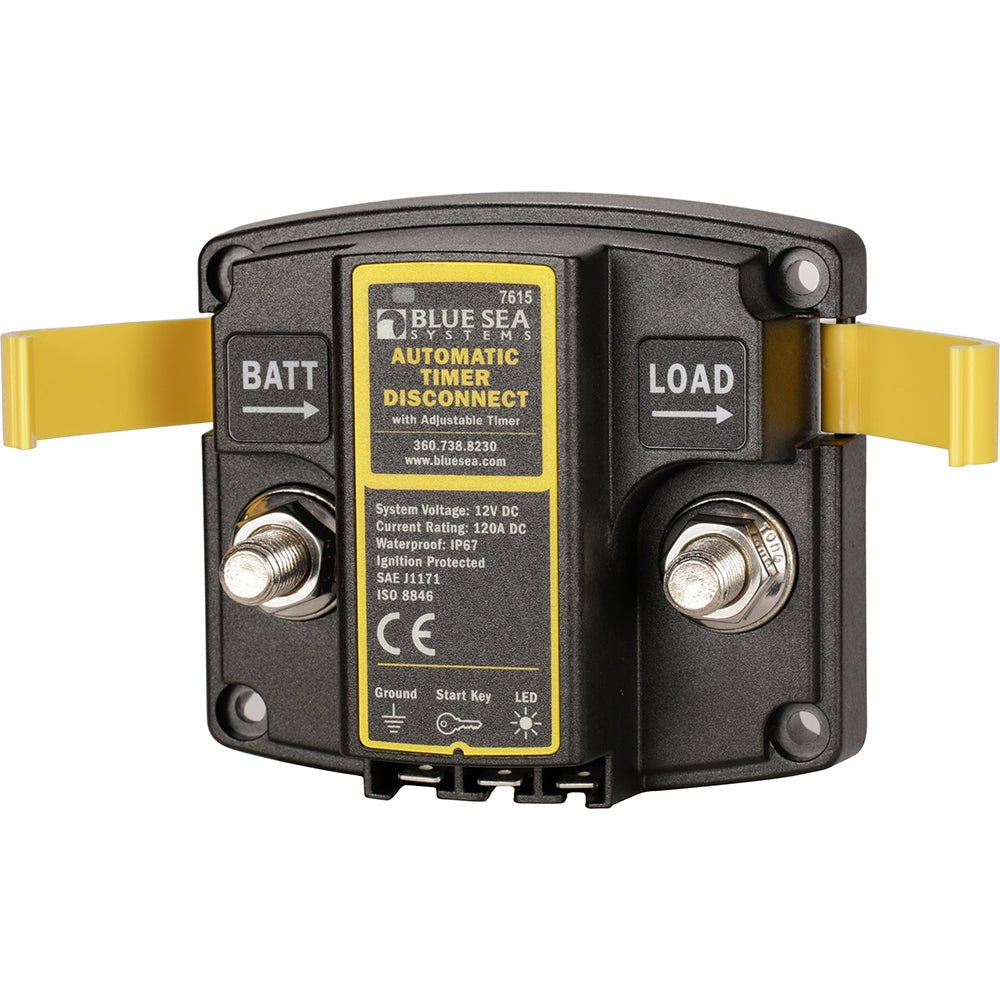

• Clip-on cover insulates terminal connections




• One-piece stainless flange nuts ensure safe and secure connections




• Integrated LED indicates status

• Nominal Voltage:12V DC




• Amperage Operating Current: 175mA(Combine / 15mA(Open)




• Continuous Rating:120A




• Intermittent Duty: 210




• Terminal Stud Size: 3/8"-16 (M10)




• Time Range: 15min-4hrs
