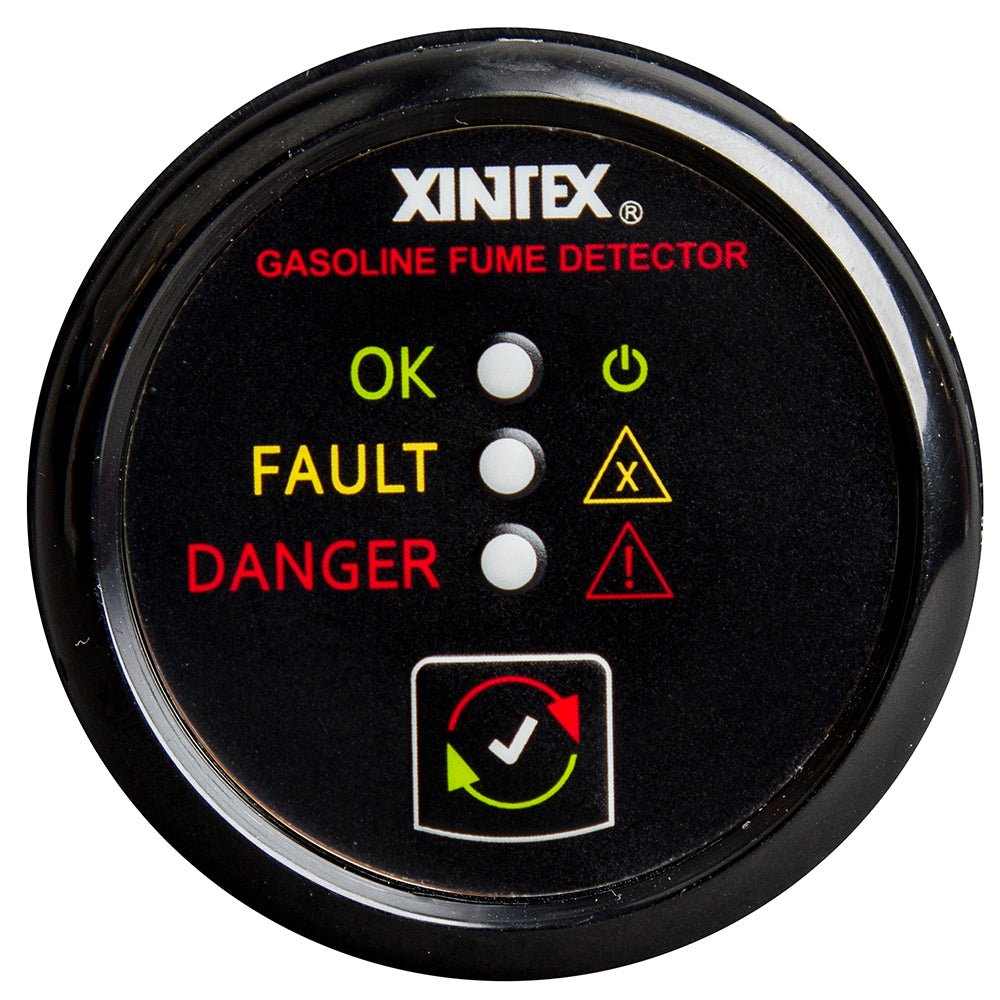

Gasoline Fume Detector - Black Bezel - 12/24V

The Single Channel Gasoline Fume Detector is an effective means to monitor gasoline fumes in an engine compartment, fuel tank storage area or in other areas where gasoline fumes might accumulate.

Features:

• Simple Installation


• Audible and visual alarm to indicate LEL (Lower Explosive Level) presence


• Monitors one (1) single area

Technical Specifications:

• Operating Temperature: -40 to 185F (-40 to 85C)


• Current Draw Nominal - 55mA


• Current Draw Maximum - 95mA


• Operating Voltage - 9 to 30V DC


• Alarm Horn - 68 dB


• Display Style - Round with Black Bezel


• Display Dimensions - 2-3/16" (5.6 cm) round


• Cutout Dimension - 2-1/16" (5.2 cm) round hole

In the Box:

• Fume Detector


• Fuel sensors x one (1)


• 20' Extension Cable x one (1)


• Instruction manual

*Sold as an Individual
