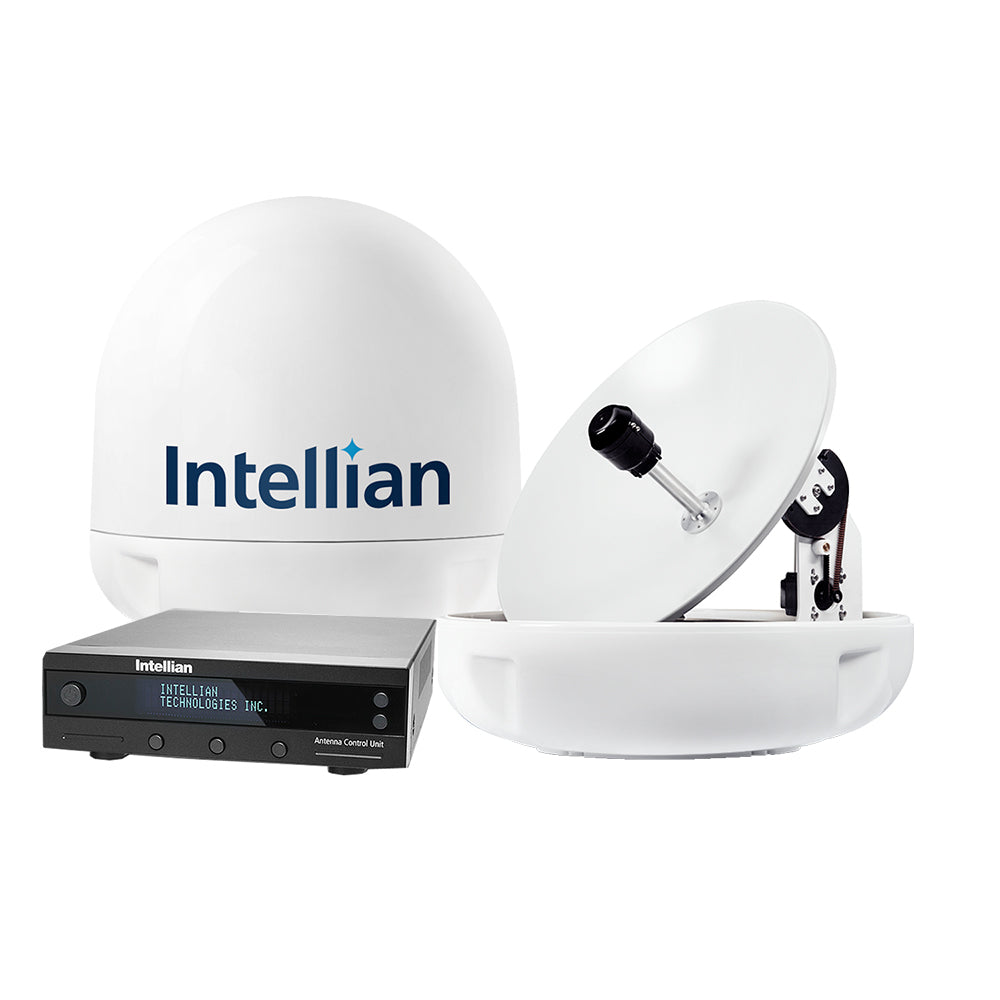

i5 US System - 20.8" Dish w/All-Americas LNB
The i5 is a significant addition to Intellian's TVRO product lineup and has also created another size category for marine satellite TV systems. The unique form factor is directly addresses the needs of offshore cruising vessels ranging from 40-60' in length.
The radome diameter of the i5 is 61cm (24") and it delivers extended coverage with a compact size. Intellian's signature iQ2 technology delivers quicker and quieter signal tracking and simple installation for the ultimate customer experience. The system's Wi-Fi enabled antenna control unit (ACU), provides the option to manage the system wirelessly via PC or Mobile Device, using Intellian's graphically intuitive control application, Aptus.
Features:
Just the Right Fit

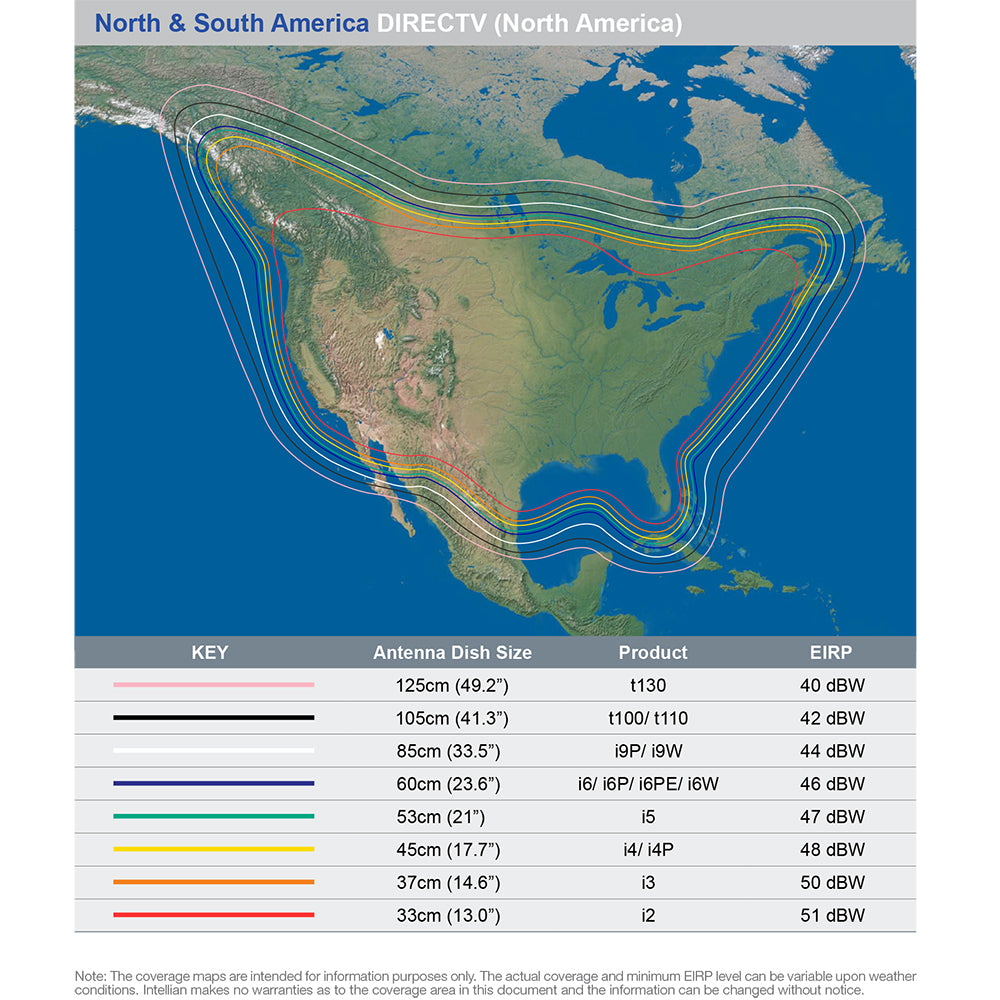

The i5 is the world's first 20" satellite TV antenna purpose built for offshore cruising vessels in the 40-60' range. It's performance enables reception of TV service throughout the Bahamas, Caribbean and Mexico, while it's size is better suited for vessels under 60' in length.
Simple C to +55C / -13F to +131F
Storage Temp. Range: -40C to +80C / -40F to +176F
Water Ingress: IPX6
Approvals: CE / FCC
Warranty: 3 year parts and 2 year labor
Performance
Reception Frequency: Ku-band (10.712.75GHz)
Polarization: RHCP / LHCP
Minimum EIRP: 47dBW
Azimuth Range: 680
Elevation Range: 0 to +90
Ship's Motion Roll: 25, Pitch 15
Turning Rate: 50 / sec
RF Output: Dual Output
Antenna Control Unit
Dimensions (WxDxH): 17.8cm x 21.7cm x 5.4cm / 7" x 8.5" x 2.1"
Weight: 1.2kg / 2.6lbs
Display: 2 line 20 character VFD module
GPS Interface: Built-in (NMEA 0183 GPS)
Power Requirement: 9.030.0V DC
Power Consumption: Typ. 30W, Max. 50W
