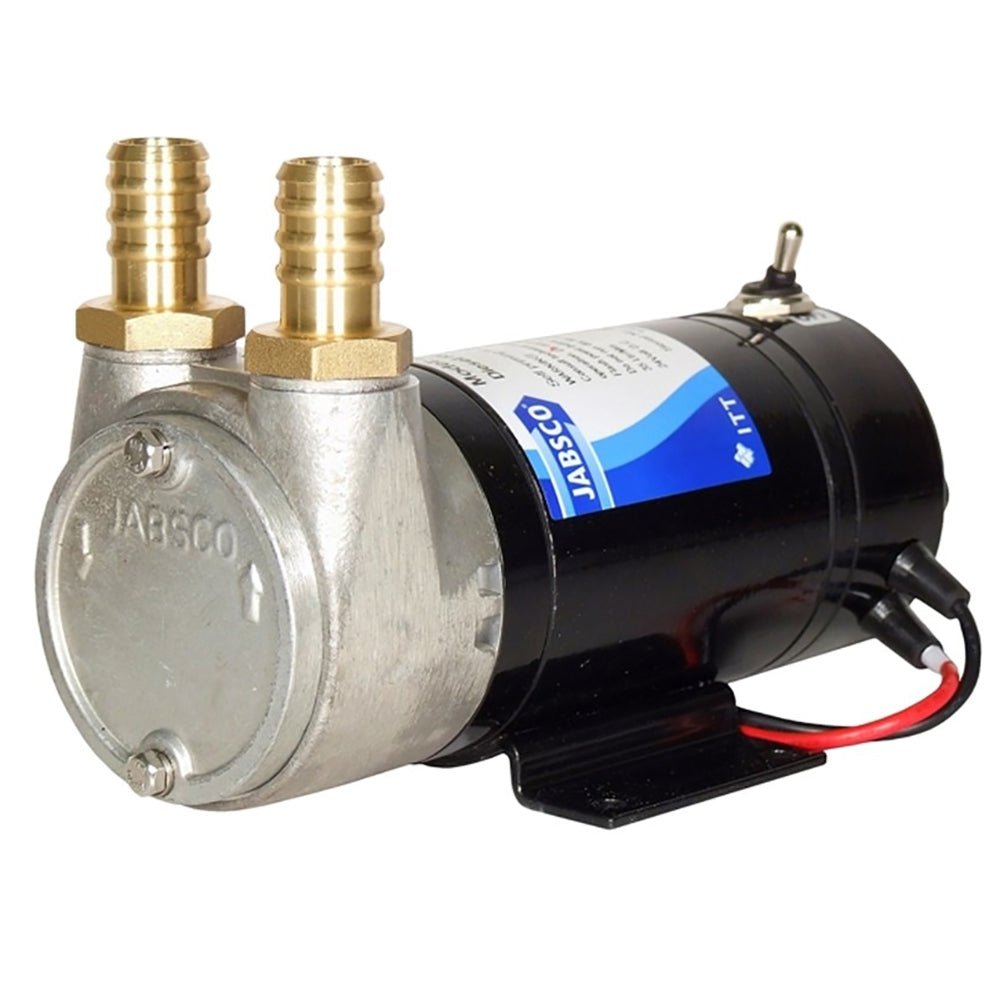

Sliding Vane Self-Priming Diesel Transfer Pump - 9 GPM 12V

Designed for refuelling small sizes diesel powered vehicles [typical tank sizes up to 200 litres (50 U.S. gallons)] from drums.

Suitable for mounting to the following equipment: Excavators, Cranes, Road rollers (compactors), Pavers, Agricultural machines, Generators, Helicopters.

Suitable for diesel fuel, Kerosene, Paraffin, Hydraulic oils, Oils up to 150 centi Stokes (750 Saybolt Universal) viscosity. .

Features:

• Faster refuelling - 35 litres/minute (9.5 U.S.GPM).


• High head capability - 6 metres (19 feet).


• Self priming up to 2.8 metres (9 feet).


• Vibration tested. IP55 protected motor

Specifications:

• Temperature Range : -30C to +40C (-22F to +104F)


• Pump Body : Aluminium


• Rotor : Vectra


• Vanes : PTFE Filled Ryton


• Shaft : Steel


• Seal : Nitrile


• Lip Seal Ports : Vertical BSP or 19mm hose adaptors ()


• Motor : 12V permanent magnet, corrosion resistant IP55 protected


• Duty : 25 mins @ +40C (104F)


• Current Draw: 15 Amps @ 3m head


• Maximum Current: 20 Amps
