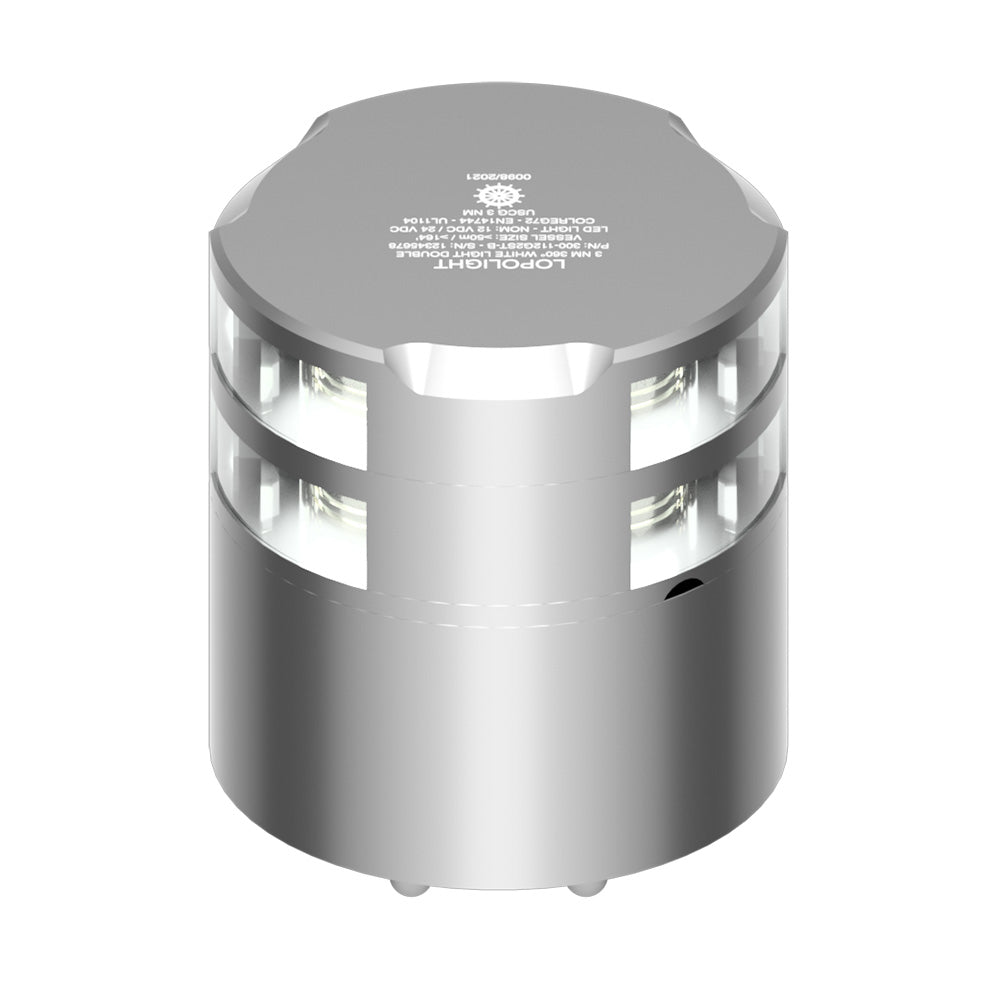

360 Double-Stacked 3nm Masthead Light - Silver Anodized

Features:

• 360 Double white


• With an aluminium base, cable side/cable down


• Includes HDPE base plate

Specifications:

• Light Color: White


• Dimensions metric: 92,5mm x 96,5mm


• Certification: This Navigation Light is certified by DNV, the Declaration of conformity, and the certificates can be found on www.lopolight.com under Support


• Intensity: >15cd


• Dimensions imperial: 3.6 x 3.8


• Approved to: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR


• Visibility: 3nm


• Operating temperature: -25C to 55C


• Mounting: Horizontal


• Materials: Silver anodized aluminum 25, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane


• Operating Voltage: 10- 32V DC


• IP Rating: IP68


• Power draw (W): 4,2


• Connection: Plug connector


• Current consumption (mA @ 12VDC): 270


• Current consumption (mA @ 24VDC): 176


• Vessel size: Over 50M


• Min. feed wire gauge: 0.5 mm2 AWG22


• Weight (Kg): 1.31 Kg


• Weight (Oz): 46.20 oz
