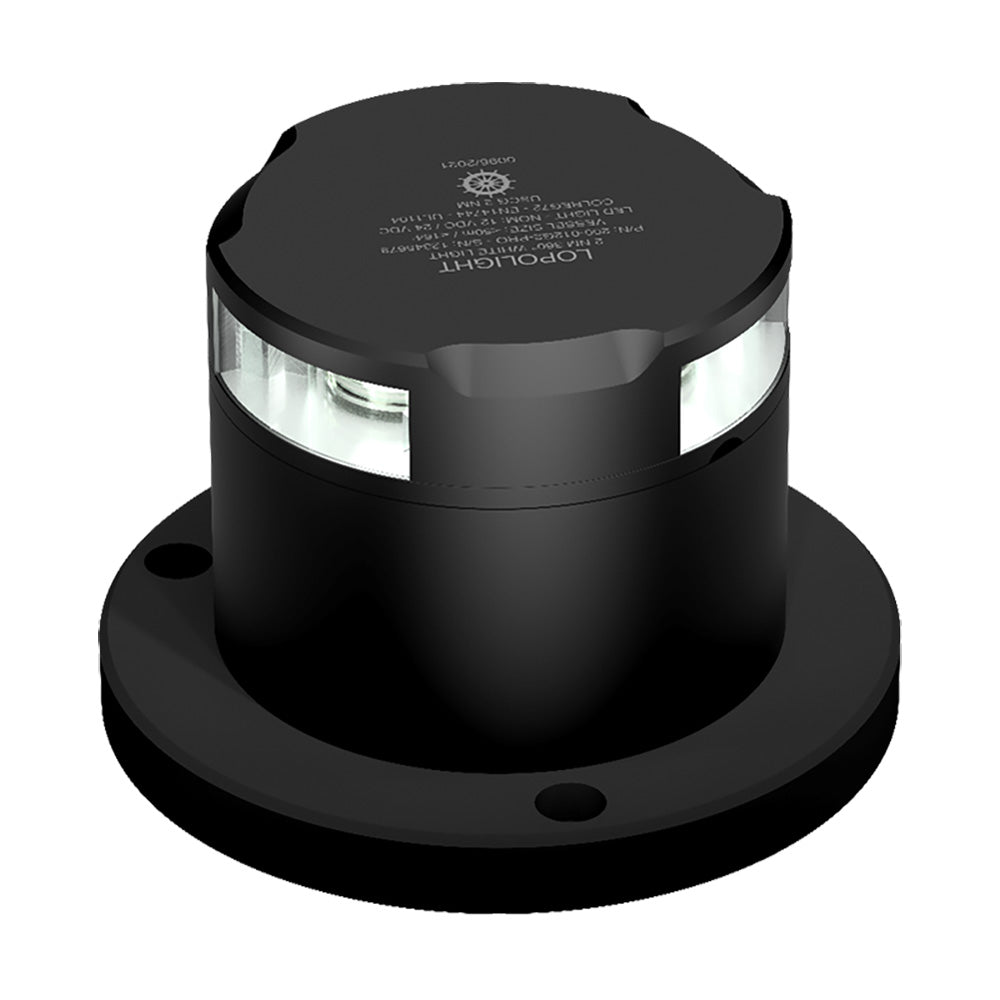

3NM 360-Degree White Ice-Class Port Light

This 360-degree ice-class light has a visibility of up to 3NM, and the de-icing function is automatic and controlled by the sensor in the light.

Includes Three Cable Glands:

• 9-17mm (3/8-11/16 in.) cable diameter


• 7-13mm (1/4-1/2 in.) cable diameter


• 4.5-10mm (5/32-3/8 in.) cable diameter

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR


• Mounting: Horizontal


• EAN: 5704438012240


• Light Color: White


• Intensity: >15cd


• IP rating: IP68


• Connection: Plug connector


• Visibility: 3NM


• Materials: Black hard coat anodized aluminum 50, PMMA lens, A4 stainless steel screws, epoxy, polyurethane


• Current Consumption (mA @ 12VDC): 270


• Current Consumption (mA @ 24VDC): 176


• Dimensions Metric: 92,5mm x 89,5mm


• Dimensions Imperial: 3.6" x 3.5"


• Certification: This navigation light conforms to USCG Commandant Instruction M16672.2.


• Operating Temperature: -60C to 55C


• Operating Voltage: 20-32VDC


• Power Draw (W): 4W (normal), 21W (de-icing mode, light on)


• Vessel Size: Over 50M


• Min. Feed Wire Gauge: 1.5mm2 AWG18


• Weight (kg): 1.14 Kg


• Weight (oz): 40.21 Oz
