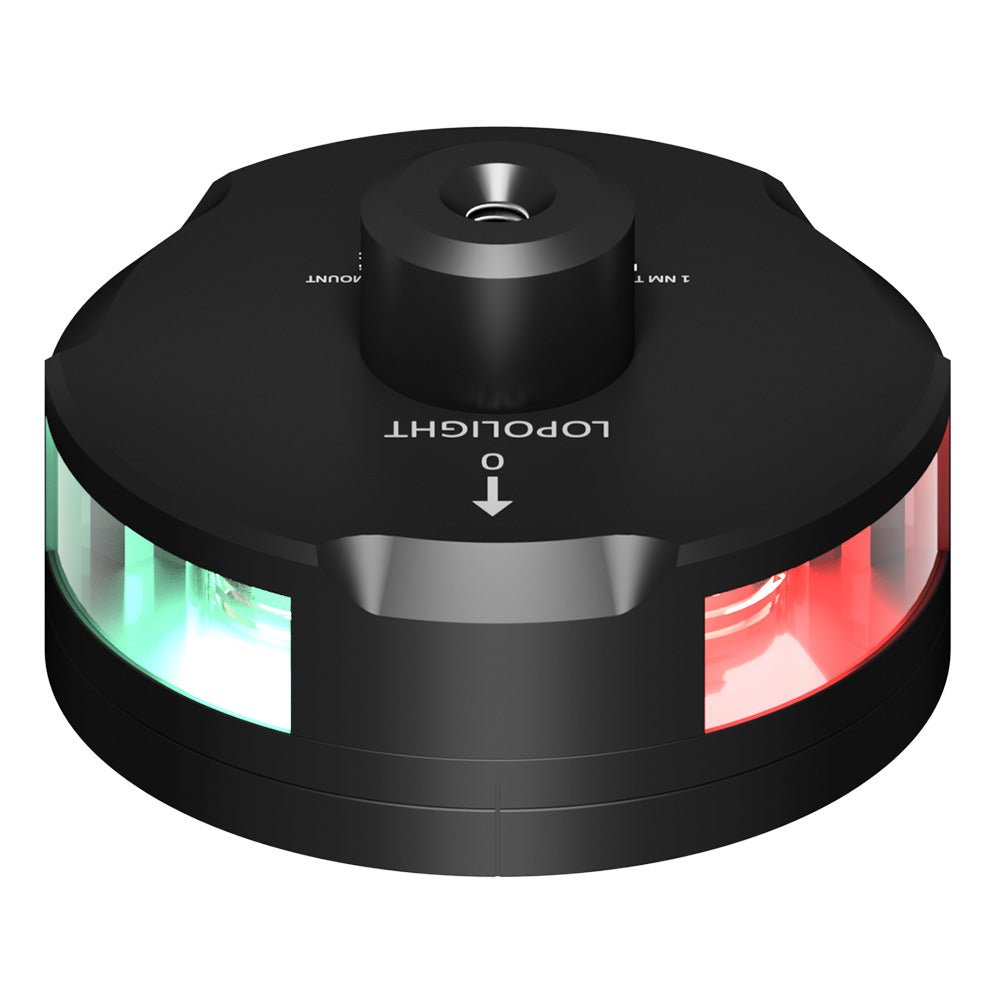

Tri-Color Nav Light with Windex Mount - 1NM - Black Housing with FB Base

This black tri-color navigation light has a windex mount, is horizontally mounted, and has a one-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Black anodized aluminum housing


• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR


• Mounting: Horizontal


• EAN: 5704438042667


• Min. Feed Wire Gauge: 0.5mm² AWG22


• Light Color: Red, green, and white


• Visibility: 1NM


• Included In the Package: 1 Navigation light, 0.75 meters shielded marine grade cable, and installation guide


• IP rating: IP68


• Connection: 0.75m cable


• Current Consumption (mA @ 24VDC): 81


• Current Consumption (mA @ 12VDC): 150


• Dimensions Metric: 92,5mm x 36mm


• Dimensions Imperial: 3.6" x 1.4"


• Operating Temperature: -25 degrees C to 55 degrees C


• Operating Voltage: 10-32VDC


• Power Draw (W): 2.6


• Vessel Size: Under 12 meters
