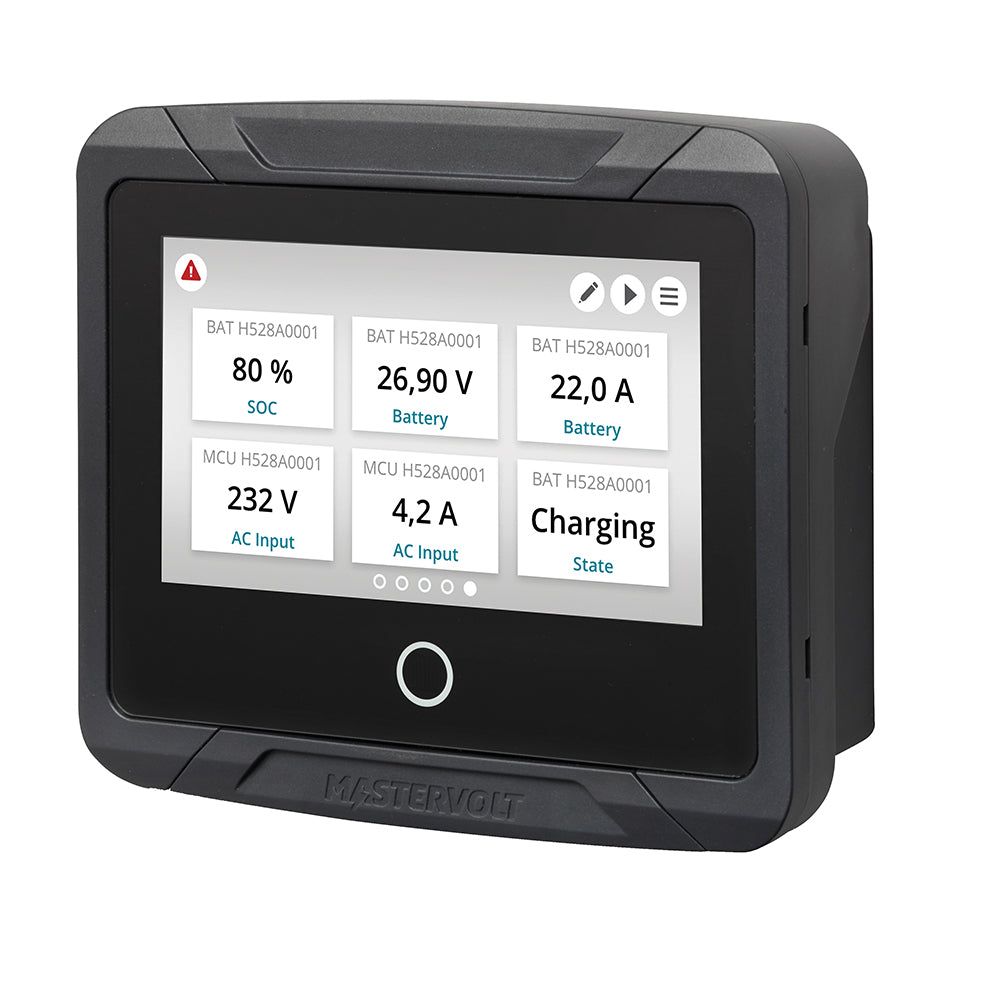

EasyView 5

Waterproof system monitor with daylight display and intuitive touch control.

Controlling your Mastervolt system has never been easier. The EasyView 5 features a sharp, waterproof display which is clearly readable in daylight. Thanks to the color touch screen and multi-language menu, the display is a pleasure to operate. Easily customizable favorite pages show all relevant system information at a glance.

Features

• Water proof, daylight readable color display


• Intuitive touch control


• Customizable favorite pages


• Log book for warnings and alarms


• Buzzer and Home button


• Easy mounting: Front mount, wall mount or retrofit


• MasterBus powered or MasterBus powering by 12 V DC input


• Easy updating through integrated USB

Applications

The EasyView 5 completes any MasterBus system. Applications include yachts, vehicles and stationary systems. Markets include marine, mobile (recreational professional), infra-structure, offshore, off-grid and industrial markets.

Specifications

•
  Display:4.5 inch high contrast display with capacitive touch control. Resolution: 480x272 pixels, Color depth: 16 bits


•
  Languages:English, Dutch, German, Spanish, Italian, French, Finnish, Swedish, Norwegian, Danish


•
  IP degree: IP65 waterproof front


•
  Power supply:MasterBus powered or MasterBus powering through 12/24 V input


•
  Power Consumption:< 160 mW (idle mode)


•
  Alarm:Buzzer integrated


•
  Connections:2 x MasterBus, USB, 12/24 V auto ranging input for optional external power


•
  Mounting:Front mount, wall mount and MasterView Easy retrofit


•
  Dimensions, HxWxD:113 x 127 x 43 mm
