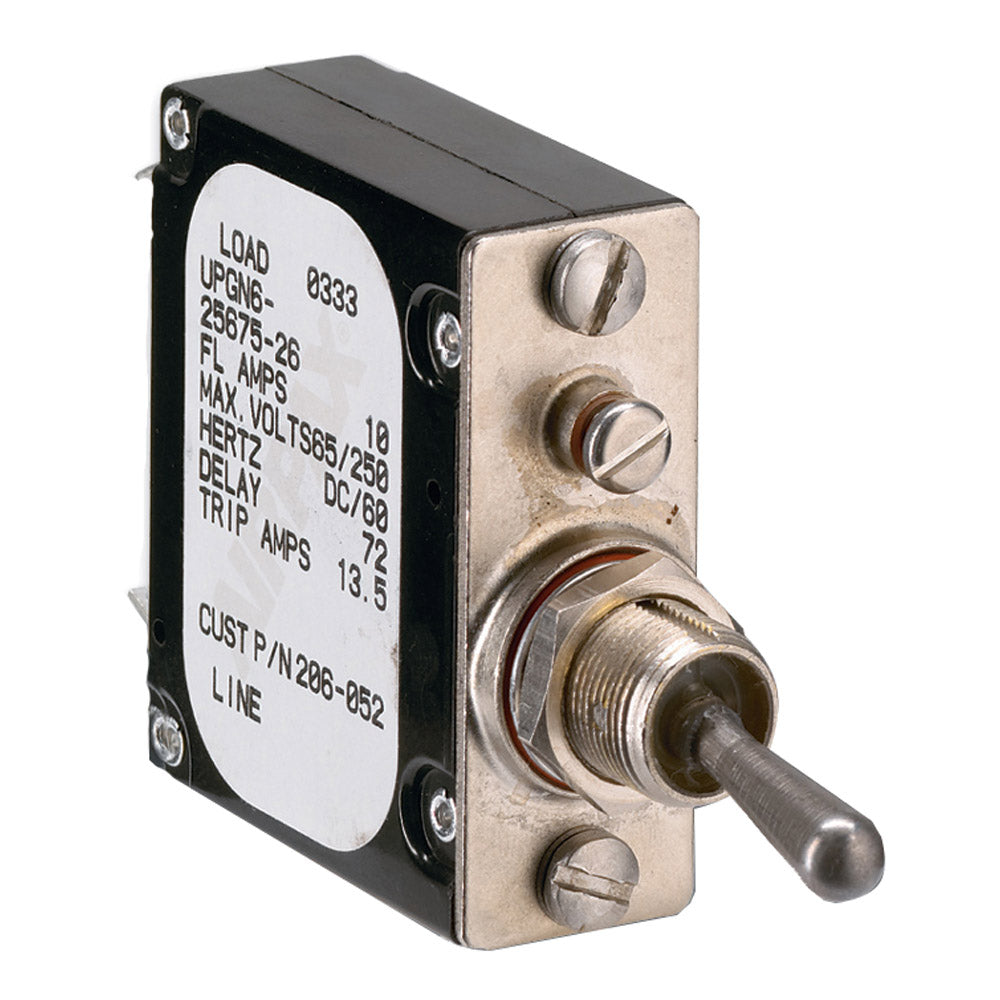

Panel Seal/Waterproof "A" Frame Magnetic Circuit Breakers

• Branch AC or DC circuit breaker for Paneltronics electrical distribution panels




• Meets all American Boat and Yacht Council (ABYC) Standards for non-ignition protected circuit breakers




• UL Recognized (UL 1077) for use in th USA, and CSA Certified for use in Canada




• Trip free (ABYC E-11.10.1.5.4 and E-11.10.2.1.1)




• Manual reset (ABYC E-11.10.1.5.6 and E-11.10.2.1.1)




• Handle Color - Metal with silicon rubber seal




• Maximum Aperage - 50 Amps




• Maximum Voltage/AIC - 32 VDC/2,500 amps with no back-up fuse (ABYC E-11.10.1.5.5)




• Rated Switch Cycles - 10,000 actuations at rated current and voltage




• Electrical Hardware - Hex nut 1/2-32 (supplied with circuit breaker); Lockwasher 1/2" internal tooth (supplied with circuit breaker)




• Optional Boot - Black silicone rubber (P/N 048-015) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
