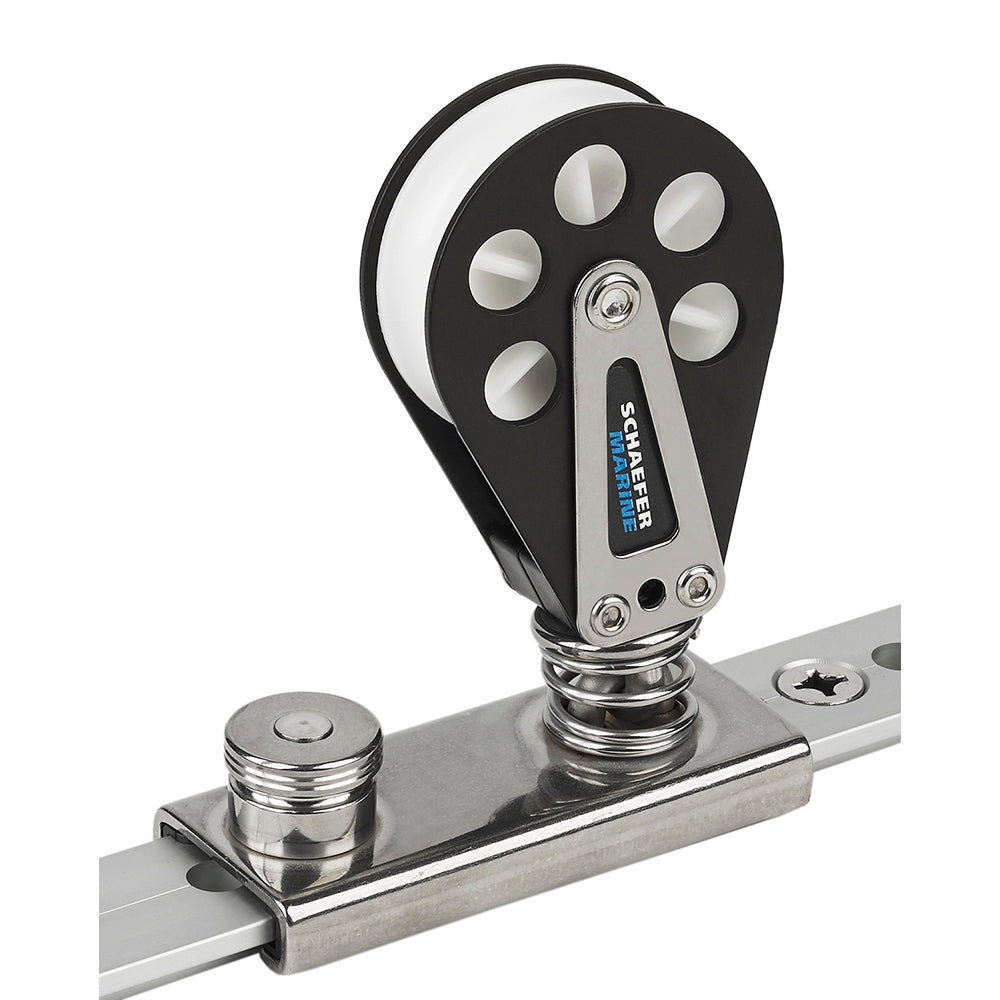

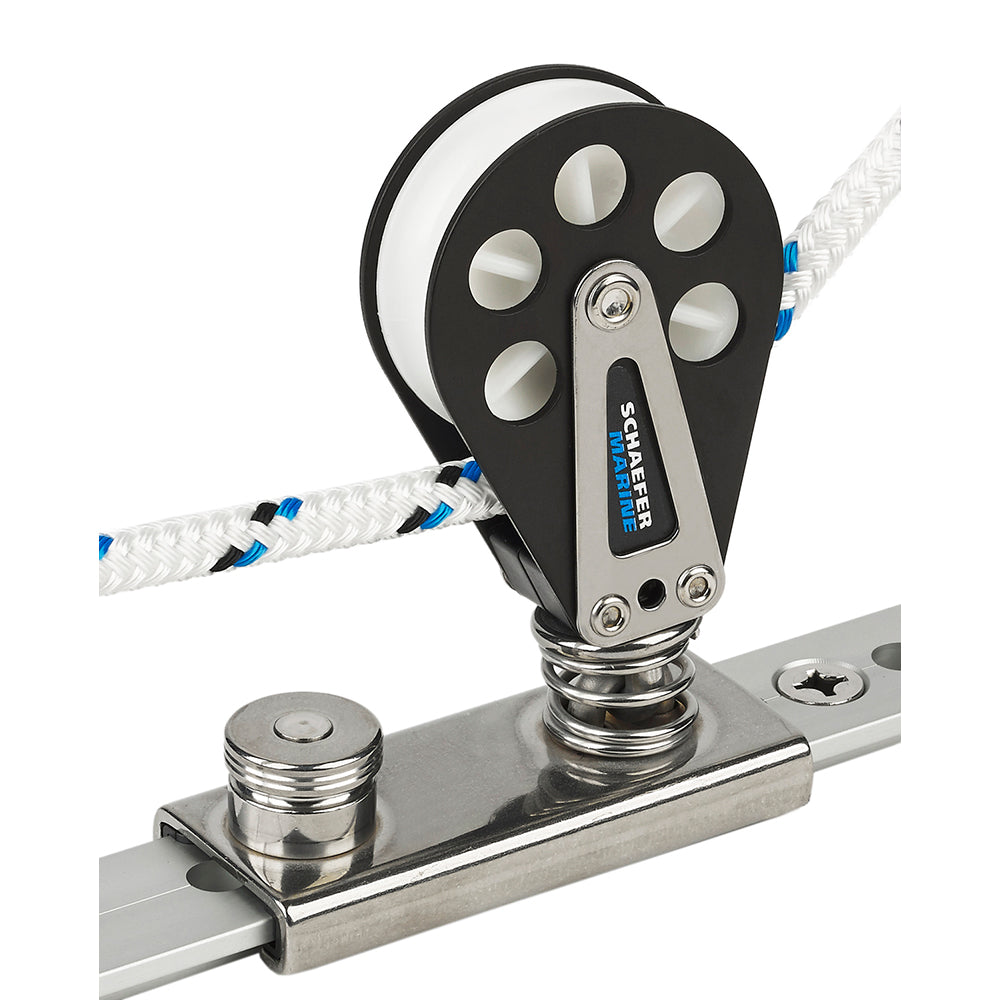

Spring Loaded/Lined Slide/Aluminum for 1-1/4" T-Track

Delrin sheave ensures smooth operation and high safe working load. Anodized aluminum cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.

Specifications:


  • Track Size 1-1/4" x 3/16" (32 mm x 5 mm)

  • Max. Boat Length 33' (10 m)

  • Max. Boat Weight 12000 lbs. (5455 kg)

  • Max. Sail Area 520 sq. ft. (48 m2)

  • Sheave Diameter 2-3/8" (60 mm)

  • Max Line 1/2" (12 mm)

  • Length 4" (102 mm)

  • Width 1-9/16" (39 mm)

  • Height 4-15/16" (126 mm)

  • Bearing Height 2-3/8" (67 mm)

  • SWL 2250 lbs. (1020 kg)

  • Weight 12 oz. (340 g)
Truck Freight: No
Oversized: No
  • Typ Sailing
  • SKU 74740
  • Barcode 740507022449
