THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS

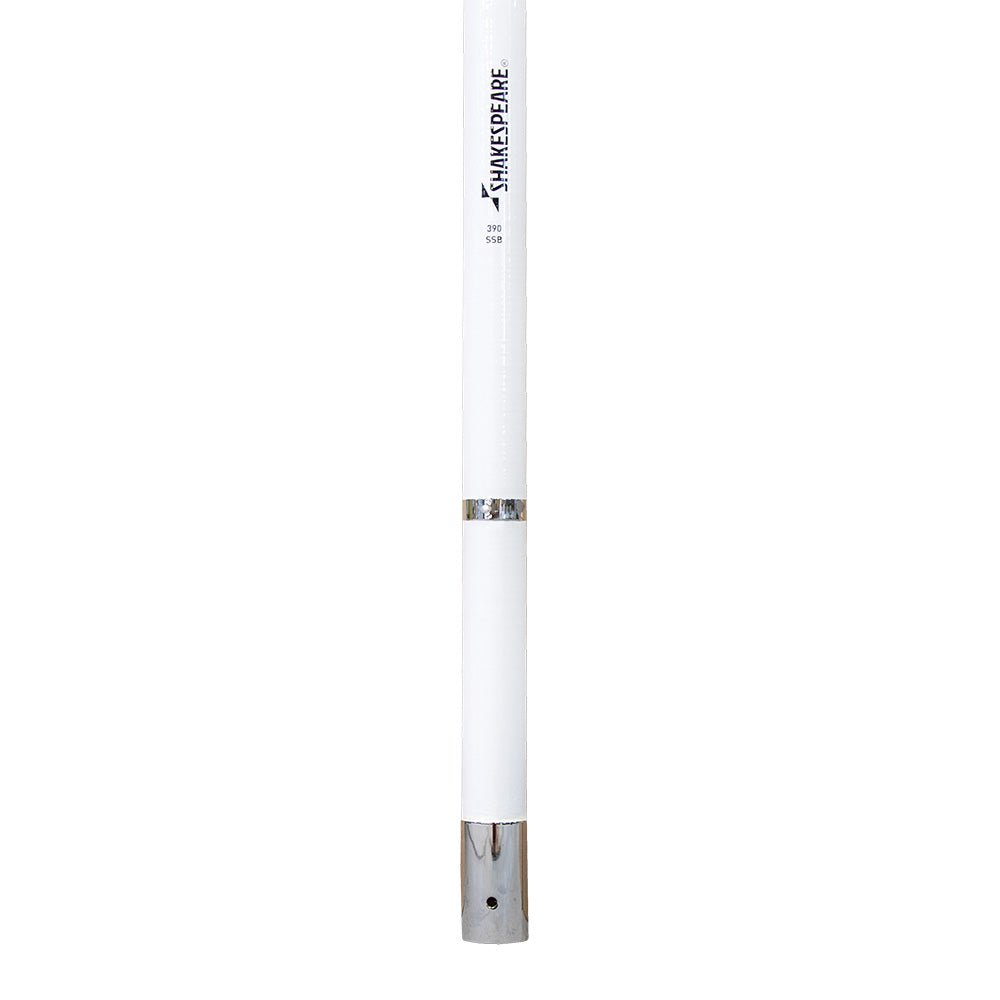

Shakespeare Style 390 SSB

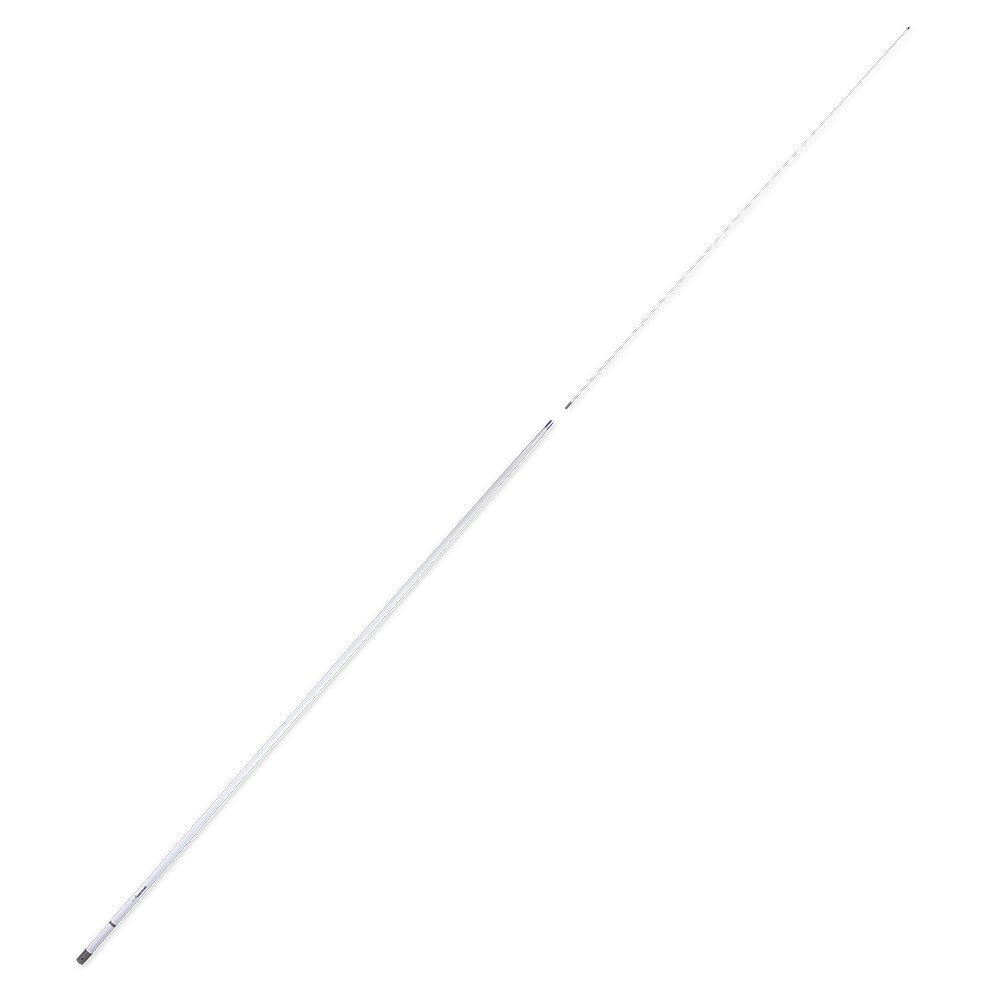

23' LENGTH

WHIP ANTENNA WITH CONDUCTORS RUNNING FULL-LENGTH (NO LOADING COIL)

This award-winning performer is often referred to as the standard of the industry by virtue of its capabilities and popularity. Reinforced insulating qualities allow input power up to 1 kw. Conductors are permanently sealed in Shakespeare white fiberglass.

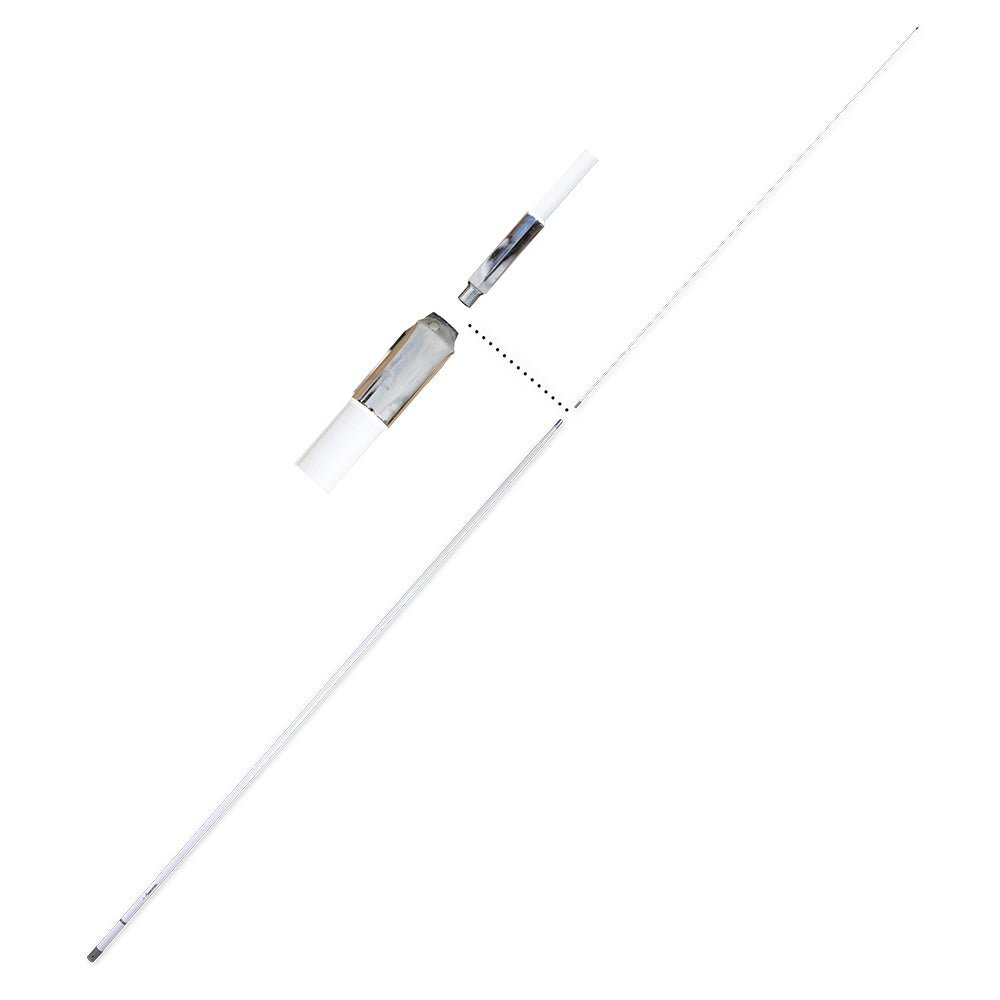

• Chrome-plated brass ferrules, bottom ferrule has 1-14 thread




• Side feed termination band




• Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit for deck or side mounting




• Two sections: Base 162; Tip 112




• Shakespeare Limited Warranty: 2 years

Frequency:
2-30 MHz HF band with tuner

Bandwidth:
Resonant frequency 10.8 MHz

SWR:
N/A

Impedance:
(Ohms): N/A

Gain:
N/A

Max Input (Watts):
1000

DC Ground:
N/A

Termination:
Side Termination

Height (feet):
23

Polarization:
Vertical

Radiation pattern:
Omni-directional
