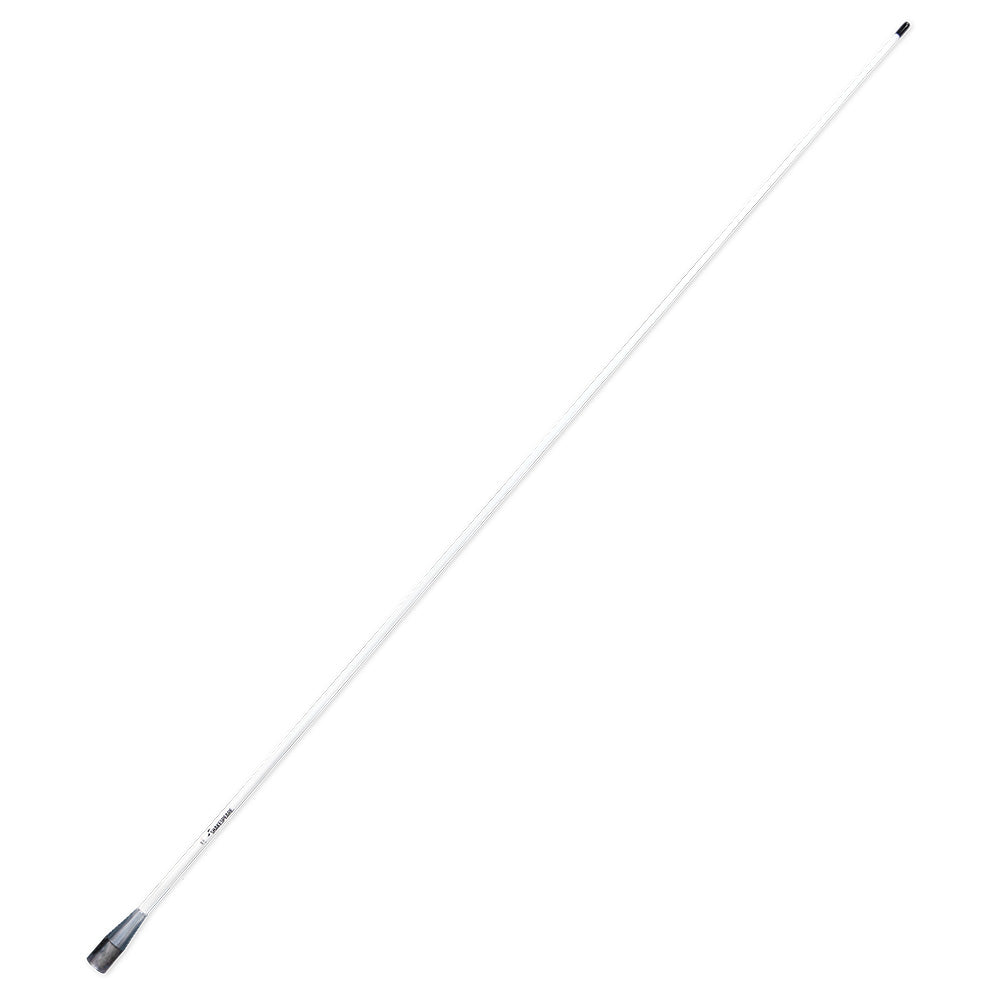

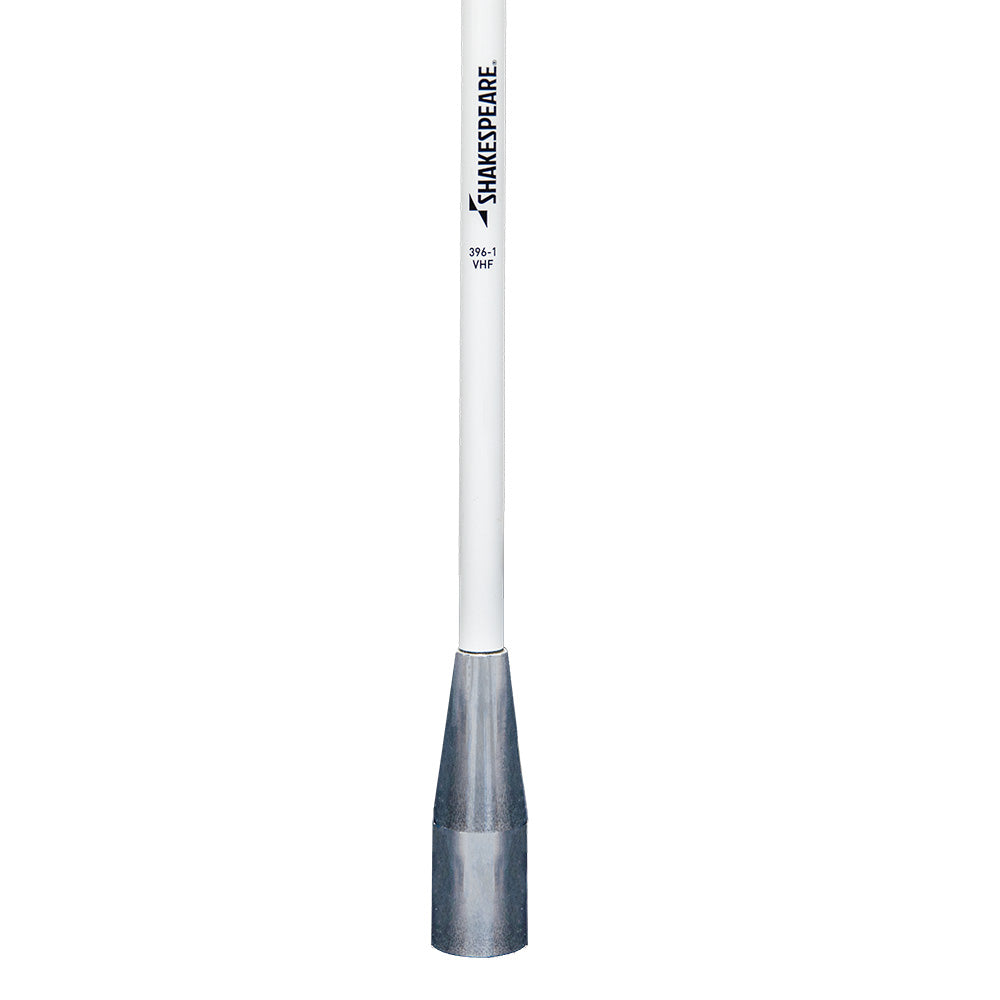

Shakespeare 396-1 5' VHF Antenna
Shakespeare 396-1 5' VHF Antenna
Shakespeare 396-1 5' VHF Antenna
Shakespeare 396-1 5' VHF Antenna
Shakespeare

Shakespeare 396-1 5' VHF Antenna

SKU: 10597
(0)
Vorrätig
Usually ships within 24 hours
$159.99 USD

🎁 Spend $99.99 on Get Tight Gear → Get a FREE Offshore Bucket!

Applies only to Get Tight Gear products. Limit 1 per order. Auto-applied at checkout. ⏳ Limited Time. 🔥 Limited Quantities. Don’t Miss Out!

Shop Get Tight Gear See the Bucket

Gefällt es Ihnen? Teilen Sie es mit Ihrer Crew!

Style 396-1 VHF 3dB

Center-fed 1/2-wave coaxial sleeve

Outstanding, basic 3dB antenna designed to reduce signal fading in rough seas. This is probably the most widely used antenna on Coast Guard vessels.


  • Brass and copper elements

  • Chrome-plated brass ferrule with standard 1-14 thread

  • Includes 15' RG-58 cable and a PL-259 connector

  • Suggested mount: Style 4187 Ratchet Mount

  • One section

Technical Specifications:

Frequency:
VHF Marine band

Bandwidth:
(within 2.0:1 SWR): 5 MHz

SWR:
1.5:1 at 156.8 MHz

Impedance
(Ohms): 50

Gain:
3 dB

Max Input (Watts):
50

DC Ground:
NO

Termination:
15' RG-58 cable

Height (feet):
5

Polarization:
Vertical

Radiation pattern:
Omni-directional
Truck Freight: No
Oversized: No
  • Typ Communication
  • SKU 10597
  • Barcode 719441100018
