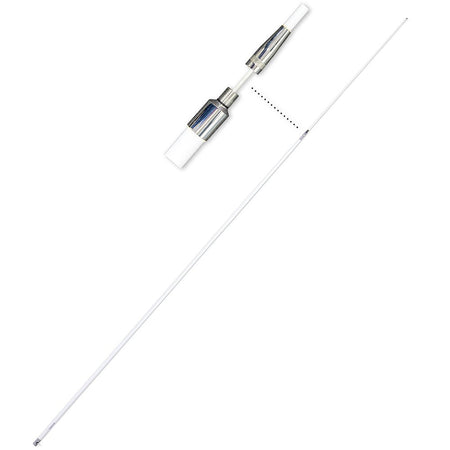

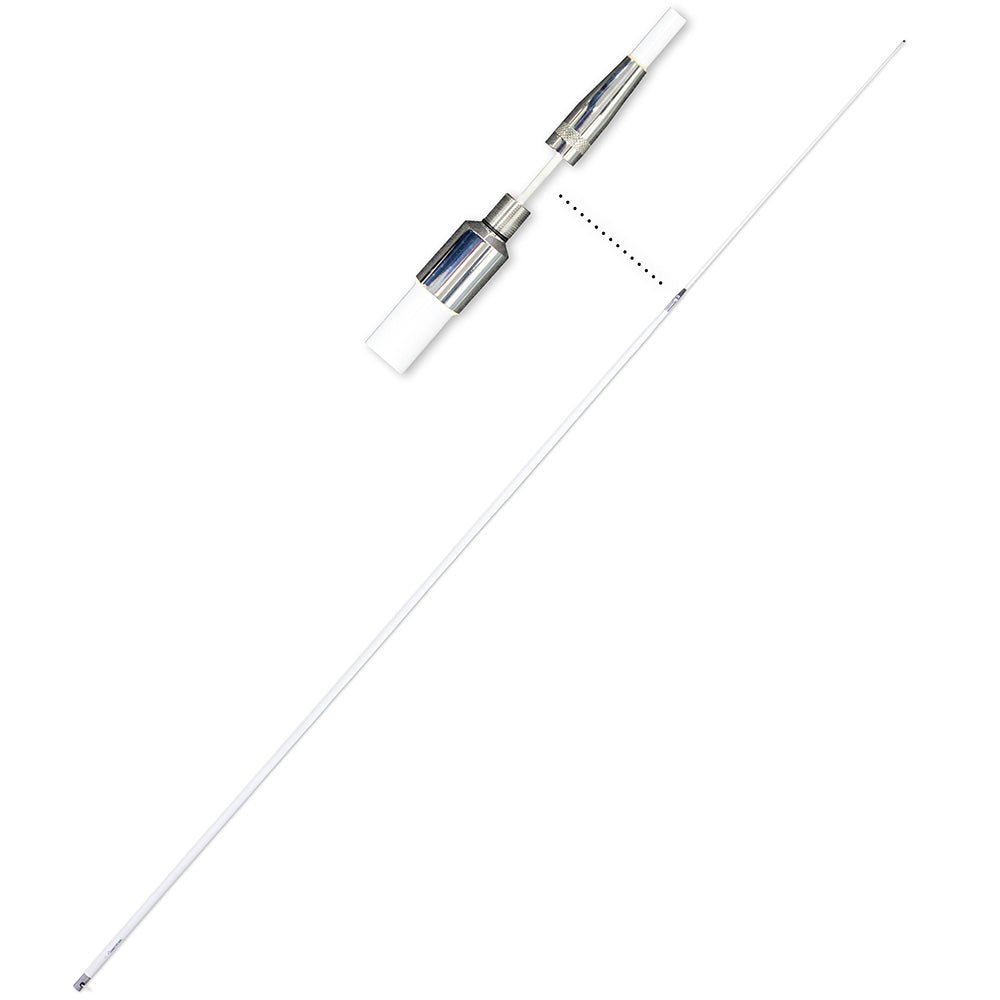

Shakespeare Style 4018-M VHF Marine

19 LENGTH, 9dB

PHASED 1/2-WAVE ELEMENTS IN A COLLINEAR ARRAY WITH A COAXIAL CHOKING SLEEVE TO SUPPRESS CABLE RADIATION

Same as Style 4018 with a special sleeve for mast mounting. Used primarily for land-based stations and on commercial vessels.

The top choice for charter boat captains and experienced sport fishing enthusiasts. This long-distance VHF antenna is rigid enough to stay erect in rough seas, yet exceptionally lightweight.

• Brass and copper elements


• Chrome-plated brass mid section ferrules and aluminum sleeve bottom ferrule


• SO-239 connector at base

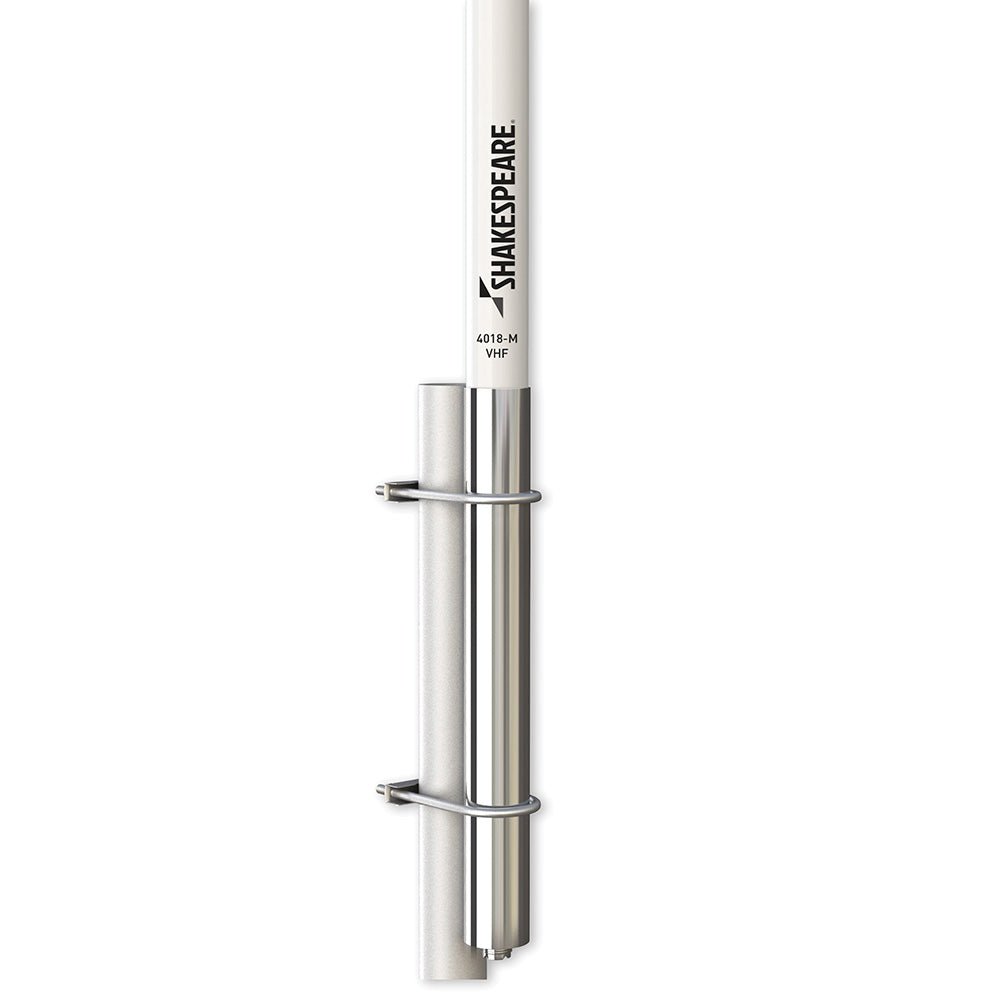

• Suggested mount: Mast mount using supplied 1-1/3 U-bolts. The 4018-M can be strapped to a larger mast if steel banding (not supplied) is used.


• Two sections: Base 162; Tip 66:


• Shakespeare Limited Warranty: 2 years

Technical Specifications:

Frequency:
VHF Marine band

Bandwidth:
(within 2.0:1 VSWR) 3 MHz

SWR:
1.5:1 at 156.8 MHz

Impedance:
(ohms): 50

Gain:
9 dB

Max Input (Watts):
25

DC Ground:
NO

Termination:
SO-239

Height (feet):
19

Polarization:
Vertical

Radiation pattern:
Omni-directional
