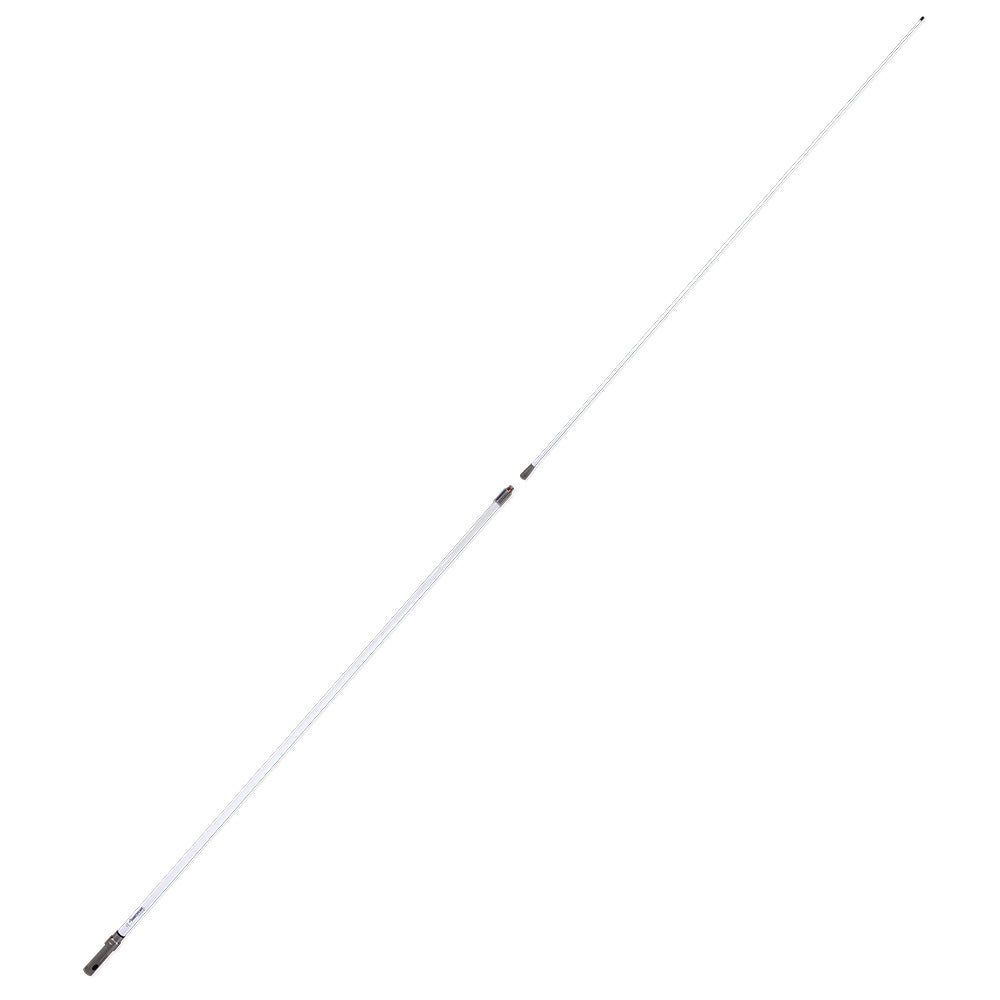

Shakespeare 6018-R Phase III VHF Antenna - 17 6 (5.3M) VHF Marine Band 9dB Gain

6018-R Phase III VHF Antenna - 17 6 (5.3M) VHF Marine Band 9dB Gain

Good communication over the VHF Marine Band depends on antenna height, quality and dB Gain. This high performing Phase III marine antenna is a powerhouse providing all of those necessities in our rugged, high-strength, foam-filled fiberglass radome for stability in high seas, high winds and high speeds.

Features:

• Silver-plated outer conductor, copper innerconductor

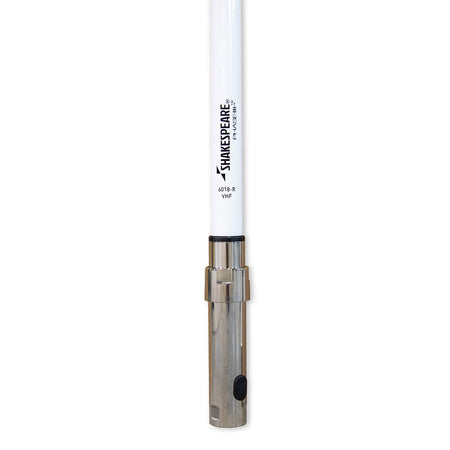

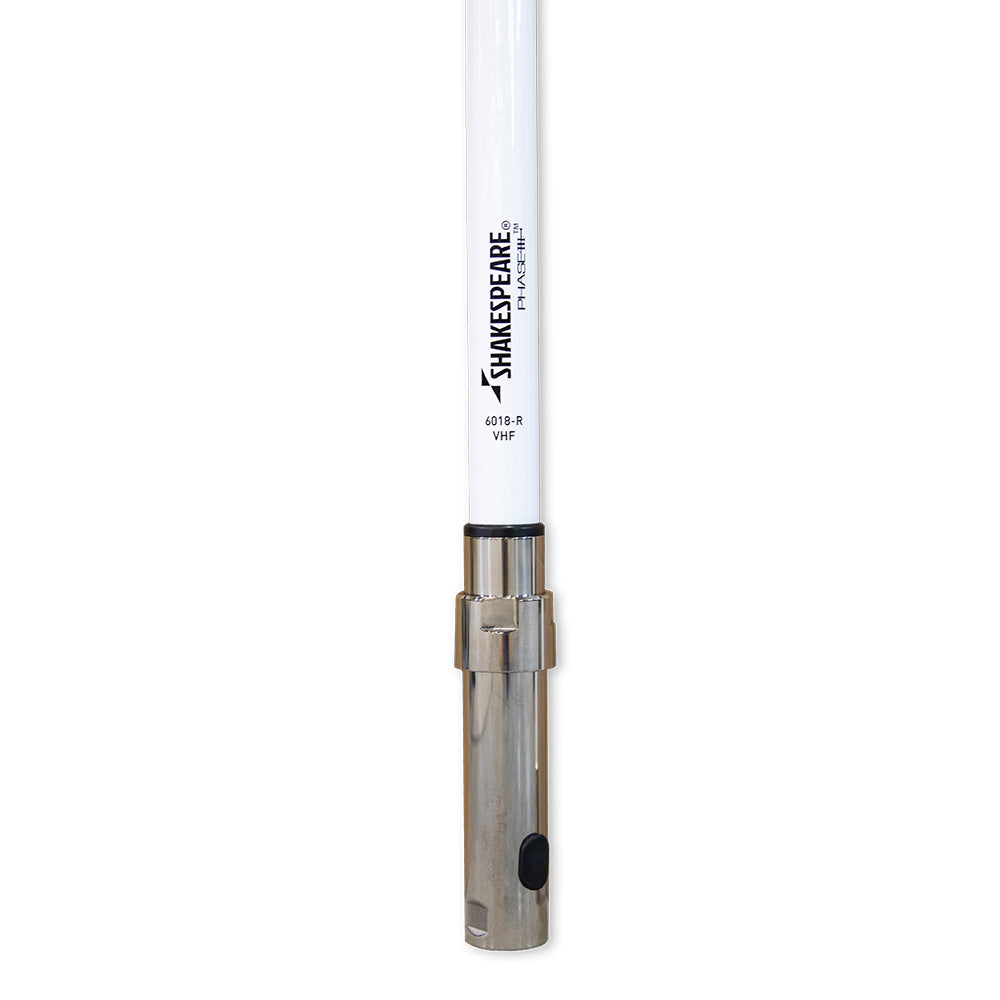

  Stainless steel mounting sleeve




  Type SO-239connector inside mounting sleevefor easy mounting and dismounting forstowage




  Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit

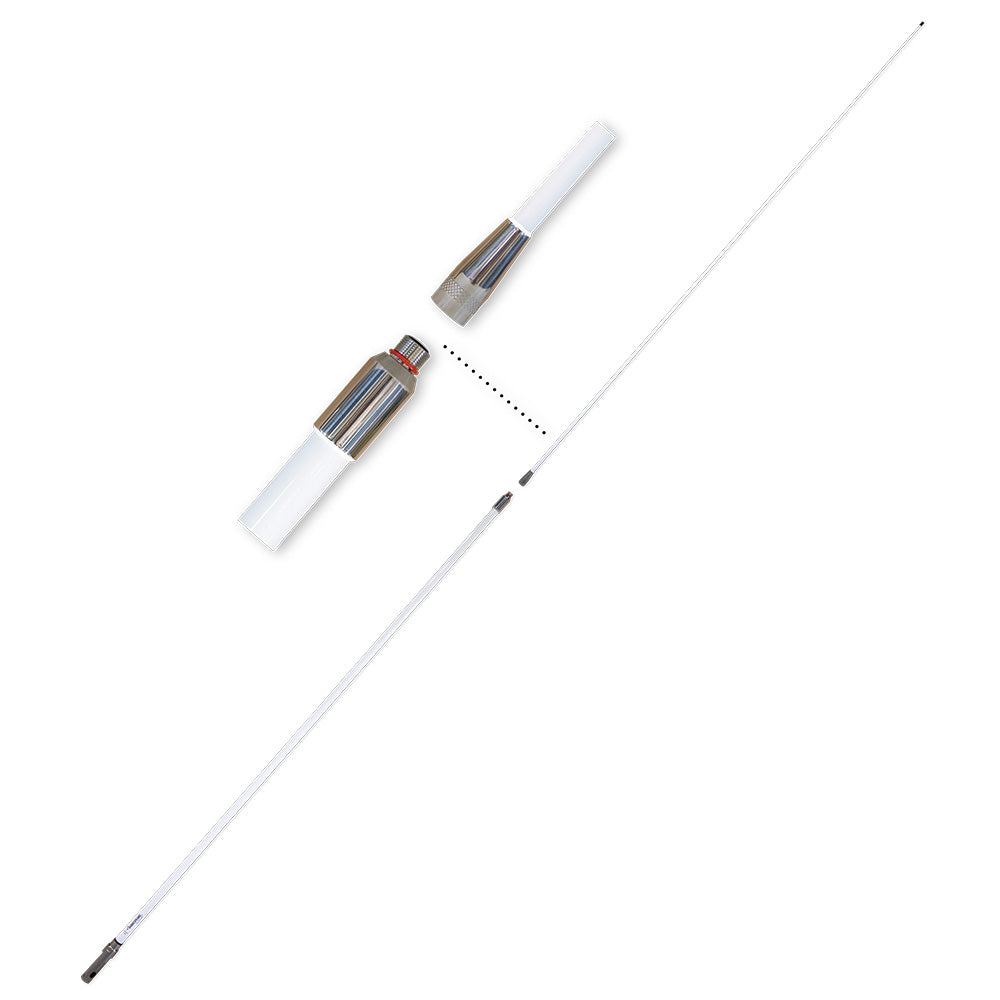

  Two sections: Base 110, Tip 110




Specifications:

• Design: Collinear-phased 1/2-wave elements with choking sleeve


• Height: 18' (5.48m)


• Weight: 20lbs (9kg)


• Gain: 8dB


• Connector Type: SO-239


• Suggested Mounting: 409-R or 410-R


• Impedance: 50 ohms


• Max Input Power: 150W


• DC Grounding: No


• Shakespeare Limited Warranty: 8 years
