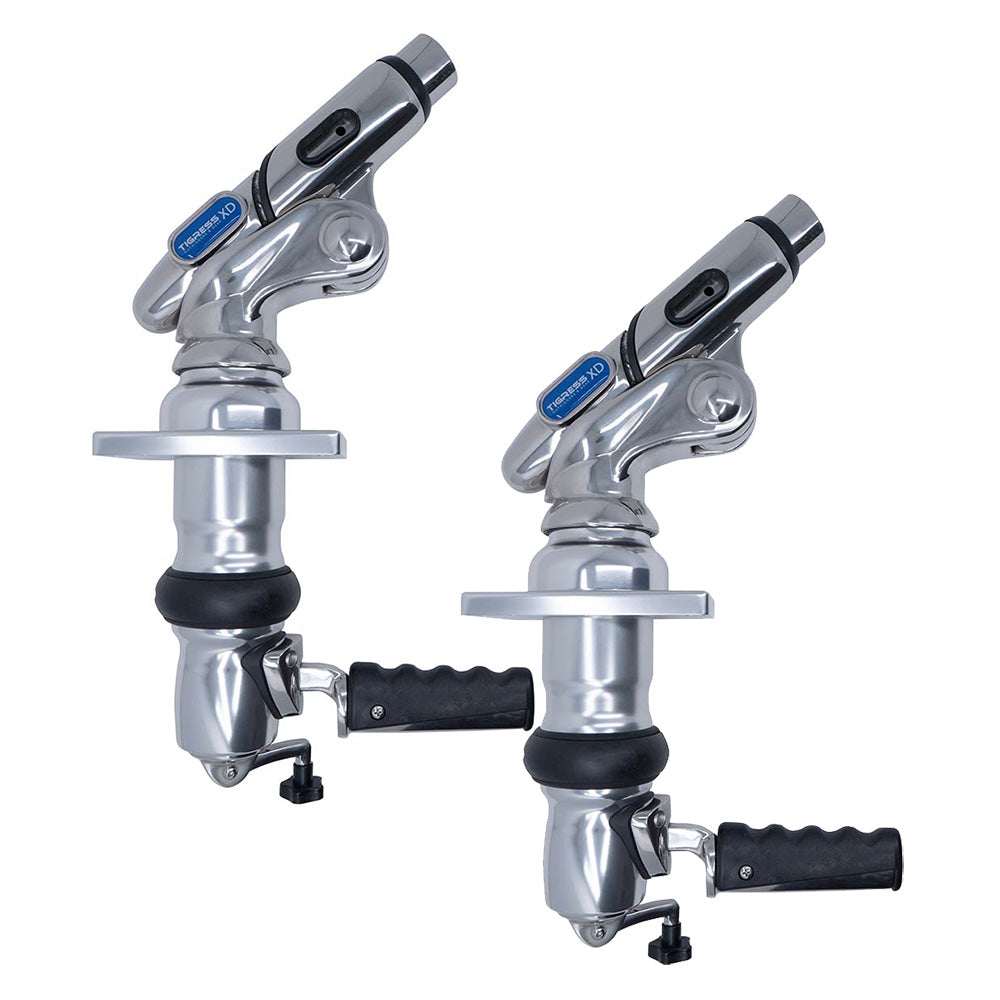

XD Crank Top Mount

Features:

• For use on sport fishing boats up to 50 feet


• Adjustable Upper Arm with Run Laydown position Stops


• User-friendly Folding Crank Handle with Integrated Drive Brake


• Upper-Arm adjusting Ball-bearing drive system, with Integrated Balance Spring-assist


• Extreme Duty Top Plate, Upper Arm, and Housings for Outriggers up to 22ft in length


• Stainless-Steel Bronze bushed Head pivot for Maximum trolling strength durability


• Unique invertible Tigress handle design for use on both soft and hard tops over 2 thick


• Accepts all Tigress XD 1-1/2 butt diameter outriggers and XD 1-1/8 butts using an adapter


• Fits Tigress and other industry-standard 4 x 6 mounting plates (four 5/16 diameter fasteners)


• Extreme-duty 316L Stainless Steel and anodized aluminum and sealed construction with UV protection


• 24 adjustable/locking system positions featuring Tigress XD 316L Stainless Steel design


• Ergonomic 316 Stainless Steel mirror-polished lever design with inverting ability for extra hand clearance on the thickest tops


• User-friendly underside lever actuation, with 8 optional indexable set-up positions


• Fits through all standard 3 diameter mounting plates and hardtop holes


• Sold as pair


• 3-Year Limited Warranty
