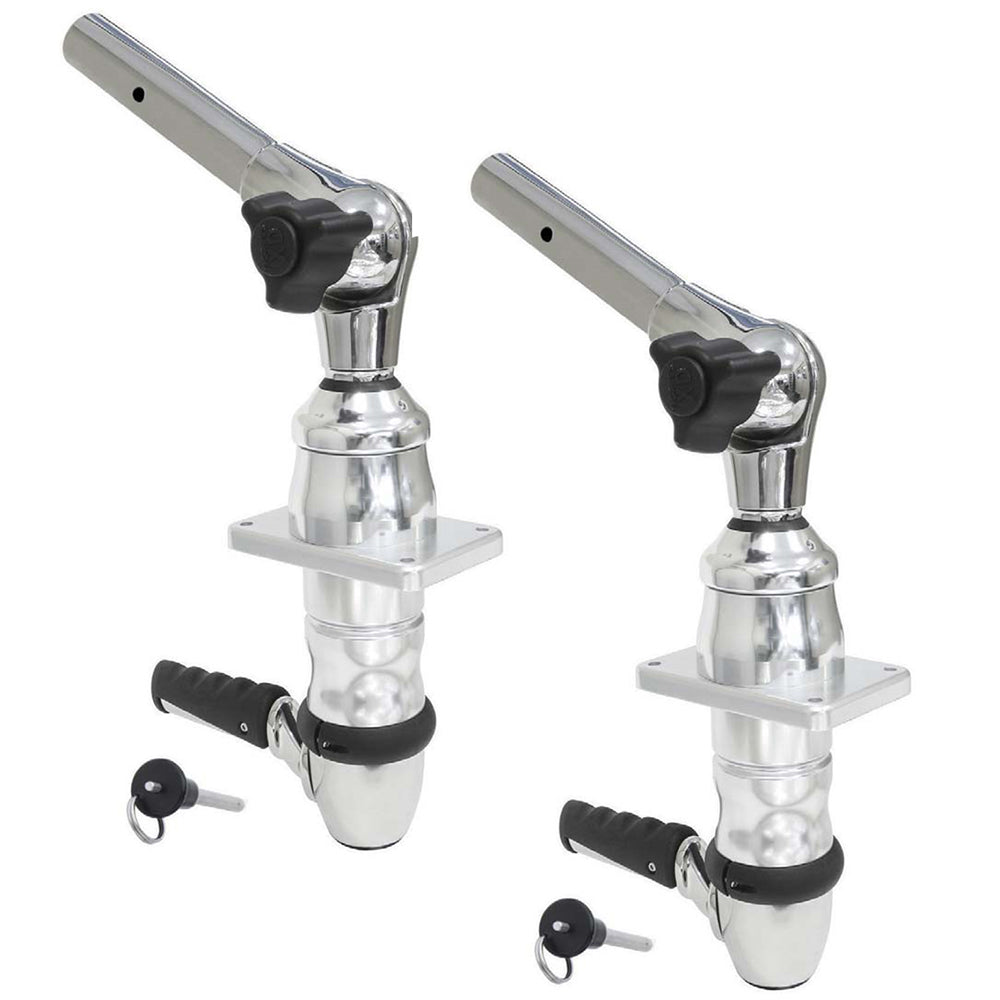

XD Top Mount

For use on sport fishing boats up to 40 feet.

Features:

• Unique invertible Tigress handle design for use on both soft and hard tops over 2 thick


• Accepts all Tigress XD 1-1/2 butt diameter outriggers and XD 1-1/8 butts using adapter


• Fits Tigress and other industry standard 4 x 6 mounting plates (four 5/16 diameter fasteners)


• Extreme-duty 316 Stainless Steel and anodized aluminum and sealed construction with UV protection


• 24 adjustable/locking system positions (15 increments) featuring Tigress XD 316 Stainless Steel design


• 19 upper-arm angle/locking positions (10 increments) using Tigress XD 316 Stainless Steel detent design with ambidextrous horizontal stops


• Tigress XD 316 Stainless Steel detent design with ambidextrous horizontal stops


• Large 3-lobe UV ergonomic knob with integral detent feature when changing outrigger elevation


• Ergonomic 316 Stainless Steel mirror-polished lever design with inverting ability for extra hand clearance on the thickest tops.


• User friendly underside lever actuation, with 8 optional indexable set-up positions


• Standard diameter locking stainless steel push-in-pin for outriggers


• Fits through all standard 3 diameter mounting plates and hard top holes


• Sold as pair


• 3-Year Limited Warranty
