1-1/2 Type A2 Fuel Fill Hose - Sold by the Foot

Trident 1-1/2 ID A2 fuel fill hose for gasoline (including ethanol blends) and diesel (including bio diesel blends).

Features:

• Sold by the foot


• This hose is built with the best fuel, fire, and age-resistant formulation


• Provides extraordinary resistance to aging, fire, heat, cold, and the ozone


• Also, provides excellent bend-ability

Applications:

• Marine Fuel Hose for fill and vent plus diesel distribution


• Approved, for all marine fuels including gasoline, alcohol blends, diesel and bio-diesel

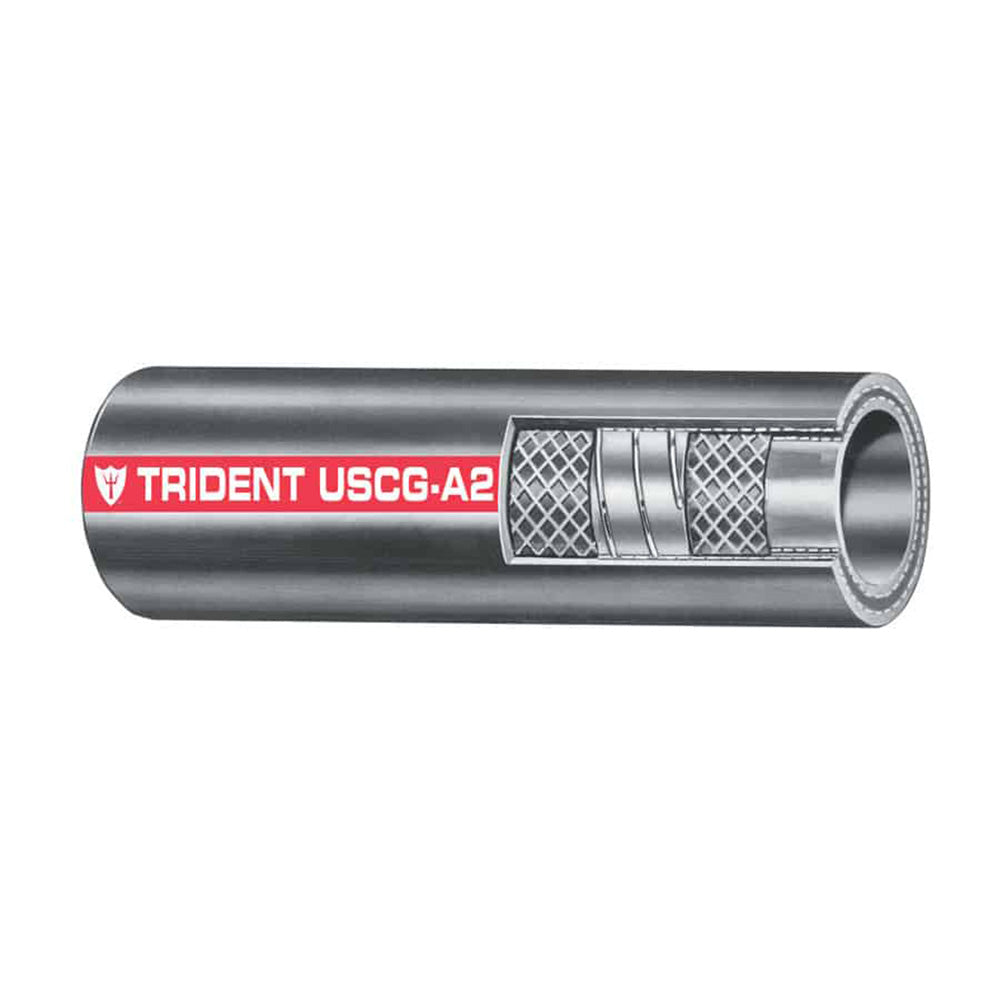

Construction:

• Tube Cover: NBR / Neoprene


• Reinforcement: High tenacity polyester 2 spiral, spring steel helix


• Temperature Range: -20F to 212F (-20C to 100C)

Specifications:

• Inner Diameter: (inch) 1-1/2 / (mm) 38


• Outer Diameter: (inch) 2 / (mm) 51


• Wall: (inch) 0.25 / (mm) 6.4


• Working Pressure: (psi) 60 / (mpa) 0.41


• Bend Radius: (inch) 5.5 / (mm) 140

*The #327 series exceeds ABYC H-24 H-33, SAE J1527, ISO 7840, USCG Type A2; and is NMMA Type Accepted, CE certified, and Lloyds Registry Type Approved
