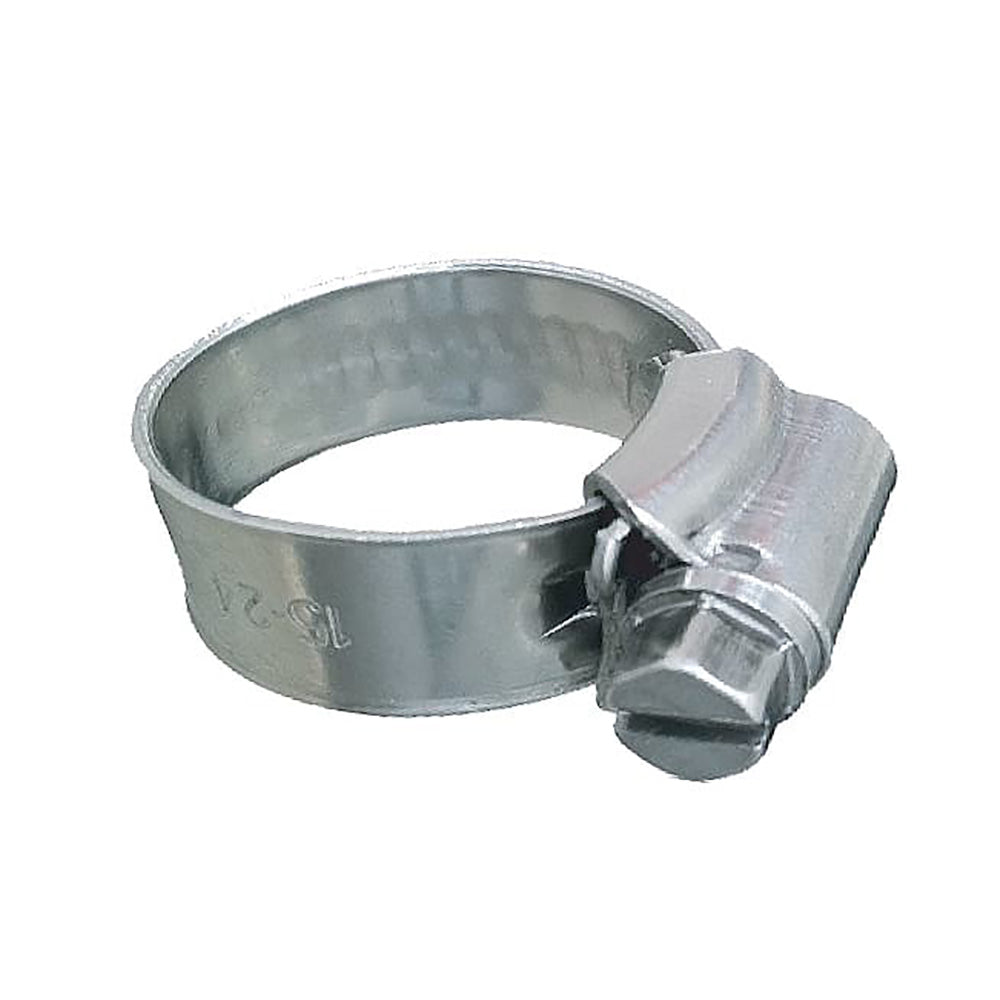

316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - (1-1/16" 1-1/2") Clamping Range - 10-Pack - SAE Size 16

Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel Compact HD NON-PERF Worm Gear Hose Clamp. The 9.7 mm (0.382) wide band is Non-Perforated and smooth on the inside with rolled edges. This eliminates hose damage with increased clamping force. The high strength, compact, one-piece 14mm (0.55) wide housing provides one of the highest clamping force ratings of any worm gear style clamp.

Features:

• The screw head is 7mm


• Long service life and safety for most general-purpose hose applications and connections

Recommendations:

• Measure hose O.D. before selecting clamp size for proper fit


• Double clamp on each hose end for critical applications

Construction:

• Band Housing: 316 Stainless Steel 9.7 mm wide band 0.8mm thick


• Screw Drive: 316 Stainless Steel 7.0 mm screw head

Specifications:

• SAE Size: 16


• Hose Inner Diameter: (inch) 7/8" 1"


• Clamping Range: (inch) (1-1/16") (1-1/2") / (mm) 26-38


• Recommended Torque Inch lbs: 35-45
