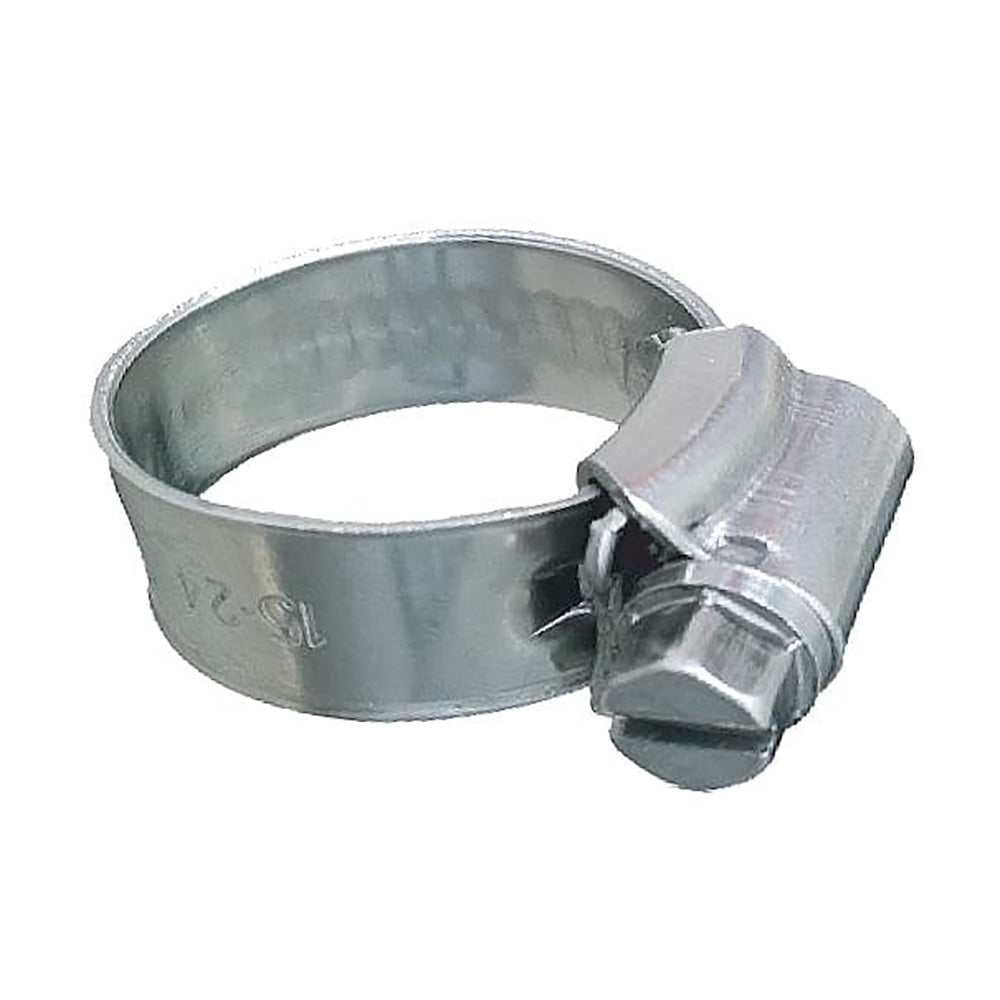

316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - (5/16" 9/16") Clamping Range - 10-Pack - SAE Size 3

Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel Compact HD NON-PERF Worm Gear Hose Clamp. The 9.7 mm (0.382) wide band is Non-Perforated and smooth on the inside with rolled edges. This eliminates hose damage with increased clamping force. The high strength, compact, one-piece 14mm (0.55) wide housing provides one of the highest clamping force ratings of any worm gear style clamp.

Features:

• The screw head is 7mm


• Long service life and safety for most general-purpose hose applications and connections

Recommendations:

• Measure hose O.D. before selecting clamp size for proper fit


• Double clamp on each hose end for critical applications

Construction:

• Band Housing: 316 Stainless Steel 9.7 mm wide band 0.8mm thick


• Screw Drive: 316 Stainless Steel 7.0 mm screw head

Specifications:

• SAE Size: 3


• Hose Inner Diameter: (inch) 3/16" 1/4"


• Clamping Range: (inch) 5/16" 9/16" / (mm) 8-14


• Recommended Torque Inch lbs: 25-35
