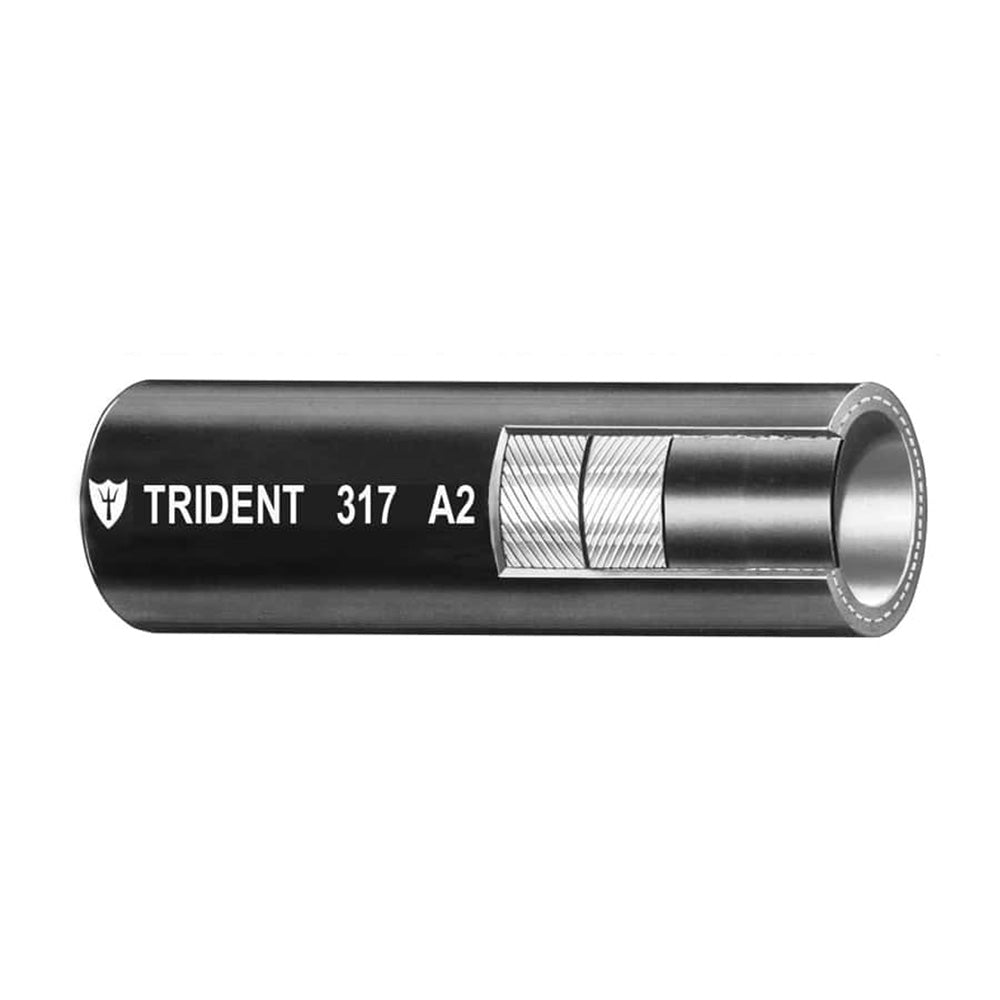

5/8" Type A2 Fuel Vent Line Hose - Black - Sold by the Foot

Trident 5/8 A2 Fuel Hose for gasoline vent hose (including ethanol blends) and diesel (including bio diesel blends). This hose is built with the best fuel, fire and age resistant formulation.

Features:

• Sold by the foot


• Provides extraordinary resistance to aging, fire, heat, cold, and the ozone


• Also provides excellent bend-ability


• NMMA Type Accepted CE certified

Applications:

• Fuel Hose for vent and diesel distribution


• For all marine fuels including gasoline, alcohol blends, diesel and bio-diesel

Construction:

• Tube: Nylon Internal Barrier, NBR


• Cover: NBR/PVC Blend


• Reinforcement: Polyester 2 spiral


• Temperature Range: -20F to 212F (-28C to 100C)

Specifications:

• Inner Diameter: (inch) 5/8" / (mm) 15.9


• Outer Diameter: (inch) 0.960 / (mm) 24.4


• Burst Pressure: (psi) 200 / (mpa) 1.38


• Working Pressure: (psi) 50 / (mpa) 0.34


• Bend Radius: (inch) 3" / (mm) 76.2


• Weight: (lb/100 ft.) 25.84 / (kg/m) 11.72

*The #317 series exceeds ABYC H-24 H-33, SAE J1527, ISO 7840, USCG Type A2
