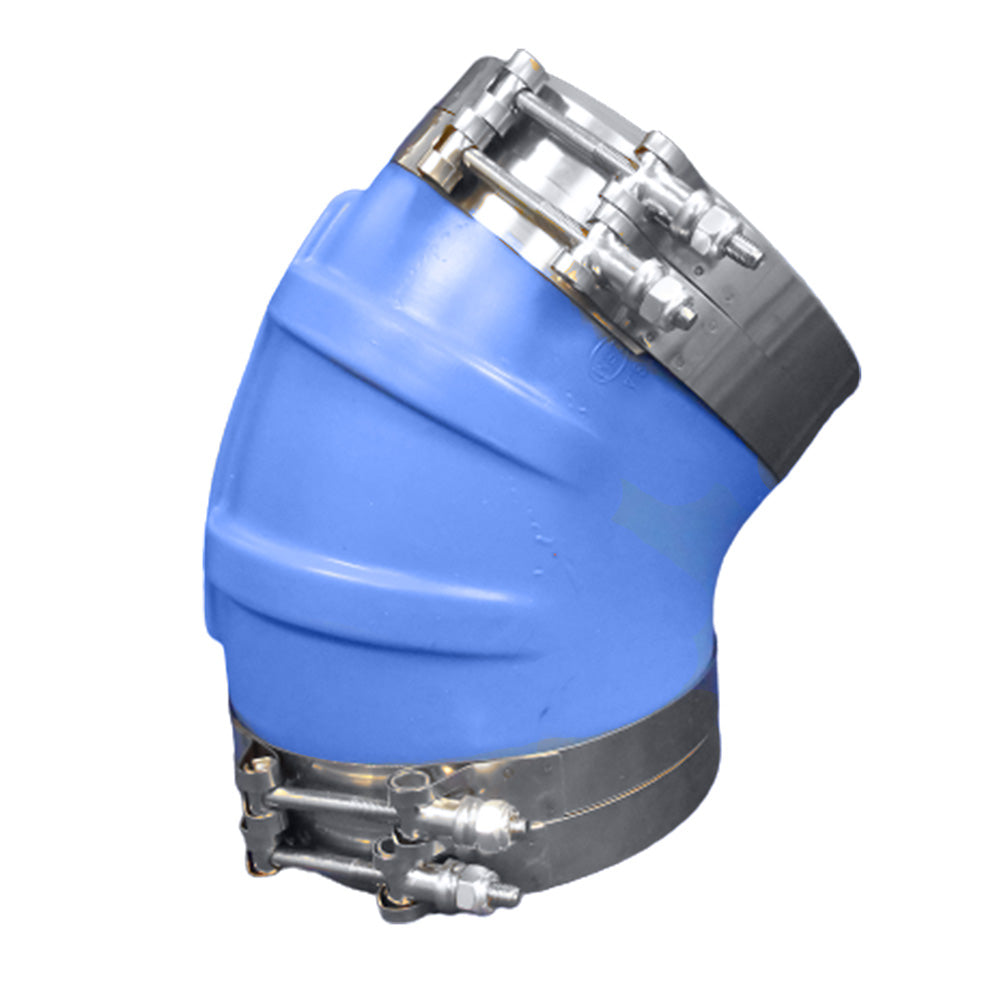

8" ID 45-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover; except elbows of 6" I.D. or larger have molded reinforcing ribs on the outside.

Features:

• Four stainless steel t-bolt clamps


• Very high temp silicone/EDPM blend rubber - molded


• This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging


• Exceeds (SAE J2006-R1, and ABYC NMMA P-1) exhaust standards


• Blue very high-temperature silicone blended with EDPM rubber at 350F (177C) max continuous

Construction:

• Color: Blue


• Reinforcement: Reinforcing ribs on 6 I.D. and above


• Temperature Range: up to 350F (177C)

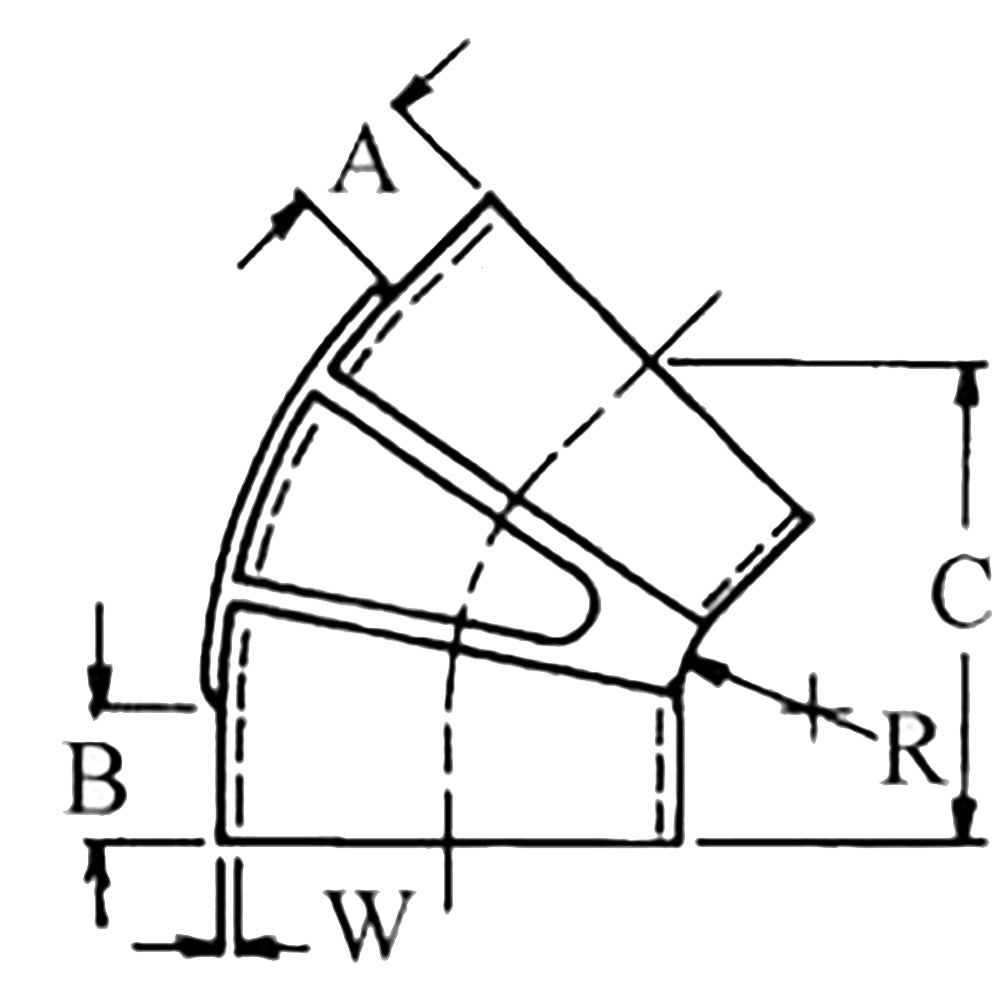

Specifications:

• Inner Diameter: (inch) 8 / 203.2 mm


• A: (inch) 2.25 / (mm) 5.7


• B: (inch) 2.25 / (mm) 5.7


• C: (inch) 8.5 / (mm) 21


• R: (inch) 2.12 / (mm) 5.4


• W: (inch) 0.37" / (mm) 9.4


• Elbow Degree: 45 degrees
