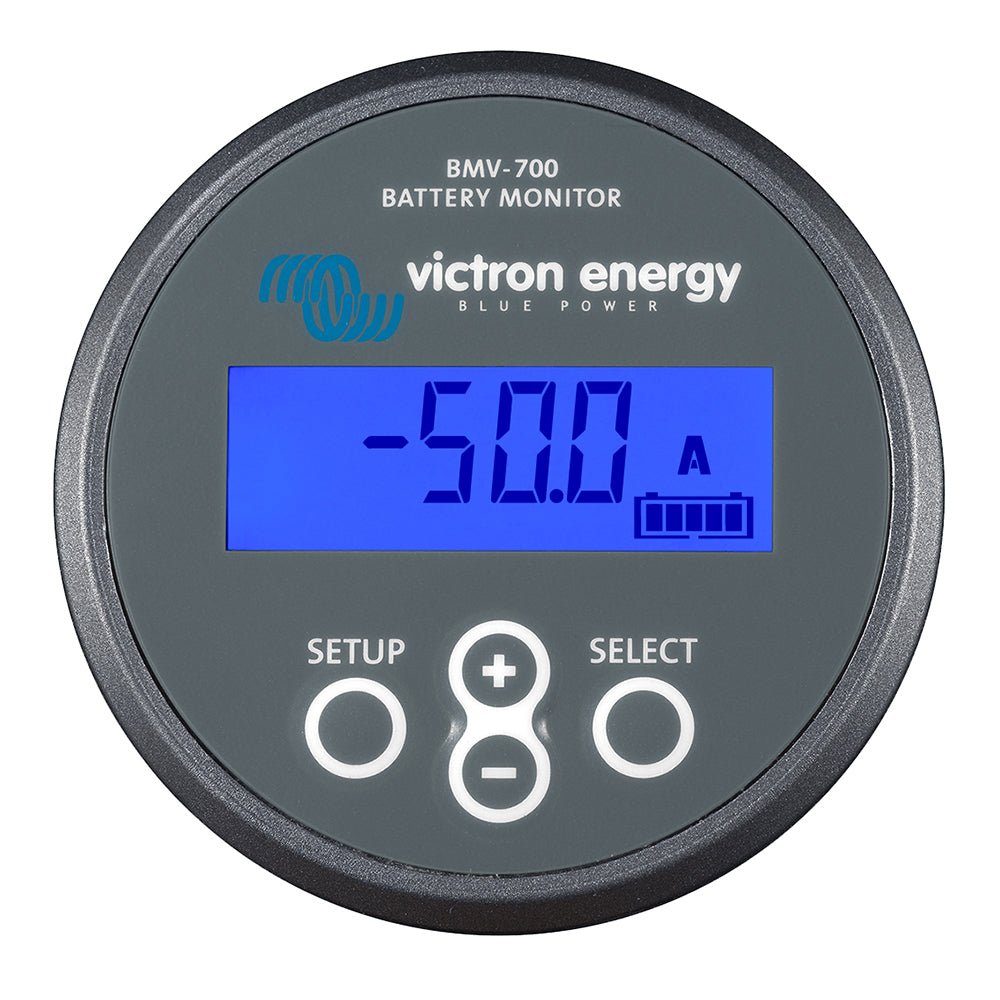

Victron BMV-700 Battery Monitor - Grey

BMV-700 Battery Monitor

The BMV-700 is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.

Features:

• Battery voltage, current, power, ampere-hours consumed and state of charge


• Remaining time at the current rate of discharge


• Programmable visual and audible alarm


• Programmable relay, to turn off non critical loads or to run a generator when needed


• 500 Amp quick connect shunt and connection kit


• Shunt selection capability up to 10.000 Amps


• VE.Direct communication port


• Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health


• Wide input voltage range: 6,5 95V


• High current measurement resolution: 10 mA (0,01A)


• Low current consumption: 2,9Ah per month (4mA) @12V and 2,2Ah per month (3mA) @ 24V

VictronConnect

VictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle.
