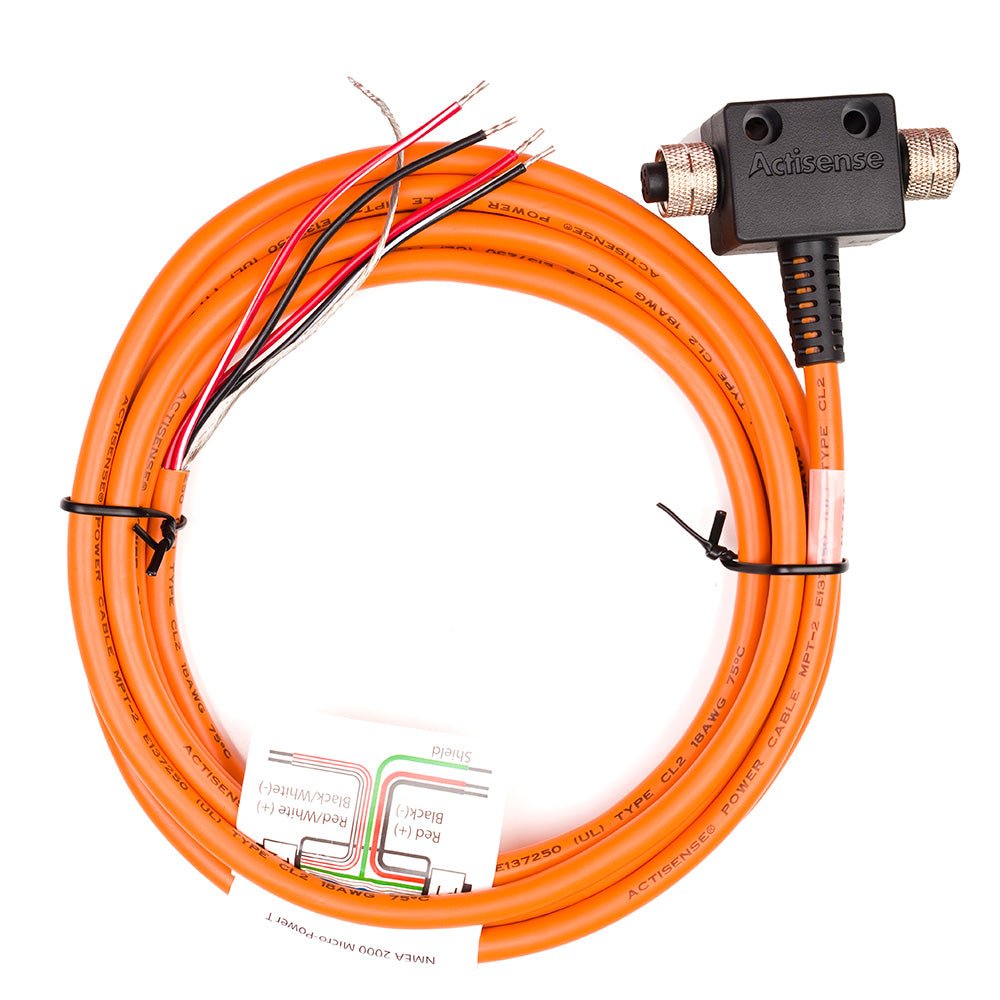

Actisense NMEA2000 Micro T-Piece w/Female Connectors & 3M UL Certified Cable

NMEA2000 Micro T-Piece with Female Connectors 3M UL Certified Cable

The A2K-MPT-2 is a simple, safe, and efficient method of powering an NMEA 2000 network.

Now with improved strain relief!

The Micro Power T can easily provide power to the NMEA 2000 bus with micro-fit connectors to enable plug and play connectivity.

The Actisense-designed connectors are quality-engineered and shaped to allow easy and secure connections, using our specialist interconnect and NMEA knowledge. With its two female connectors, this power T is also fully Devicenet compatible.

The Actisense specified cable is UL certified, and the three-meter cable length ensures that the A2K-MPT-2 offers complete flexibility when installing.

Technical Specifications:

Electrical

• Rated Current - 4A (each feed)


• Rated Voltage - 60VDC

Mechanical

• Female Contact - Phosphor bronze, gold plated


• Contact Carrier - PA66 (30% Glass Filled), Black


• Contact Polarization - Standard M12 -A- polarization


• Mating Thread - M12


• Screw Cap - Brass, nickel plated


• O-Ring Seal - Rubber, black


• Housing - PVC, black


• Cable Jacket Material - 0.8mm Nom. PVC, orange


• Cable Outer Diameter - 6.7mm 0.254mm


• Cable Length - 3M


• Wire Length - 100mm (7mm stripped)


• Wire Jacket - PVC


• Wires - 18 AWG (stripped and tinned)


• Drain - 18 AWG (34-strand tinned copper)


• Shield - Al-mylar


• Weight - 290g

Approvals and Certifications

• Protection - IP67 (when mated)


• Operating Temperature - -20C to +70C


• Storage Temperature - -40C to +85C
