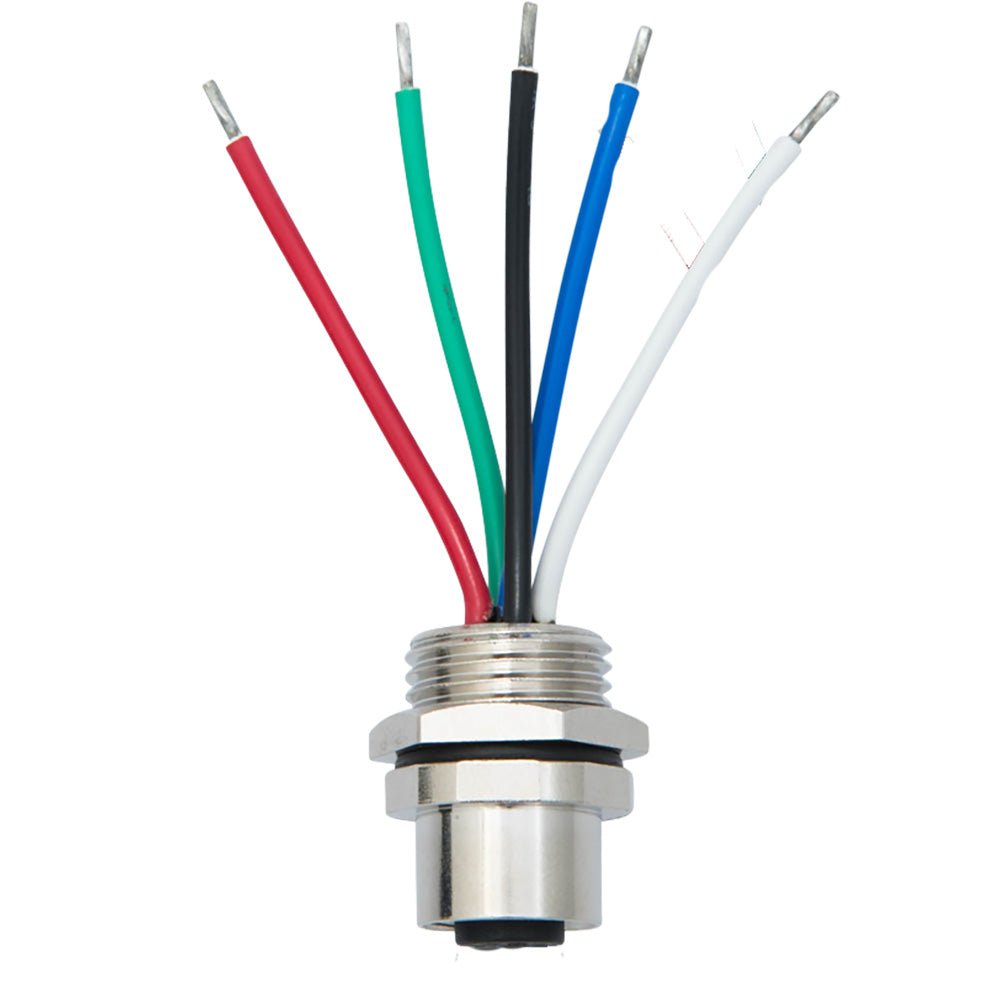

Actisense Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Female

Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Female

Panel-mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.

Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.

The female panel mount wired connector can easily replace any of the existing drop glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Technical Specifications:

Electrical

• Rated Current - 4A


• Rated Voltage - 60VDC

Mechanical

• Contacts - Brass, gold-plated


• Contact Carrier - Nylon GF


• Contact Polarization - Standard M12-A-Polarization


• Mating Thread - M12


• Housing - Brass, nickel-plated


• Mounting Thread - PG9


• Mounting Nut - Brass, nickel plated - PG9


• Mounting Hole Diameter - 15.3mm


• Wires - 18 AWG (stripped and tinned)


• Wire Jacket - PVC


• Weight - 20g

Approvals and Certifications

• Protection - IP67 (when mated)


• Operating Temperature - -25C to +90C


• Connector Specification - Meets IEC61076-2-101
