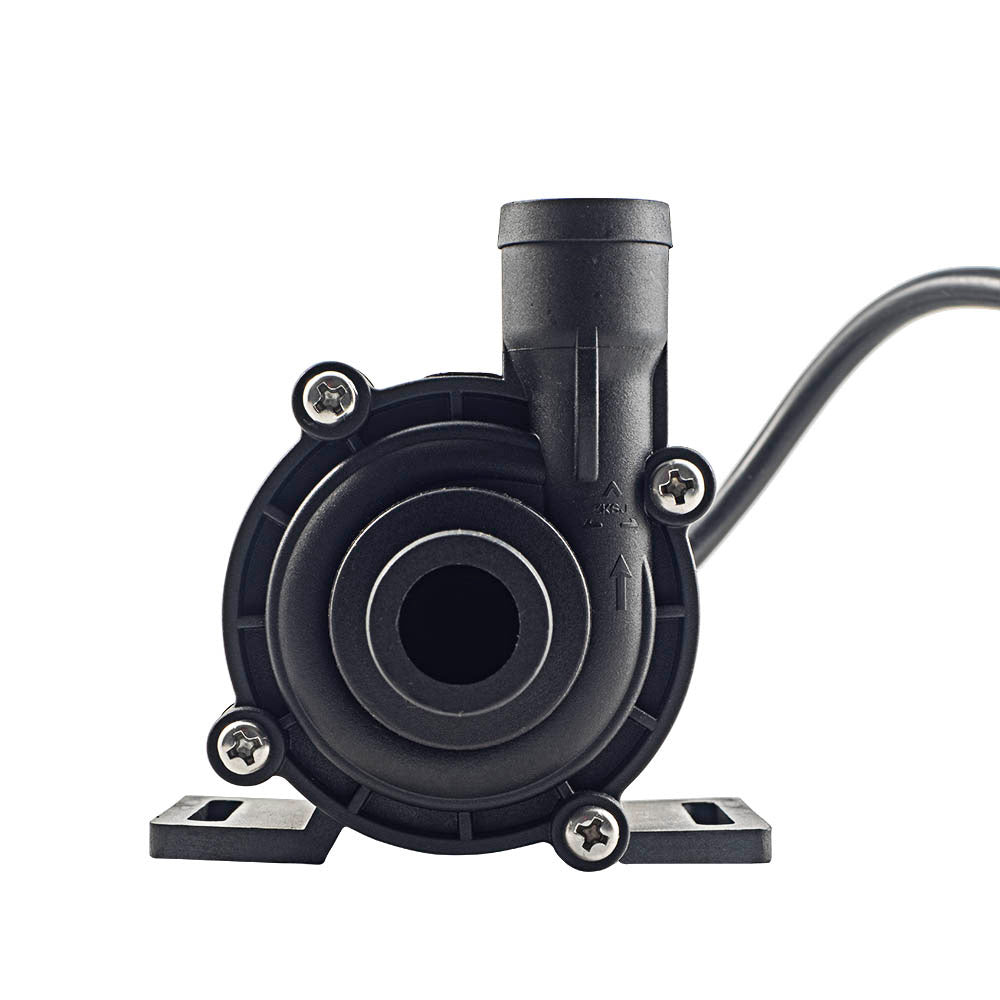

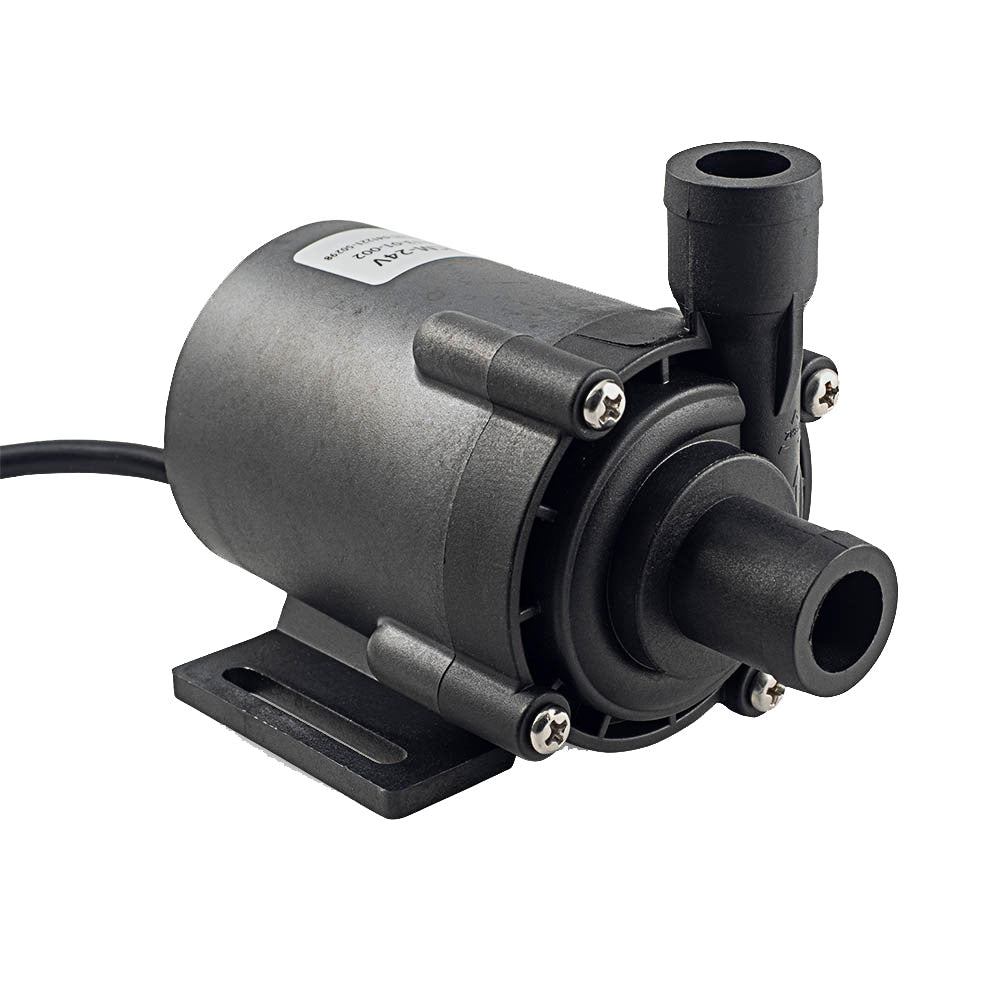

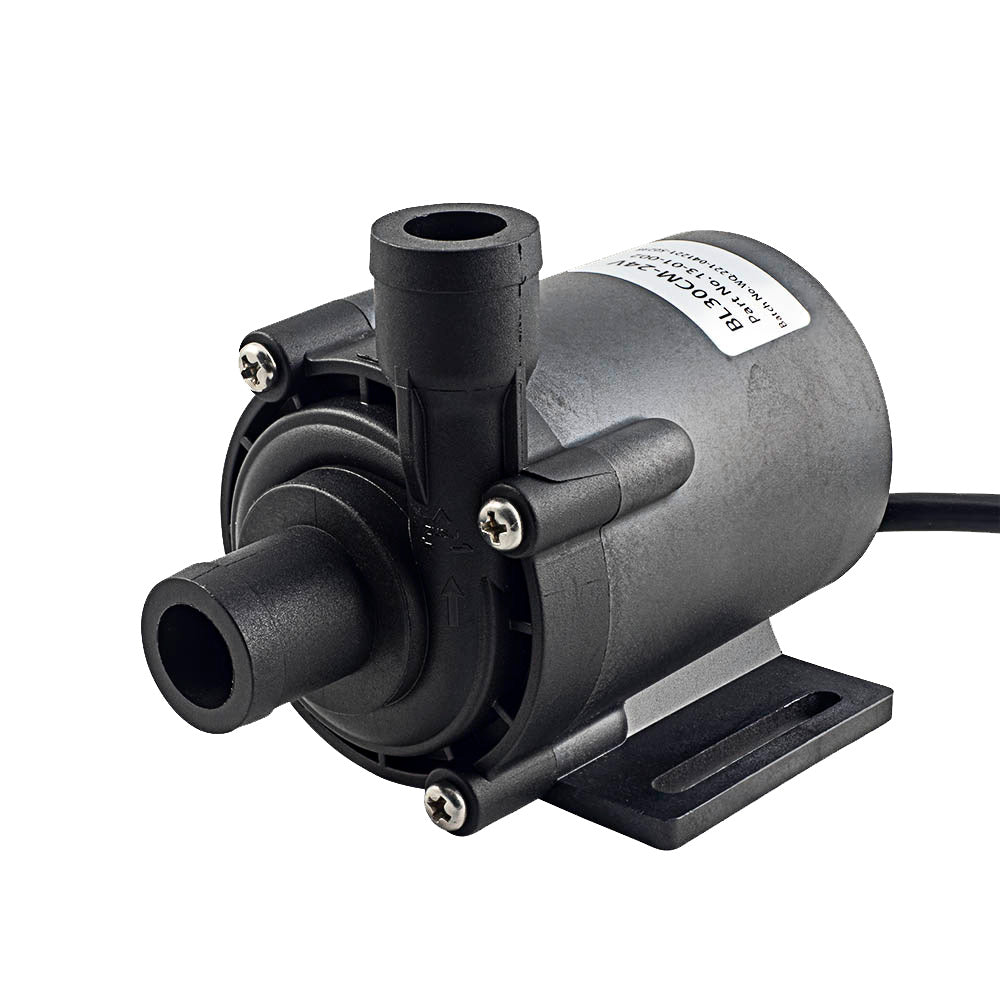

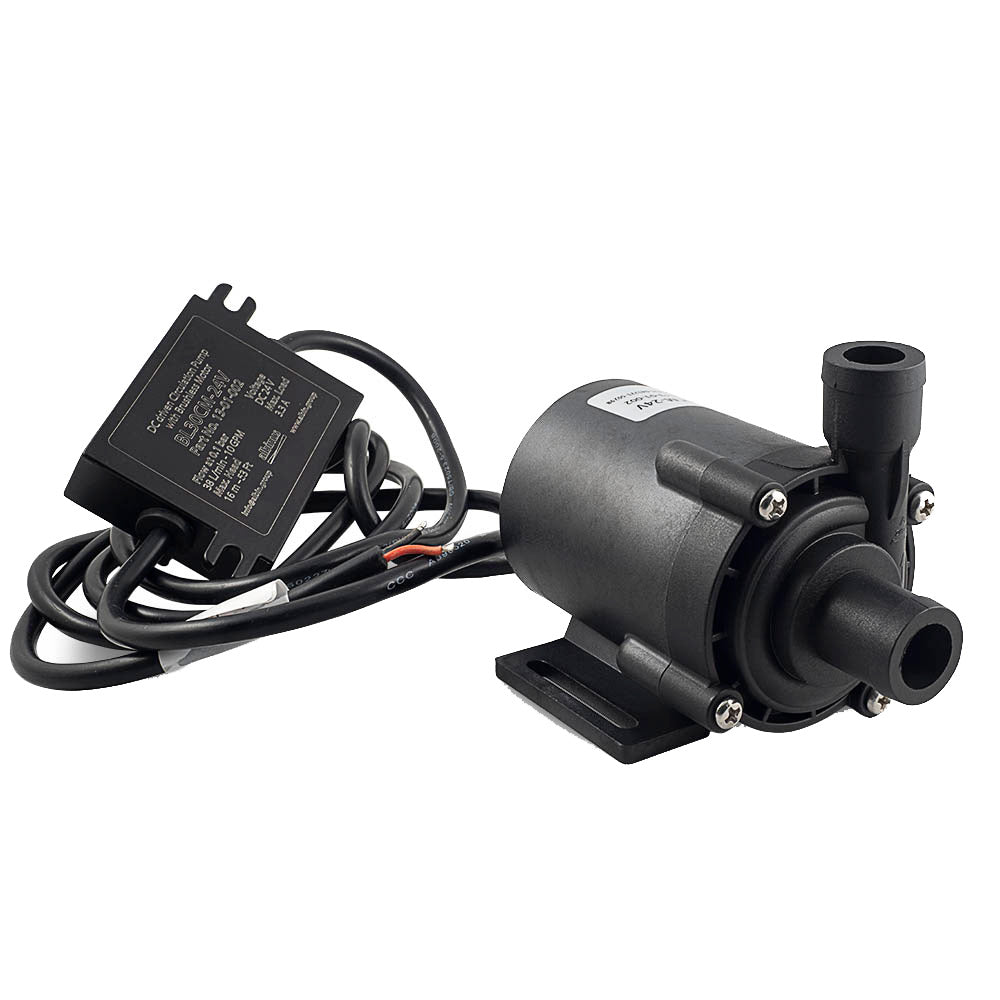

DC Driven Circulation Pump with Brushless Motor - BL30CM 24V

This circulation pump is for the circulation of water/antifreeze in heating or cooling systems on boats, buses, motor homes, and commercial vehicles. There are many advantages to this pump, such as its small size with high efficiency, maintenance-free, ceramic shaft, carbon fiber sleeve, completely waterproof (IP68), brushless DC control, and long service life.

Features:

• Motor brush-less magnetic isolated design


• For continuous duty


• Life span: 20,000 hours


• Materials of pump housing: ABS, PES/SPS/PA66


• Motor IP classification: IP 68


• Noise class: 35dB


• The max liquid temperature for continuous Duty is 80C Intermittent is 100C

Specifications:

• Port size: (inch) 3/4" / (mm) 20


• Weight: 0.48 kg


• Capacity at 0.1 bar: 38 l/min


• Capacity at 0.25 bar: 36 l/min


• Max load: 3.3A


• Max power consumption: 80W

*Includes pump and motor
