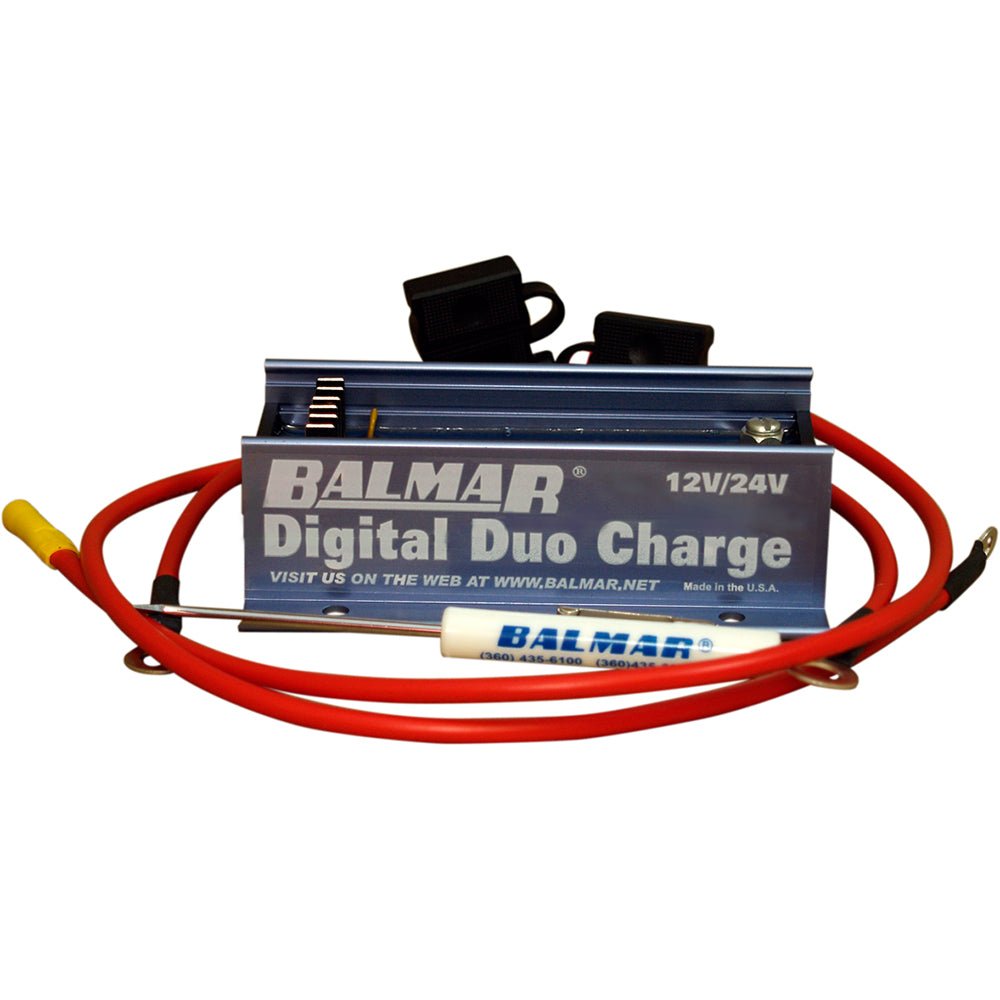

Digital Duo Charge - 12/24V

The Digital Duo Charge (DDC-12/24) provides a hands off solution for charging two battery banks without the use of problematic isolators or manual battery switches. During charging the DDC-12/24 monitors voltage at the house battery. When voltage exceeds the set minimum (typically 13.2V in a 12V system and 26.4V in a 24V system) the DDC-12/24 automatically engages, providing up to 30A charge current to the starting battery. When no charge source is present, the DDC-12/24 separates the batteries so the starting battery wont be accidentally discharged into the house battery. An optional solenoid control enables higher start battery charging output when required.

Features:

• Multi Bank Charging


• The DDC is a Solid-State Battery Combiner


• Control Voltage and Current between House and Start Batteries


• Eliminates the Need for an Isolator, Relay or Manually Operated Battery Switch


• Used in Concert with Max Charge or ARS-5 Regulators


• Can also be Employed without a Balmar Regulator


• Works in Both 12V and 24V Applications


• House and Start Batteries can be different technologies


• Start Battery Temperature Sensing Available with the MC-TS-B Sensor Cable


• 4 Battery Programs Supported for the Start Battery:


• Standard Flooded, Deep Cycle Flooded, AGM and Gel Cell
