11003

Features:

• Meets American Boat and Yacht Council (ABYC) requirements for battery switches




• Ignition protected safe for installation aboard gasoline powered boats

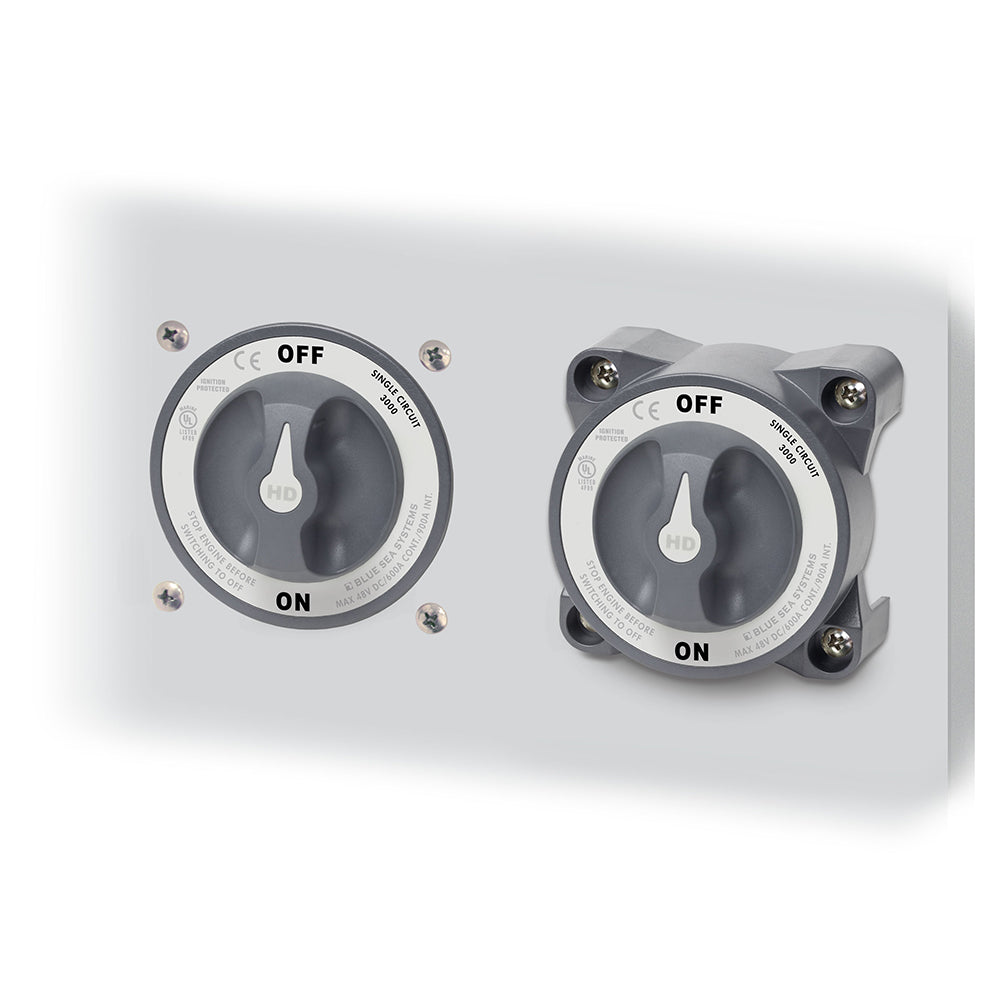

• Case design allows surface or rear panel mounting




• Accepts two 4/0 AWG (95mm) battery cables

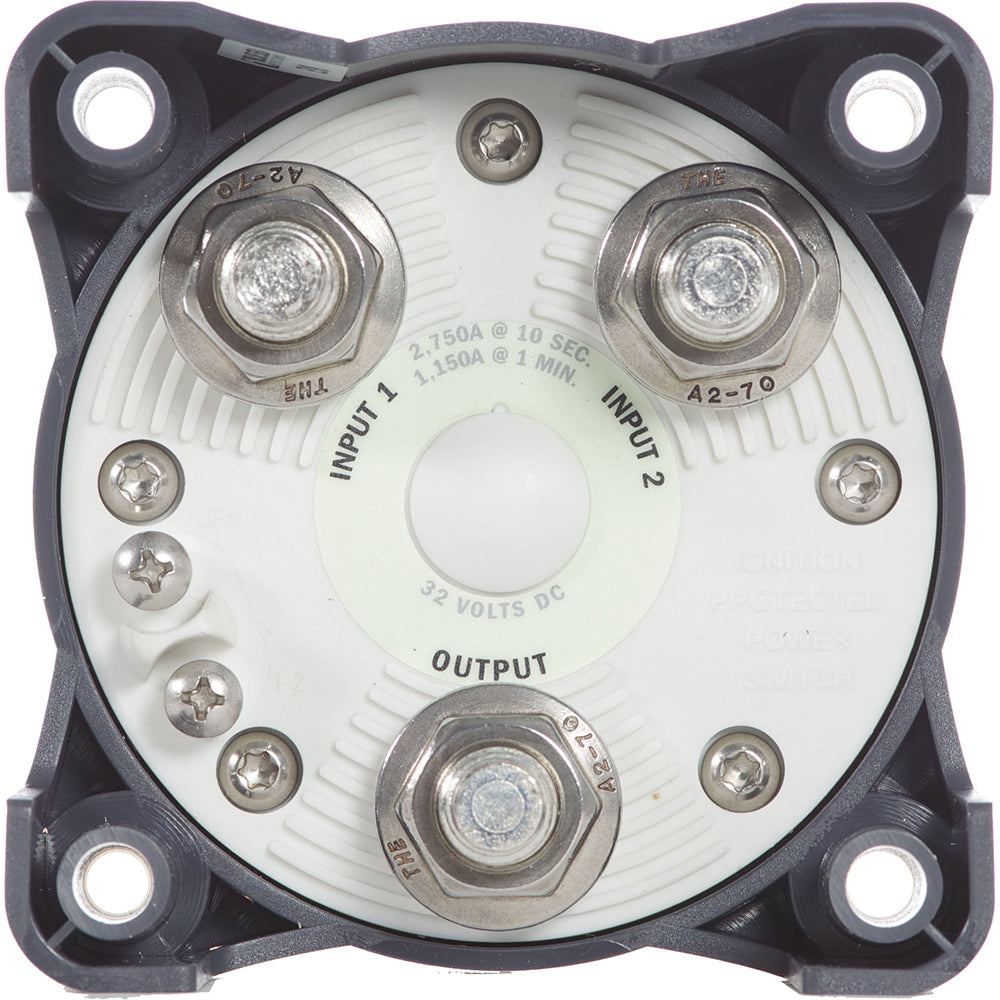

• M12 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 1/2" and M12 ring terminals




• 7/8" (22.22mm) stud length to accept multiple cable terminals




• Tactile textures indicate knob position by feel only




• Case design allows surface or rear panel mounting

10 Sec: 2750A
60 Sec: 1150A
5 Min: 700A
Continuous: 500A
Max Voltage: 32V DC
