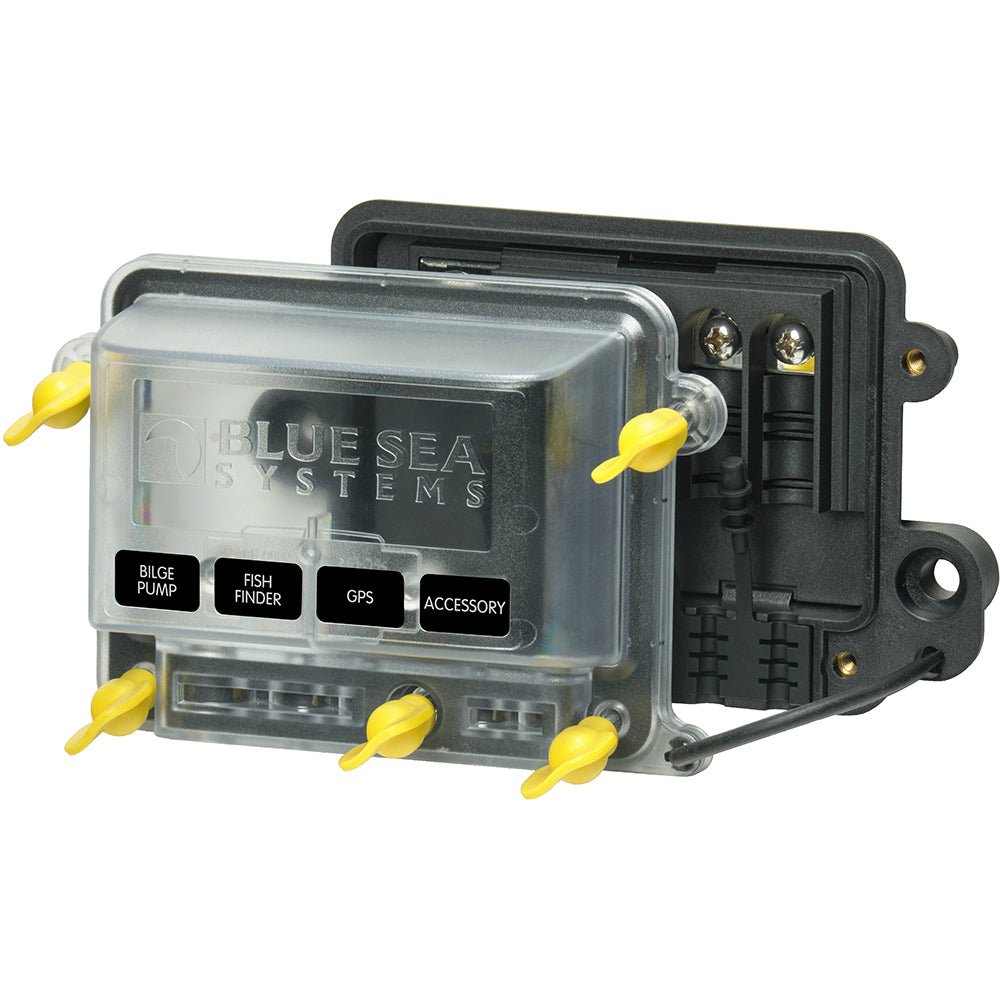

2356100 - Water Resistant 100A Busbar with Cover

Water-resistant bussing for harsh environments. Built with wing screws for toolless access.

Features:

• Accepts a wide range of wire sizes


  • Includes 3 wire plugs to maintain a water-resistant rating if less than 4 wires are used


  • Nests with other water-resistant 100A common busbars and ST-Blade water resistant fuse block for space-saving wiring


  • Ideal for positive distribution and for the collection of negative or AC ground circuits


  • Meets ABYC/USCG insulation requirements


  • Tin-plated copper busses and fuse clips


  • Includes four (4) write-on circuit labels


  • Small format standard and custom labels are available


  • Wing-screws designed for tool-free installation of cover to meet ABYC compliance





Technical Specifications:

• Cover - yes


• Maximum Voltage - 300V AC - 48V DC


• Terminal Stud - 1 x #10-32


• Continuous Rating - 100A AC or DC


• Bus Material - Tin-plated Copper


• Mounting Holes - Accepts 1/4" (6mm) screws


• Terminal Screws - 4 x # 8-32


• Wire Size - Input - (1) 8 AWG to 4 AWG


• Wire Size - Load - (4) 16 AWG to 10 AWG

In the Box:

• 2356100 Busbar


• Instruction Manual

*Sold as an Individual
