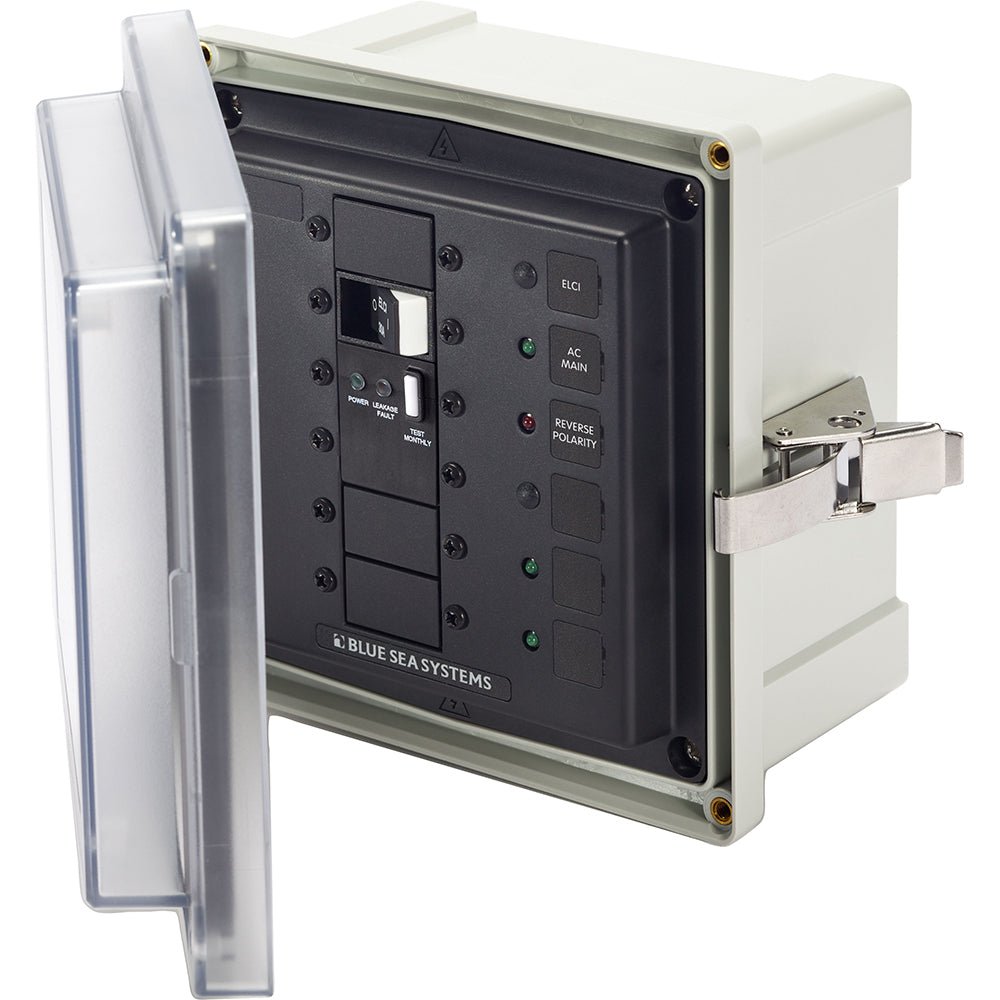

3118 - SMS Panel Enclosure with ELCI (50A) and 2 Blanks - 120V AC

The 3118 panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.

Features:

• Blank apertures for custom breaker loading


• Glass filled polycarbonate base


• Clear cover allows easy view of circuit breaker status


• Overlapping cover for strength and increased gasket protection


• Oversized, formed in place seamless PUR gasket


• Easily removable stainless steel hinge pin for unobstructed installation


• Stainless steel latch secures cover without penetrating the enclosure


• Blank circuit positions accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers


• Includes waterproof glands


• LED lights for back lighting and ON indication

Technical Specifications:

• Circuit Breaker Type - 1 x ELCI Main (50A) 120V and 2 x Blanks


• Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)


• Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)


• LEDs Installed - 1 x Red (Reverse Polarity - 120V AC and 3 x Green ON (120V AC)

In the Box:

• 3118 Enclosure


• Glands x 5


• Labels


• Mounting hardware


• Instruction manual

*Sold as an Individual
