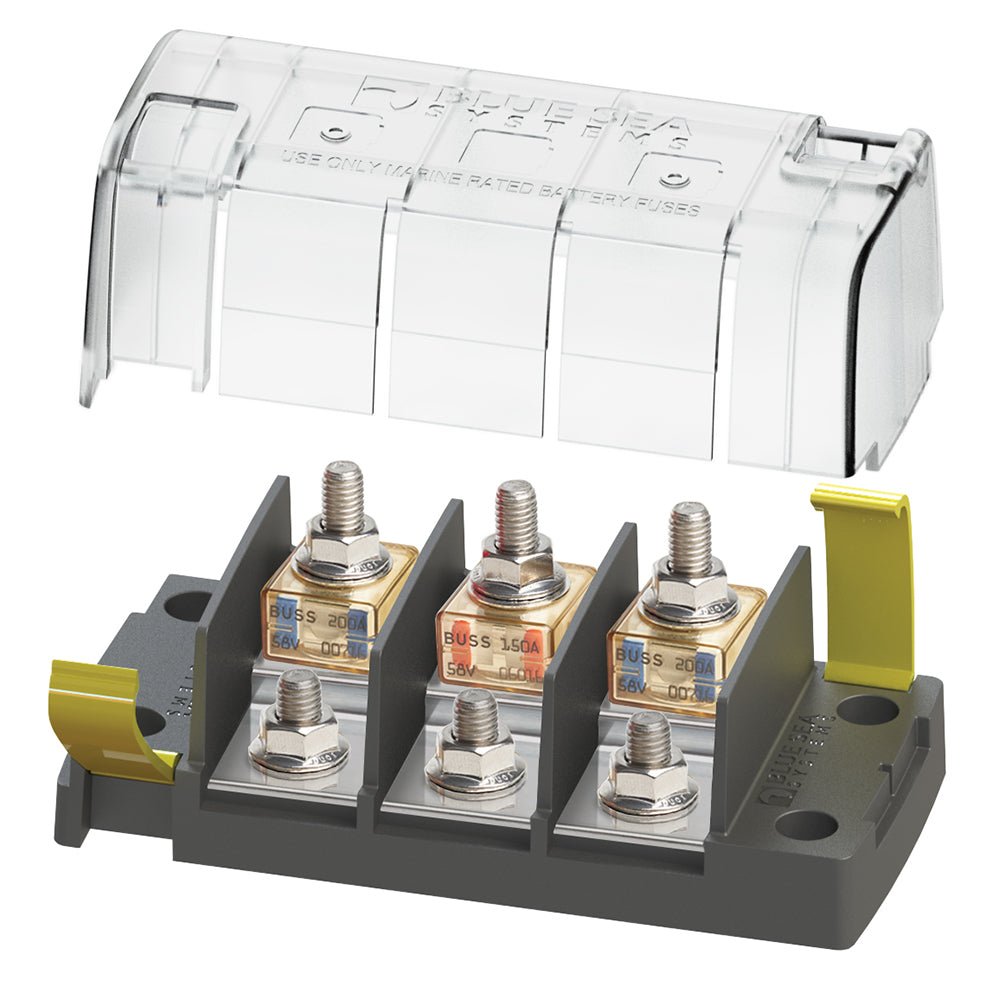

Surface Mount 3 Circuit Fuse Block - Independent Source

• Surface mount fuse blocks accommodate three MRBF fuses for consolidated high amperage circuit protection


• The independent source fuse block (5194) is ideal for 3 output battery chargers


• The common source fuse block (5196) provides 3 loads from a single source


• Clip-on cover insulates terminal connections


• Versatile wiring options allow all wires to come out a single side


• Label recesses for easy circuit identification


• One-piece stainless flange nuts ensure safe and secure connections

Specifications

• Ignition Protected: Yes


• Maximum Amperage: 240 per circuit


• Maximum Voltage: 58v DC


• Maximum Torque: 100 in-lb


• Terminal Stud Size: M8 (5/16"-18)
