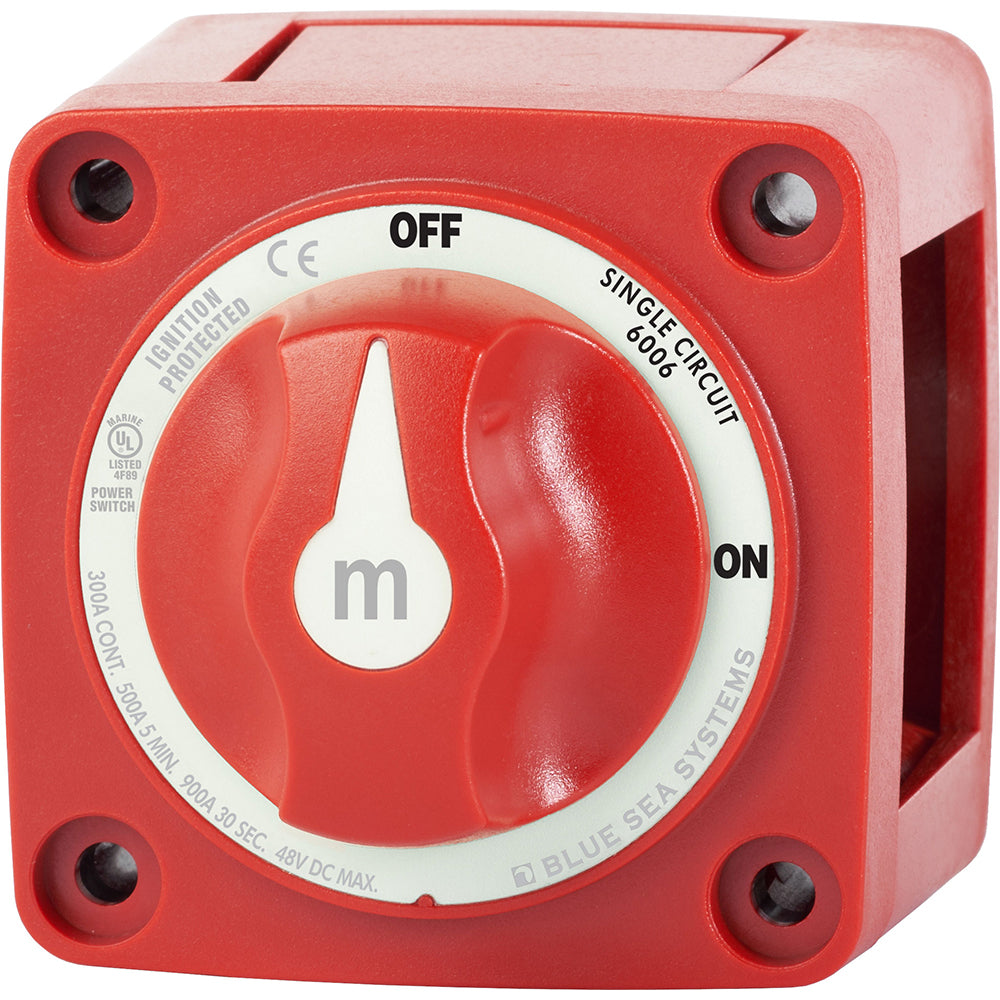

6006
m-Series (Mini) Battery Switch

Single Circuit ON/OFF

• Switches a single battery to a single load group




• Multiple switches can be used to manage several isolated circuits including cross conntecting for emergency paralleling

• Ignition protected - Safe for installation aboard gasoline powered boats

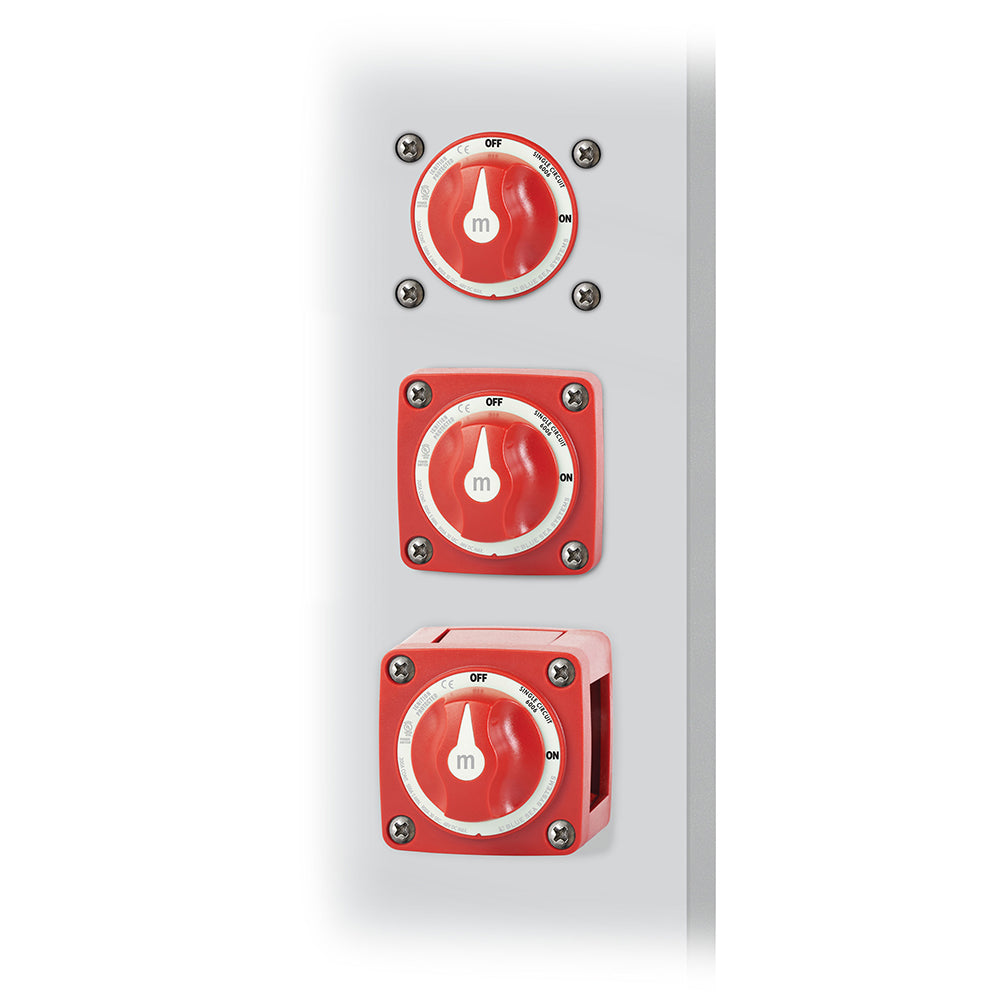

• Case design allows surface, front panel, or rear panel mounting




• Isolating cover with snap-on sections protects rear contacts

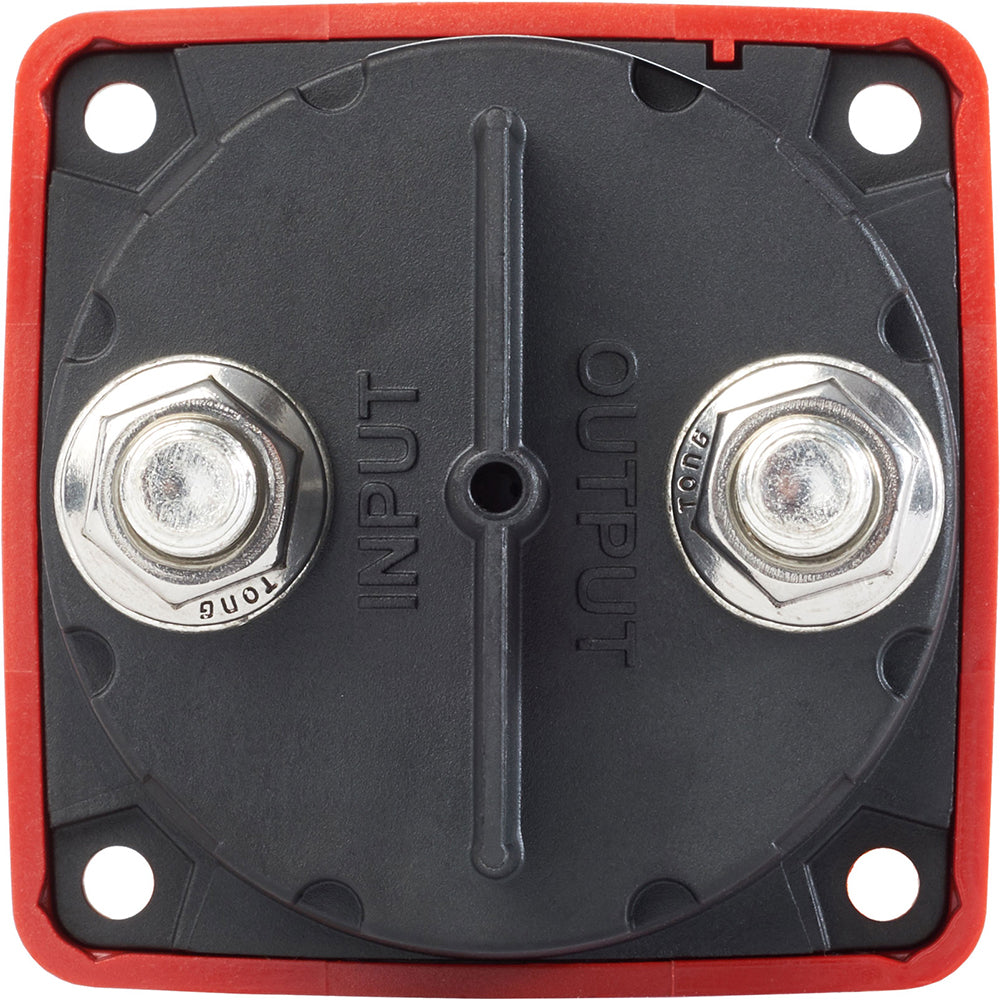

• 3/8-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8 and M10 ring terminals




• 7/8 (22.22mm) stud length to accept multiple cable terminals




• Ideal for marine or RV applications




• All non-corrosive marine grade metals




• Molded in durable reinforced polycarbonate




• Tactile textures indicate knob position by feel only

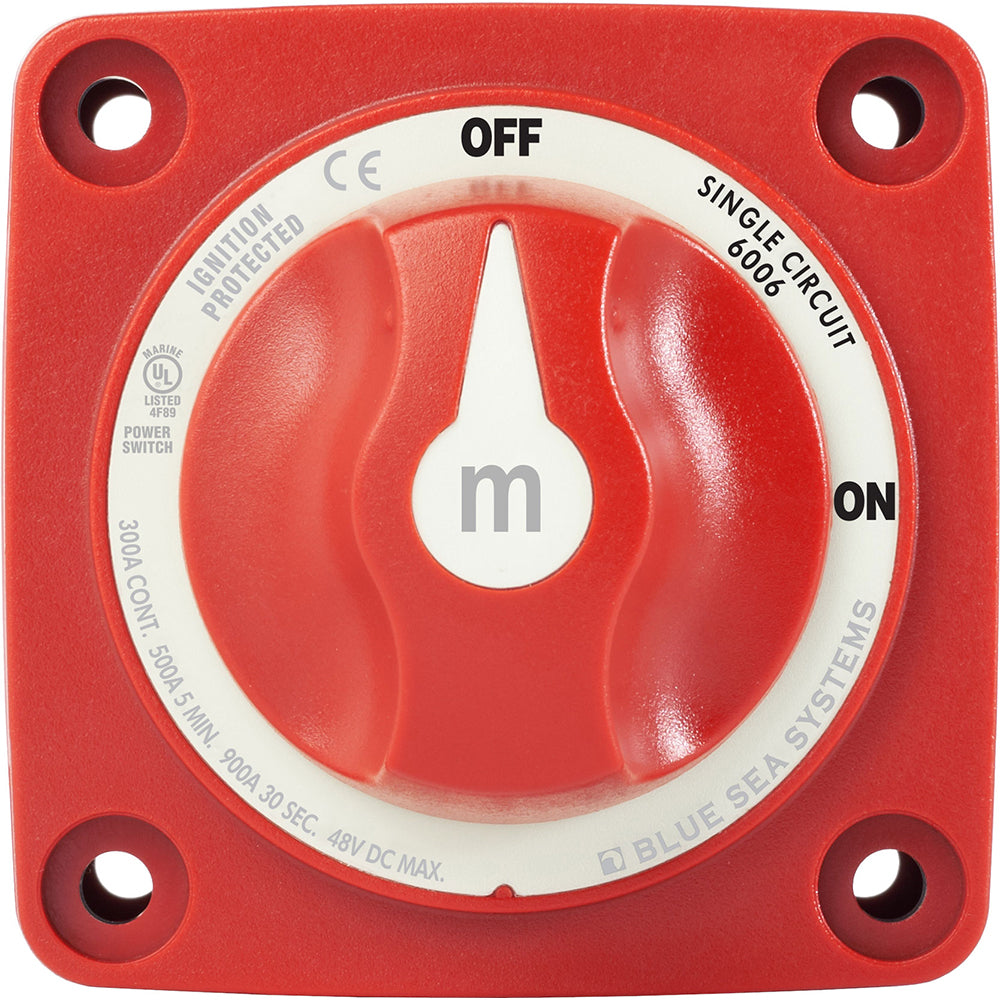

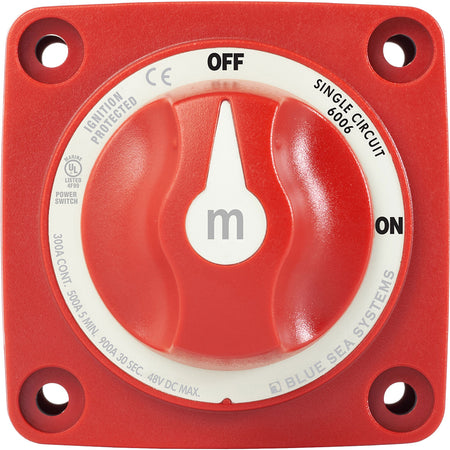

• Label with international ON/OFF legends




• Removable key or knob remains positively retained




• ICON label set included for circuit identification
