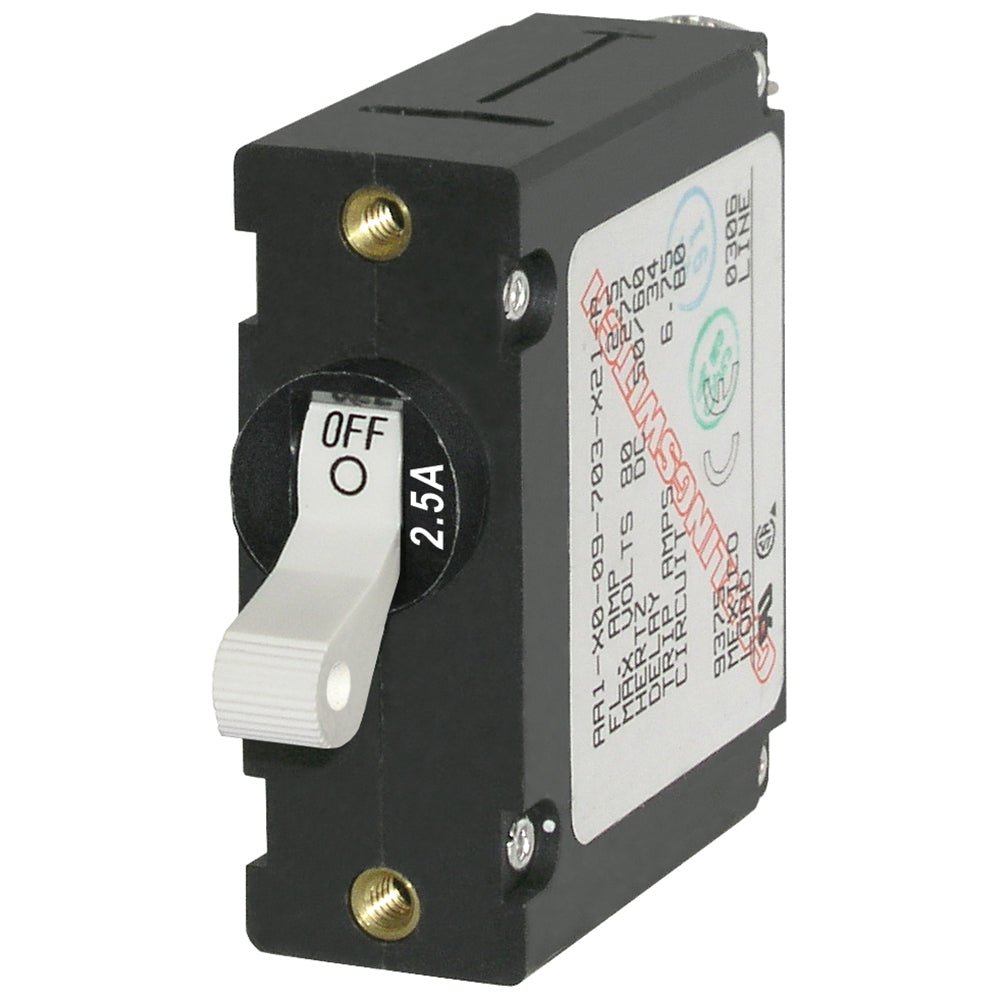

A-Series White Toggle Circuit Breaker - Single Pole 2.5A

• Meets American Boat and Yacht Council (ABYC) standards




• The industry standard circuit breaker for Blue Sea Systems" electrical panels




• Combines swtiching and circuit protection into a single device




• "Trip Free" design cannot be held "ON" during fault current condition

• Amperage: 2.5A AC / 2.5A DC




• Color: White




• Actuator Style: Toggle




• Poles: 1




• Maximum Voltage: 250V AC / 65V DC




• Circuit Breaker Type: Magnetic Hydraulic - trip free




• Interrupt Capacity: 3000A @ 120V AC / 1500A @ 250V AC [TUV] / 3000A @ 250V AC [UL 1077] / 7500A @ 65V DC




• Minimum Operating Temperature: -40 C




• Maximum Operating Temperature: 85 C




• Mounting Screw: #6-32 Stainless Steel




• Mounting Screw Torque: 6 in-lb (0.68 Nm)




• Screw Terminal Torque: 14 in-lb (1.58 Nm)




• Switching Cycles: 10000




• Terminal Screw: #10-32 Stainless Steel




• Weight: 0.17lb (0.08 kg)
