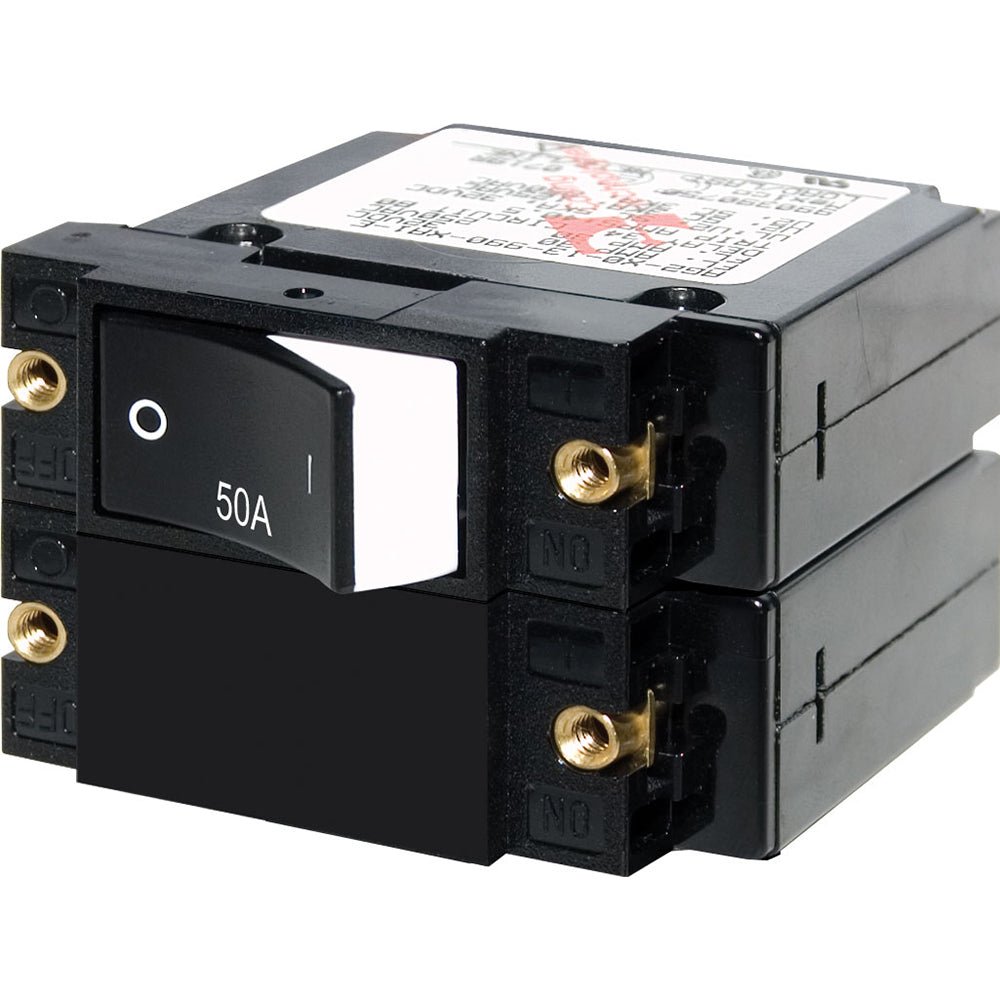

A-Series Raised Rocker Circuit Breaker - Double Pole - 50A

Features:

• Color actuator indicates "OFF" position




• "Trip Free" design cannot be held "ON" during fault current condition




• International ON/OFF symbols support vertical or horizontal mounting

• Amperage: 50A AC / 50A DC




• Actuator Style: Raised Rocker




• Poles: 2




• Maximum Voltage: 120V AC / 240V AC / 32V DC




• Circuit Breaker Type: Magnetic Hydraulic - trip free




• Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC




• Minimum Operating Temperature: -40 C




• Maximum Operating Temperature: 85 C




• Mounting Screw: #6-32 Stainless Steel




• Mounting Screw Torque: 6 in-lb (0.68 Nm)




• Screw Terminal Torque: 14 in-lb (1.58 Nm)




• Switching Cycles: 10000




• Terminal Screw: #10-32 Stainless Steel




• Weight: 0.38lb (0.17 kg)
