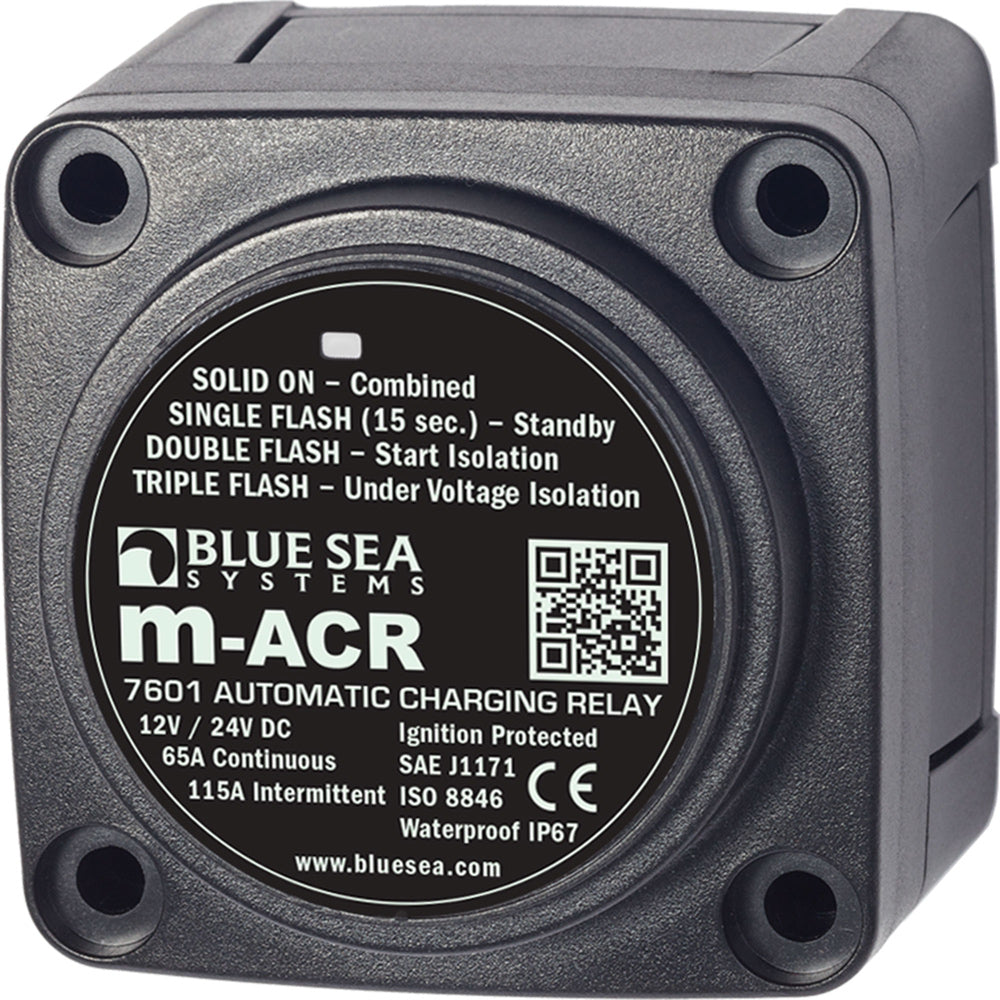

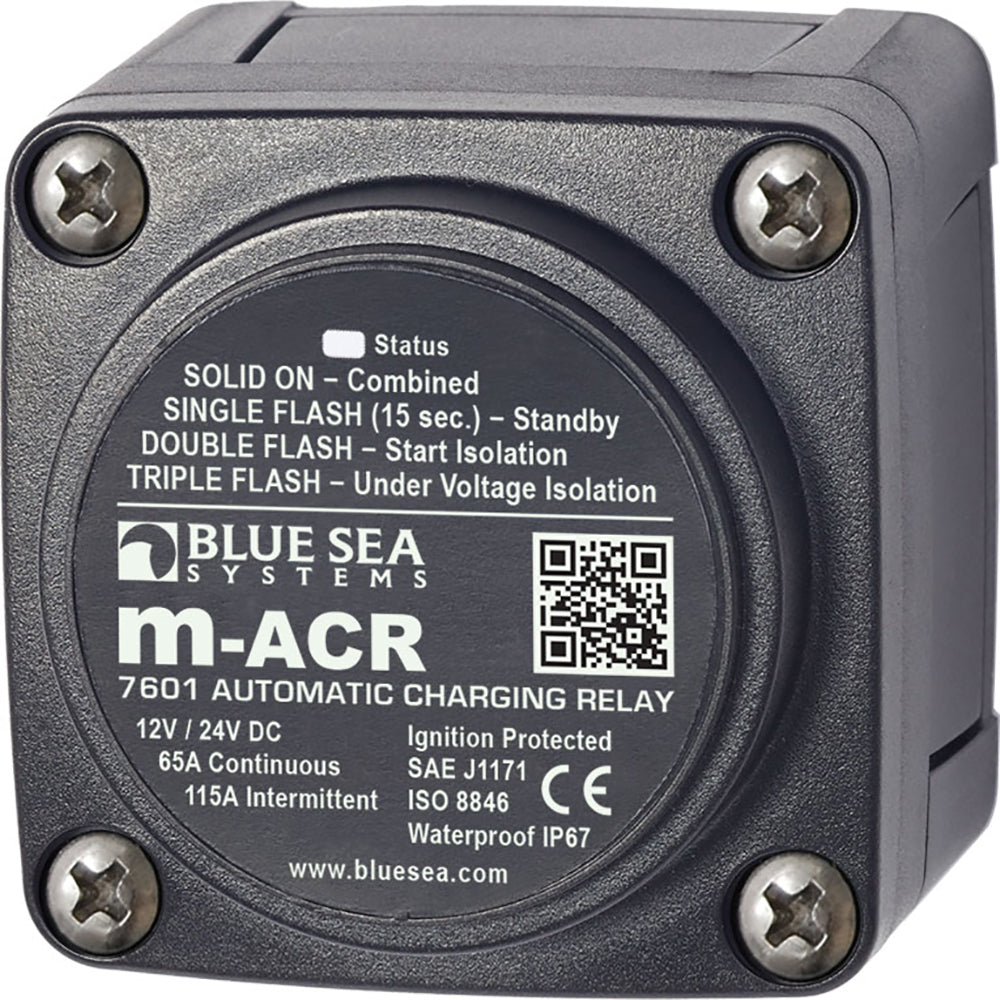

7601 DC Mini ACR Automatic Charging Relay - 65 Amp

Features:

• 65 Amp continuous rating manages the charging current from alternators up to 65 Amps found on most outboards and many inboard engines

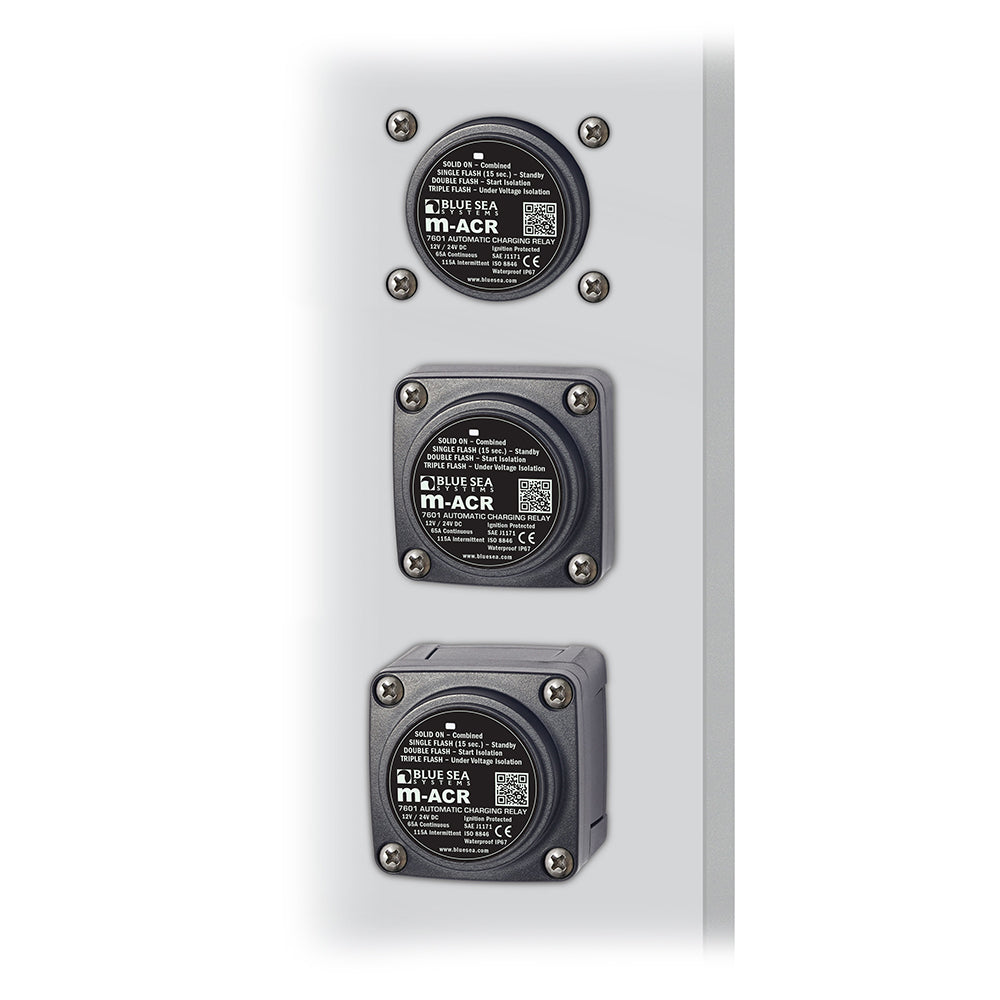

• Compact case design allows surface and panel mounting




• Senses charging on two battery banks




• Snap-on cover insulates terminal connections




• LED indicates ACR status




• 1/4" x .032" male quick connect terminal for ground




• 5/8" (16 mm) stud length to accept multiple cable terminals




• 12V DC voltage input

• Intermittent Rating: 5 min.: 115A




• Terminal Stud Size: 1/4"-20




• Relay Contact Position: Open (30 sec.): 12.75V DC




• Continuous Rating: 65A




• Maximum Torque: 75 in-lb (8.5 Nm)




• Relay Contact Position - Open High: 16.0V DC




• Amperage Operating Current: 175mA (Combine)




• Relay Contact Position: Combine (30 sec.): 13.0V DC




• Under Voltage Lockout: 9.5V DC




• Amperage Operating Current: 15mA (Open)




• Relay Contact Position: Combine (2 min.): 13.6V DC




• Maximum Cable Size: 1/0 AWG




• Relay Contact Position: Open (10 sec.): 12.35V DC
