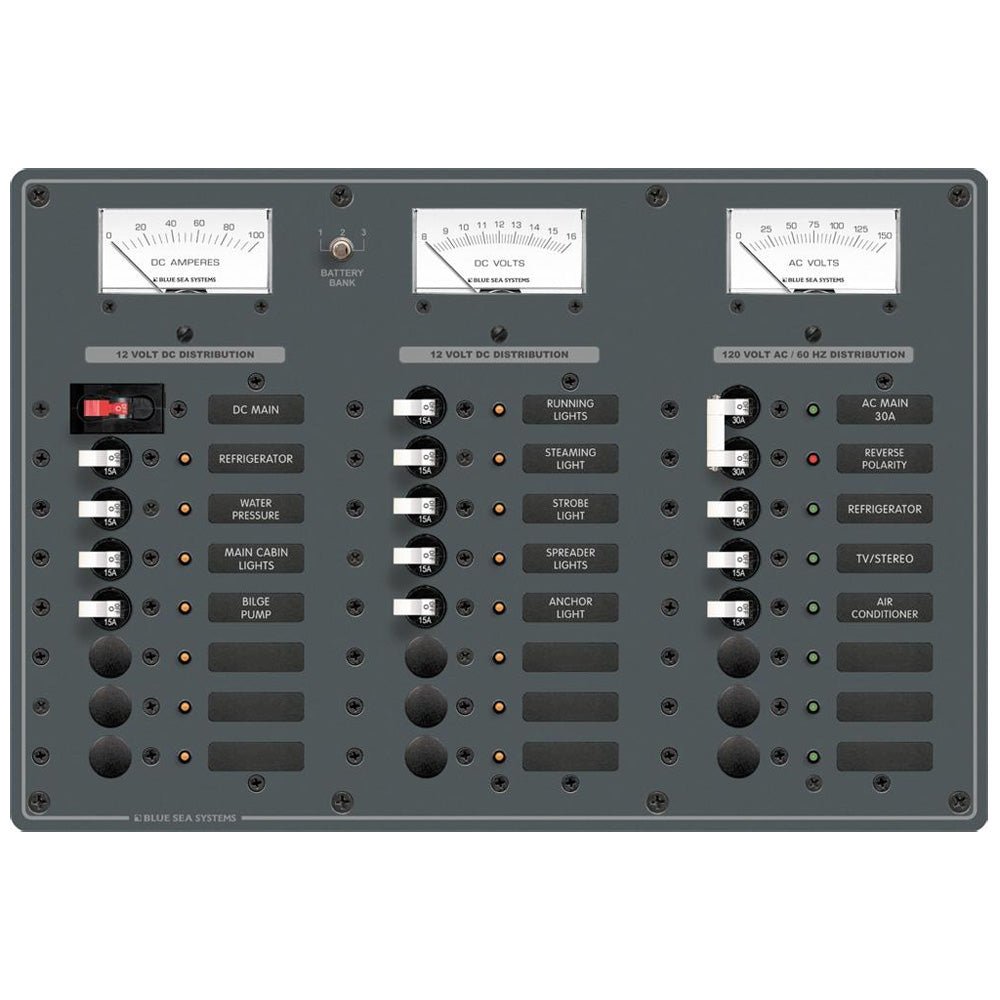

8184 AC Main + 6 Positions/DC Main +15 Positions

Switches Color: White

Features:

• All AC and DC buses installed and fully pre-wired


• Label backlighting pre-installed


• ON - indicating LEDs installed in all circuit positions


• 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch

Specifications:

• Positions: 6 AC / 15 DC


• Nominal Voltage: 230v AC / 12v DC


• Height: 10"


• Width: 14.75"


• Depth: 3"

Included:

• (3) 7299 A-Series White Toggle Circuit Breaker - Single Pole 8A (AC Branch)


• (1) 7294 A-Series White Toggle Circuit Breaker - Double Pole 16A (AC Main)


• (1) 9354 AC Voltmeter - 0 to 250v AC (AC Meter)


• (9) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A (DC Branch)


• (1) 7250i Circuit Breaker CA1 100A Red IP (DC Main)


• (1) 8017 DC Analog Ammeter - 0 to 100A w/ Shunt (DC Meter)
