Blue Sea C-Series ELCI Main Circuit Breaker - Double Pole 230V AC 16A

SKU: 108094
(0)
Agotado
$638.99 USD

🎁 Spend $99.99 on Get Tight Gear → Get a FREE Offshore Bucket!

Applies only to Get Tight Gear products. Limit 1 per order. Auto-applied at checkout. ⏳ Limited Time. 🔥 Limited Quantities. Don’t Miss Out!

Shop Get Tight Gear See the Bucket

¿Te gusta? ¡Compártelo con tu equipo!

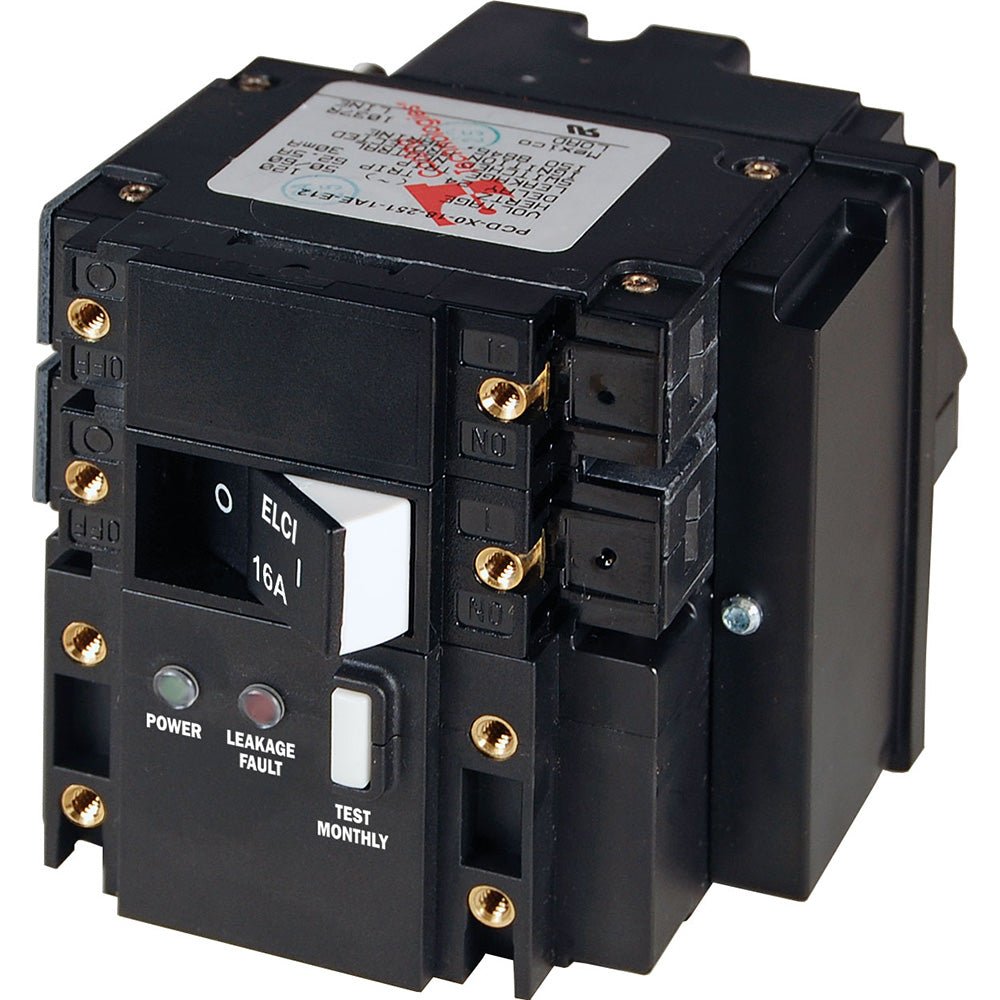

C-Series ELCI Main Circuit Breaker - Double Pole 230V AC 16A

Features:


  • Trips on short circuit, overload, or leakage to ground

  • Front panel mountinstalled in a power distribution panel

Specifications:


  • Amperage: 16A

  • Actuator Style: Flat rocker

  • Poles: 2

  • Ignition Protected: Yes

  • Maximum Voltage: 240V AC per pole

  • Circuit Breaker Type: Magnetic Hydraulic - trip free

  • Interrupt Capacity: 5000A

  • Minimum Operating Temperature: -35 degrees C

  • Maximum Operating Temperature: 66 degrees C

  • Leakage Trip Amps: 30mA

  • Mounting Screw: #6-32 Stainless Steel

  • Mounting Screw Torque: 6in-lb (0.68 Nm)

  • Switching Cycles: 10000

  • Weight: 0.90 lbs (0.41kg)
Truck Freight: No
Oversized: No
