I100-X Small Vessel Tracker

The Identifier I100-X is a ruggedized, fully self-contained AIS Class B vessel tracking transponder, ideal for small vessel tracking and monitoring.

I100-X can power itself using its own internal rapid recharge battery (+120 hours of continuous operation) or be connected directly to another onboard power source such as an engine, battery, or solar, with the battery then acting as a backup.

I100-X is fully water and weatherproof (IPx8 certified) and ruggedized to operate reliably without maintenance in even the harshest of environments: extreme heat or cold, humidity, shock, and vibration.

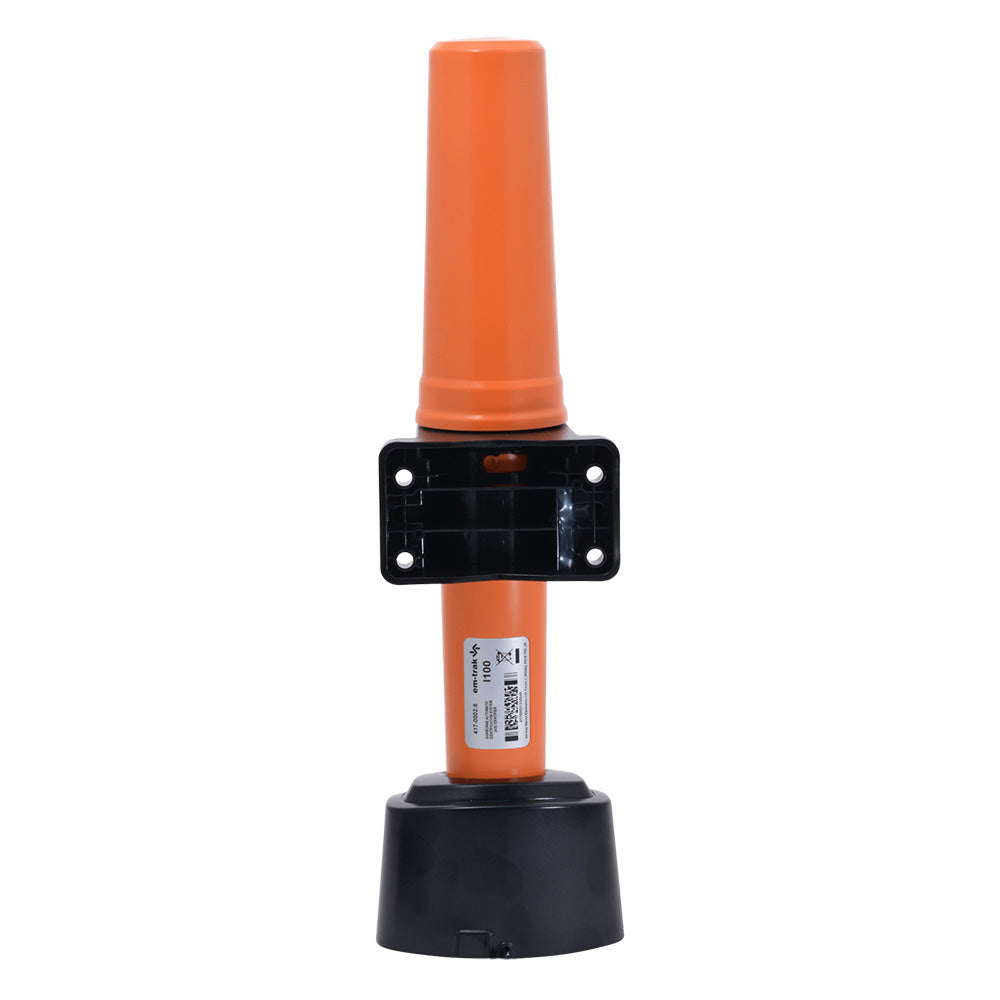

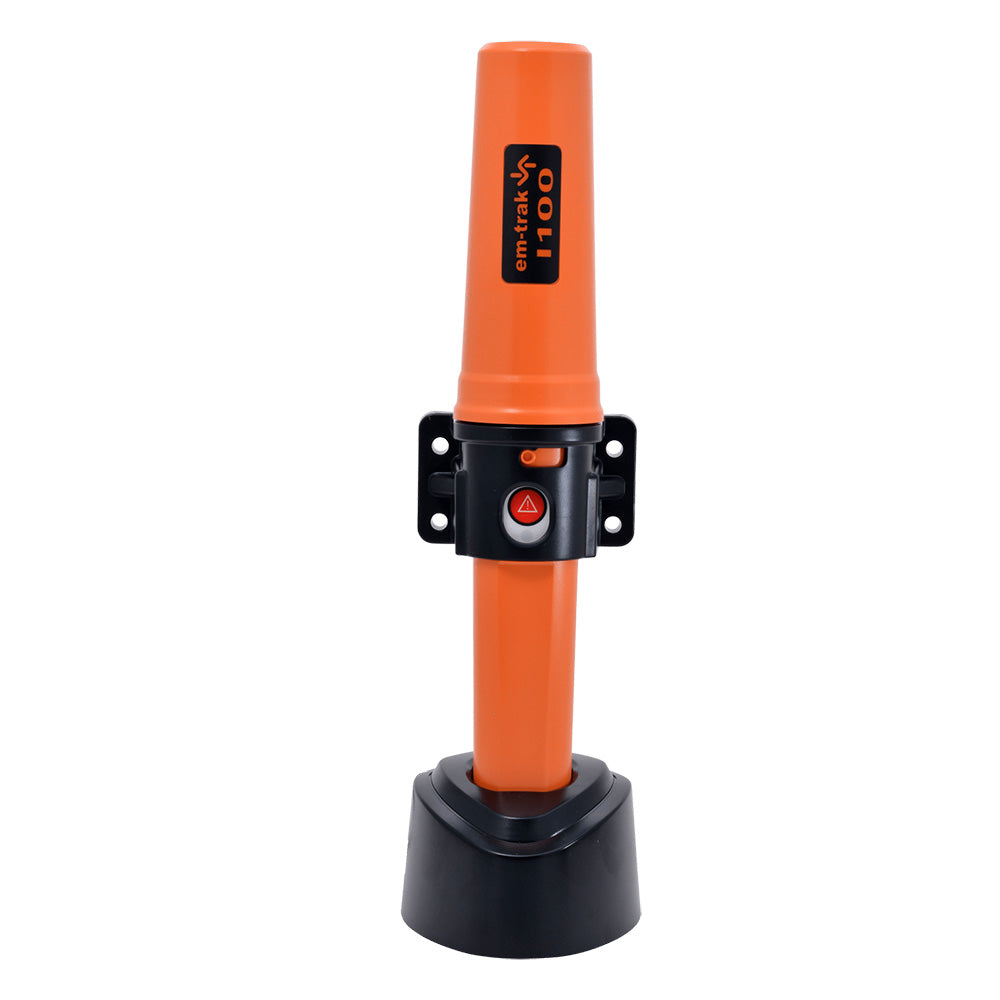

Each I100-X is supplied as a complete kit, which includes the I100-X transponder, mounting bracket, and rapid charging dock. Accessories such as a direct-connect power cable and an alert indicator box are also available.

Features:

• Certified AIS Class B Transponder


• 5 days of continuous use from its internal battery, or connect directly to another onboard power source such as the engine, battery, or solar for a permanent installation


• It takes only 5 hours to completely recharge


• Rugged IPX8 design ensures the operational performance

Physical Environmental Specifications:

• Size (H x W): 370 x 67 mm


• Weight: 355g


• Operating temperature: -25C to +55C


• Storage temperature: -25C to +70C


• Ingress protection: IPx8 (1.1m 30 mins)

Electrical Specifications:

• Battery Capacity: 2300mAh


• Battery Type: 3.7V Li-Ion rechargeable


• Battery Life (default operating conditions): 120 hours

Standards Compliance:

• AIS Standards: IEC 62287-1 Ed. 3. ITU-R M.1371.5


• Product Safety Standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013


• Environmental Standards: IEC 60945 Ed. 4


• GNSS Performance Standards: IEC 61108-1 Ed 2.0

GNSS:

• Systems Supported: GPS GLONASS


• Channels: 72


• Time to First Fix from Cold Start: 26s

VHF Transceiver:

• VDL Access Scheme: CSTDMA


• Operating Frequency: 156.025MHz 162.025MHz


• Channel Bandwidth: 25kHz


• Receivers / Transmitters: 1 x transmitter


• AIS Transmitter Power: 2W (33dBm radiated)

User Interface:

• Buttons: SOS


• Indicators: Status indicator

Charging Dock:

• Size (H x W x D): 110mm x 120mm x 78mm


• Weight: 360g


• Power Supply: 115V / 240V AC

Configuration Dock:

• Size (H x W x D): 110mm x 120mm x 78mm


• Weight: 360g


• Power Supply: 115V / 240V AC


• PC Interface: USB (cable supplied)

In the Box:

• 1 x Identifier


• 1 x Vessel Bracket and a Fixings Pack


• 1 x Charging Dock

*NOTE: You will also require a configuration dock product code: 417-0074. This is used to program the unit before deployment.
