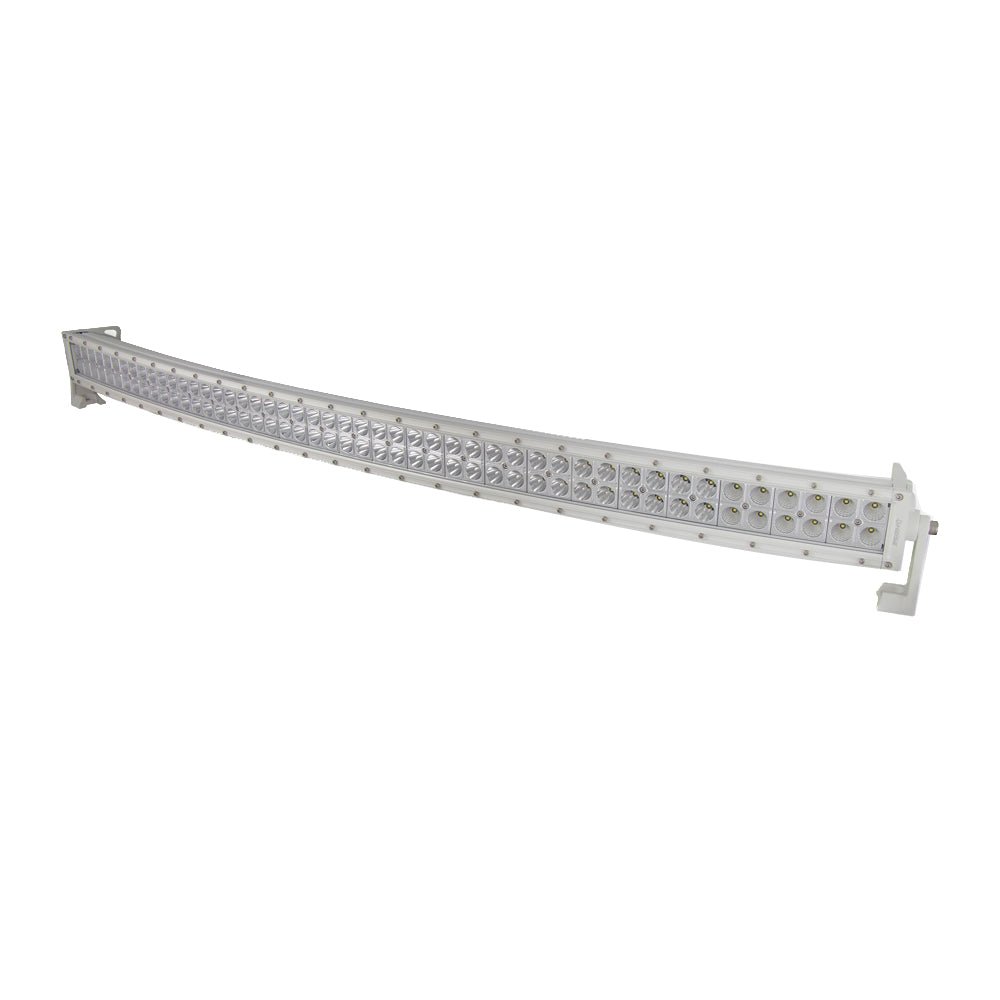

Dual Row Marine Curved LED Light Bar - 42"

Specs

• Input Voltage: 10-30V DC


• Wattage: 240 W


• (80-3WCREELEDs)


• Raw Lumens: 19200


• LUXat 10M: 780


• Color Temperature: 6000K


• Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees

Construction

• Housing Material: Die-Cast Aluminum Housing


• Housing Color: White Coating with UV Inhibitors


• Membrane: Gore


• Lens Material: PC


• Mounting Bracket: Die-Cast Aluminum


• Hole Dimensions:

• Brackets Turned Inward 41 inches


• Brackets Turned Outward 43.5 inches


• Mounting Bolt Drill 25 inches

• Height of Light Bar Itself: 3 inches


• Depth of Light Bar Itself: 3.5 inches


• Electronics: Integrated-Epoxy Encapsulated


• Hardware: Stainless 316

Operation

• Operating Temperature: 40 degrees C to +60 degrees C


• Current Consumption: 12 Amps at 13.8 Volts


• IP Rating: IP67


• Protections: Reverse Polarity
