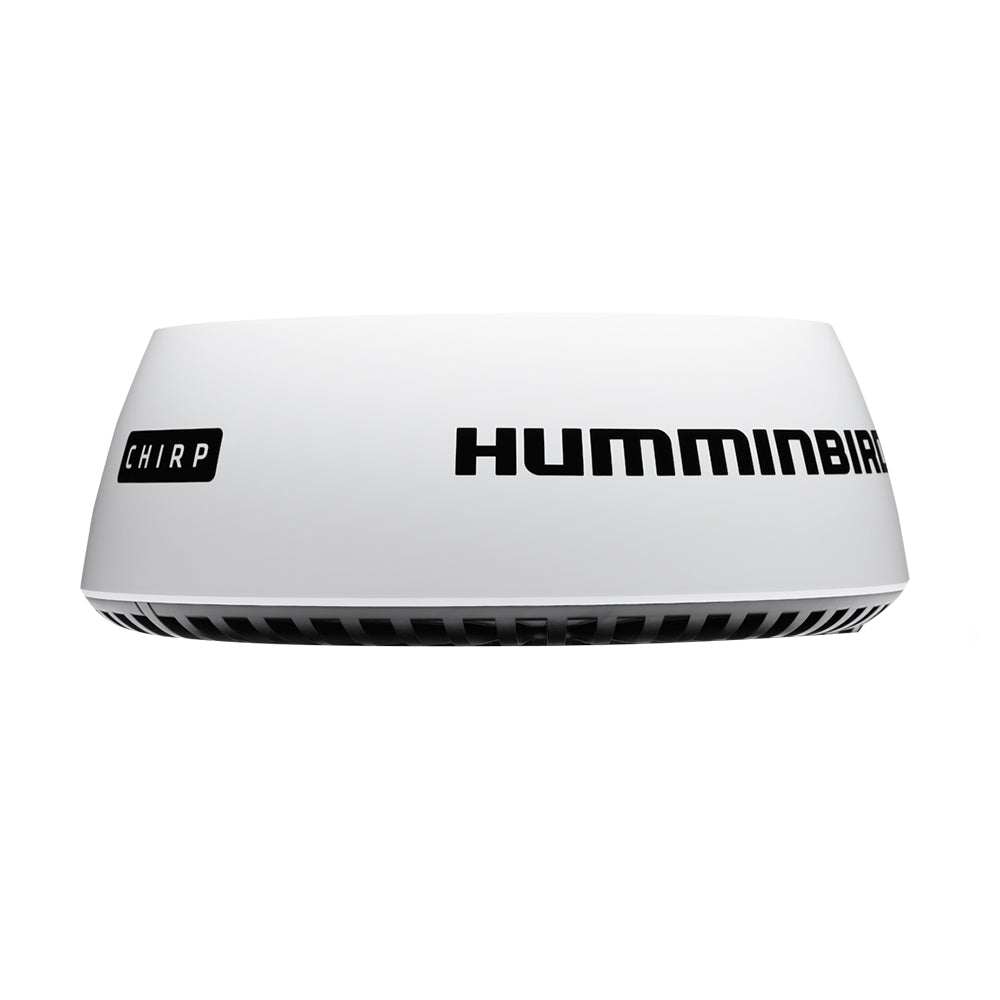

HB2124 CHIRP Radar

Compatible with select networking HELIX models and ONIX, Humminbird CHIRP Radar features CHIRP pulse compression, setting a new standard for compact solid state radar. It delivers superior RADAR imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify birds and floating obstacles for clues to where gamefish are located. You can also track weather and vessels with amazing definiton.

Features:

• Antenna Dimension - 21" Enclosed Dome




• Antenna Type - Patch Array




• Peak Power Output - 20W




• Transmit Frequency - 9354 to 9446 MHz




• Beam width (nominal) - 4.9 Horizontal and 20 Vertical




• Input Voltage - 12 or 24 VDC (Miniumum - 10.8 Volts, Maximum - 31.2 Volts)




• Networking - Ethernet




• Maximum Range Scale - from 1/16 to 24 nautical miles




• Power Consumption - Transmit mode - 17W; Standby Mode - 7W; Sleep Mode - 2W




• Duplexer - Circulator




• Pulse Widths @ 3 dB - 40 ns to 14.7s




• CHIRP Lengths - 400 ns to 20s




• CHIRP Bandwidth - Up to 32 MHz




• IF Bandwidth - 26 MHz




• Noise - Less than 4 dB




• Polarization - Horizontal




• Waterproofing - IPX6




• Weight - 12.3 lbs (5.6 kg)




• Compatibility Networking HELIX models and all ONIX models
