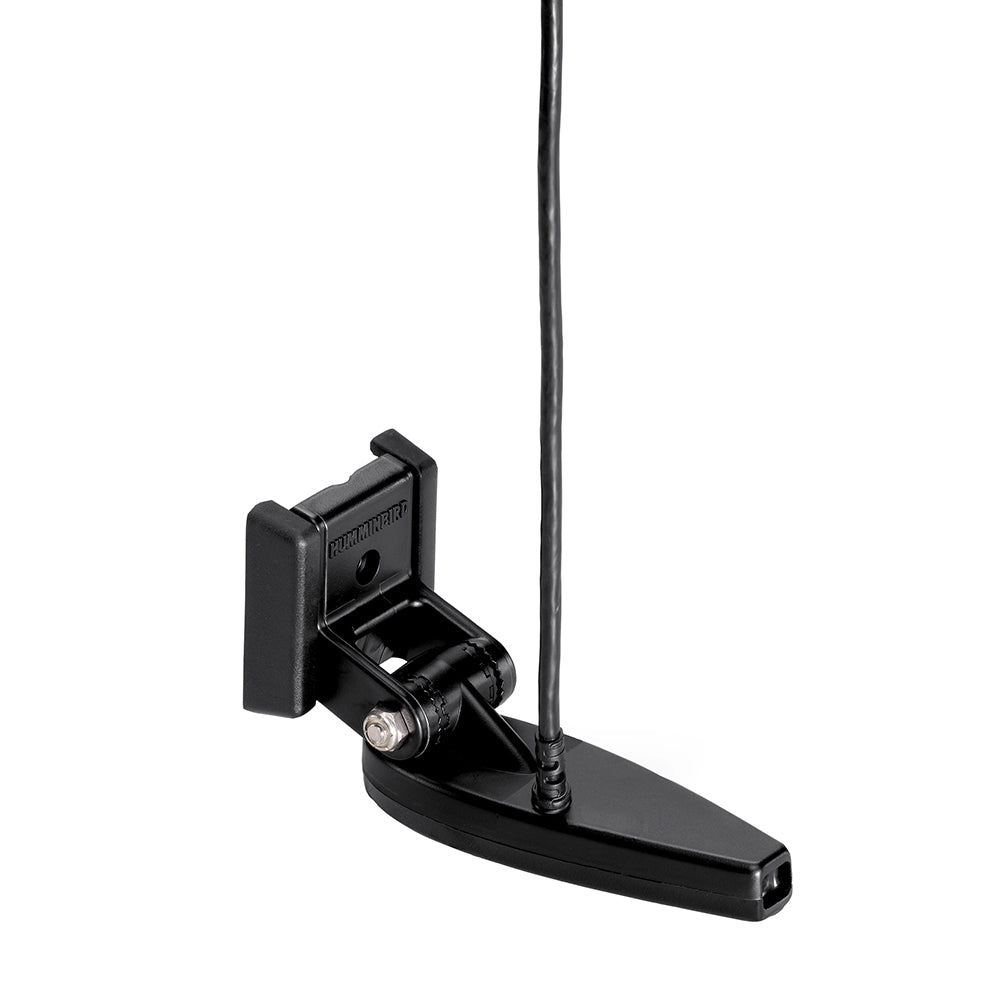

XNT-9-HW-MDI-75-T MEGA DI Dual Spectrum CHIRP Transom Mount Transducer with Temp for HELIX 7/8

MEGA Down Imaging Transom Mount Transducer supports MEGA Imaging/ 455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, impact-release mounting bracket and 20 cable.

Features:

• Compatible with: HELIX 7 CHIRP MEGA DI GPS G3, HELIX 7 CHIRP MEGA DI GPS G3N, HELIX 7 MDI GPS G4N, HELIX 8 CHIRP MEGA DI GPS G3N, HELIX 8 CHIRP MEGA DI GPS G4N.


• Cable Length: 20 Feet


• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz


• Dual Spectrum CHIRP Max Depth: 1200ft (365m)


• MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 350ft (107m), MEGA DI: 1075-1150 kHz - 125ft (38m) - 125ft (38m)
