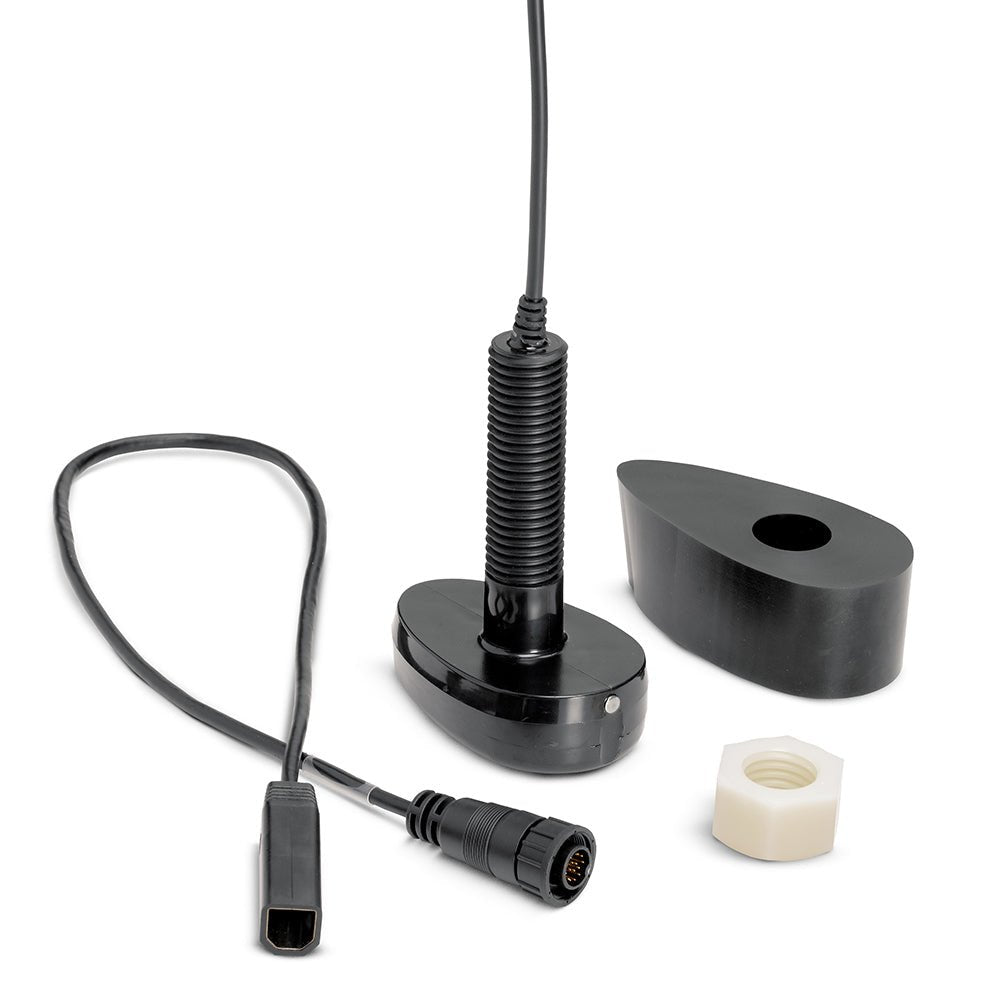

XPTH-9-HW-T Dual Spectrum CHIRP Plastic Thru-Hull Transducer with Temp

Plastic Thru-Hull Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Includes built-in temperature sensor, rugged composite design and 30 cable.

Features:

• This accessory is compatible with the following Humminbird products: HELIX 5 CHIRP G2 GPS-equipped models only, HELIX 7 CHIRP G2/G3 GPS-equipped and CHIRP DI G2 models, HELIX 7 CHIRP G2N/G3N All models, HELIX 8 CHIRP G3N All models, HELIX 9 CHIRP G2N/G3N All models, HELIX 10 CHIRP G2N/G3N All models, HELIX 12 CHIRP G2N/G3N All models, ICE HELIX CHIRP G2 All models (In Open Water Mode).


• Side Imaging and Down Imaging units can support the XPTH 9 HW T as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging.


• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz


• Dual Spectrum CHRIP Max Depth: 1200ft (365m)
