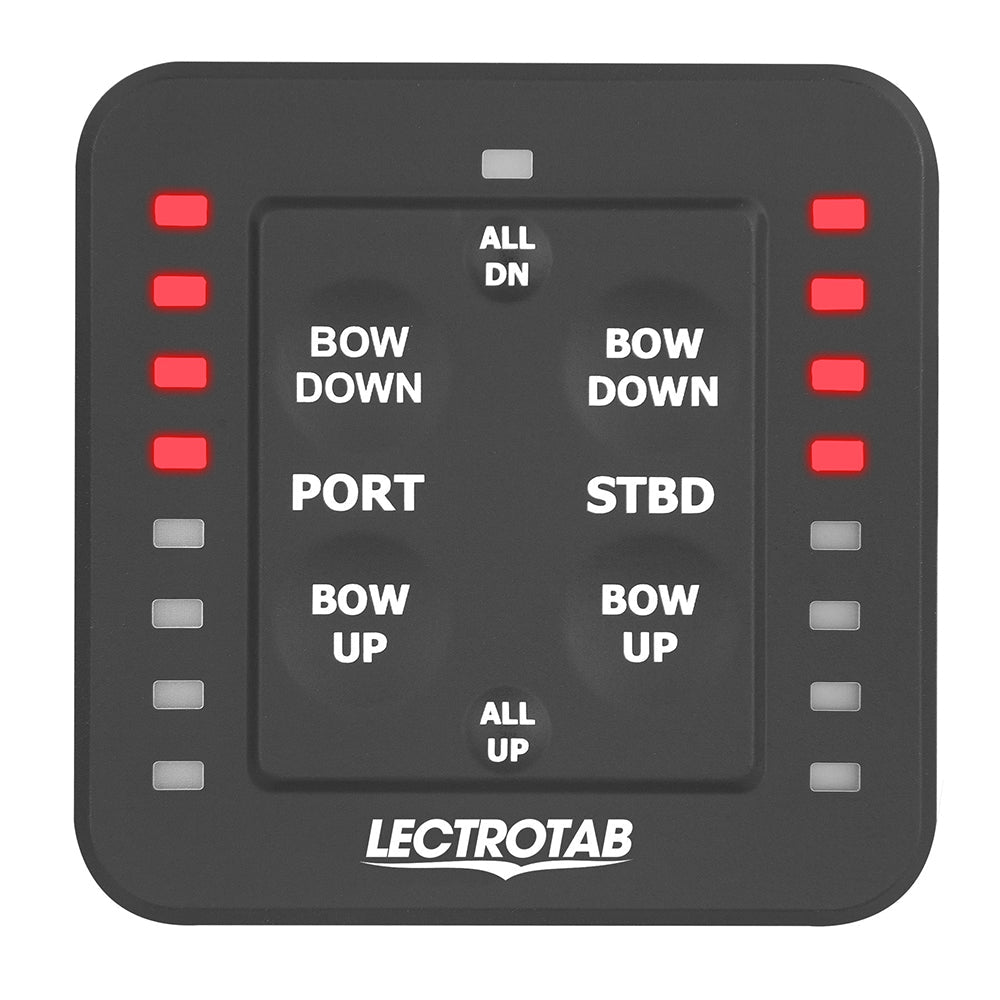

One-Touch Leveling LED Control

Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.

Convenience, easy of use and reliability will make boating more enjoyable.

Features:

• Microprocessor-based trim tab control with LED tab position indicators


• Single-button press to move both tabs up or down simultaneously


• Automatic return to last tab position if the ignition key is turned off and back on again


• Completely sealed, completely waterproof and will not deteriorate in sunlight


• No external power module required for single or dual actuator per tab systems


• LED tab position indicators dim automatically in darkness and brighten in the sunlight


• Adjustable programming features

Technical Specifications:

• Display Color - Black


• Actuators per Tab Plate - One (1) or Two (2)


• Dimensions (W x H) - 3" x 3" (77 x 77 mm)


• Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)


• Operating Voltage - 12 or 24 V

*Sold as an Individual
