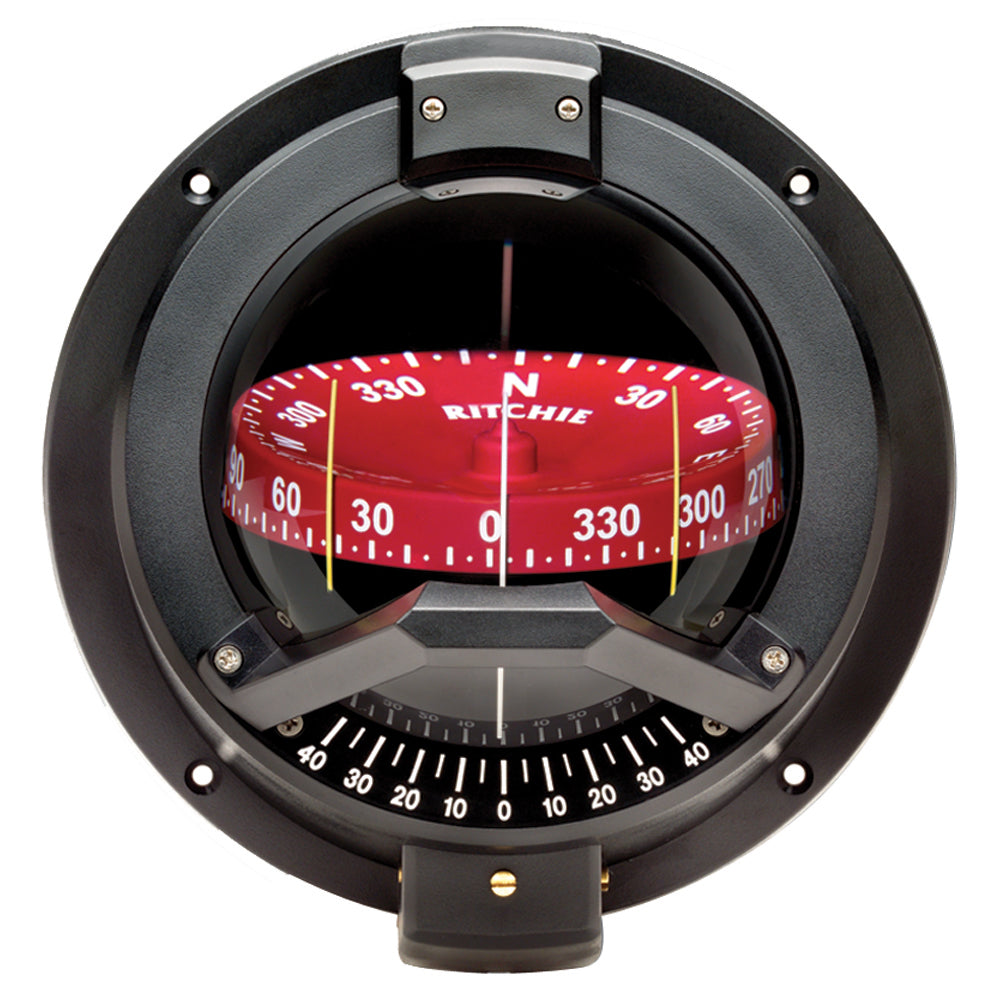

Navigator Compass

Features:

• 4 1/2 (115 mm) Ritchie CombiDial and Built-in Inclinometer


• When mounting this Compass to a bulkhead that is NOT perpendicular (90 angle) to the center-line of the boat and/or NOT vertical (90 angle) to the waterline of the boat (boat on level keel), a fairing block MUST be used to make the compass so.

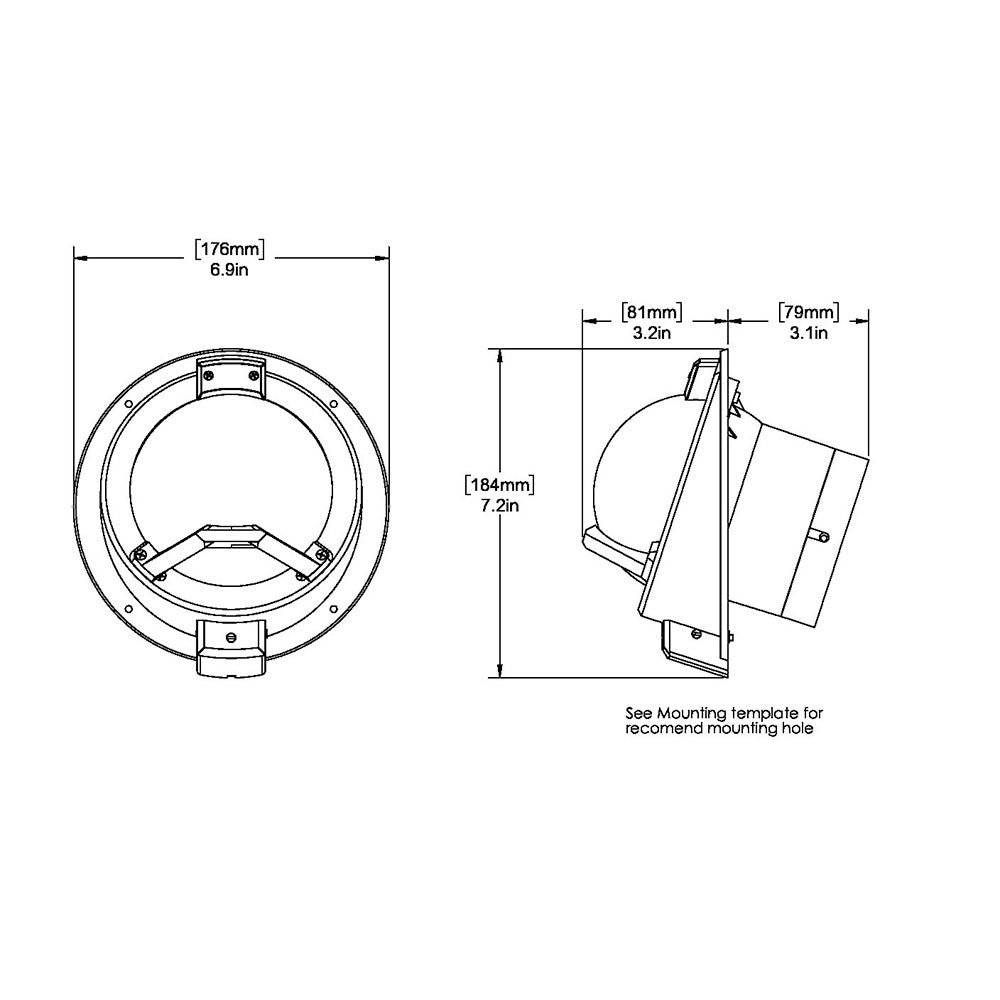

• Easily Installed, Fits 5.75 (146 mm) Mounting Hole


• Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions


• Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement


• Fiberglass Reinforced Bowl


• 45 degree Lubber Lines


• Exclusive Built-in 12v Amber LED Lighting


• Built-in Compensators to Easily Adjust for Deviation


• 100% Repairable


• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 2 lbs 5 oz (1.05 kg)

Notes:

12v lighting standard - 24 32v lighting options are available.
