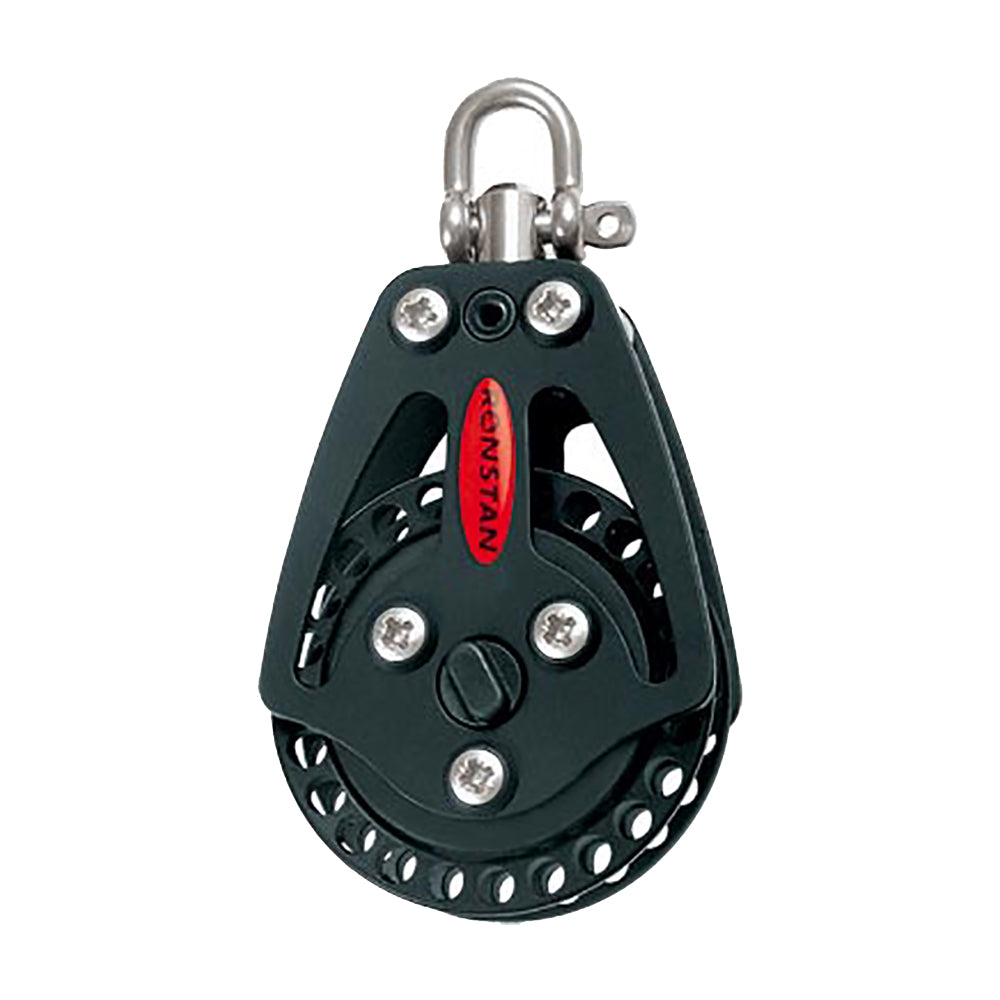

Series 60 Ultimate Ratchet - Single

The extruded hole design, in conjunction with the groove profile of the sheave, provides a more powerful grip than conventional designs - up to 20:1 holding power. Unrivaled low weight is achieved by the use of a Torlon ratchet pawl, high grade machined alloy sheave and black Acetal hubs and bearings. On-Off switching knob is fitted to both sides of the swivel blocks (one can be removed if desired). Ratchet blocks can be disassembled for servicing or customization.

Features:

• Unrivalled 20:1 holding power


• Dual sided On-Off switch


• Ability to operate On/Off switch under load


• Low friction ball bearing system


• Lightweight


• Cheek cut-outs for easy bearing maintenance

• Mainsheet on powerful dinghies and skiffs


• Series 60 mainsheet systems on sports boats using RF7 mainsheet swivel units


• Control line applications on larger yachts


• Spinnaker sheets on sports boats and small keel boats (lateral lead blocks)

• Carbon black Acetal ball bearings


• Anodised aluminium sheave and cheek plates


• Torlon ratchet pawl


• Grade 316 stainless steel forged shackle

• Sheave : 2-3/8


• Max. Rope : 3/8


• Pin : 3/16


• M.W.L.: 550lb


• B. L.: 3020lb


• Weight: 5.3oz
