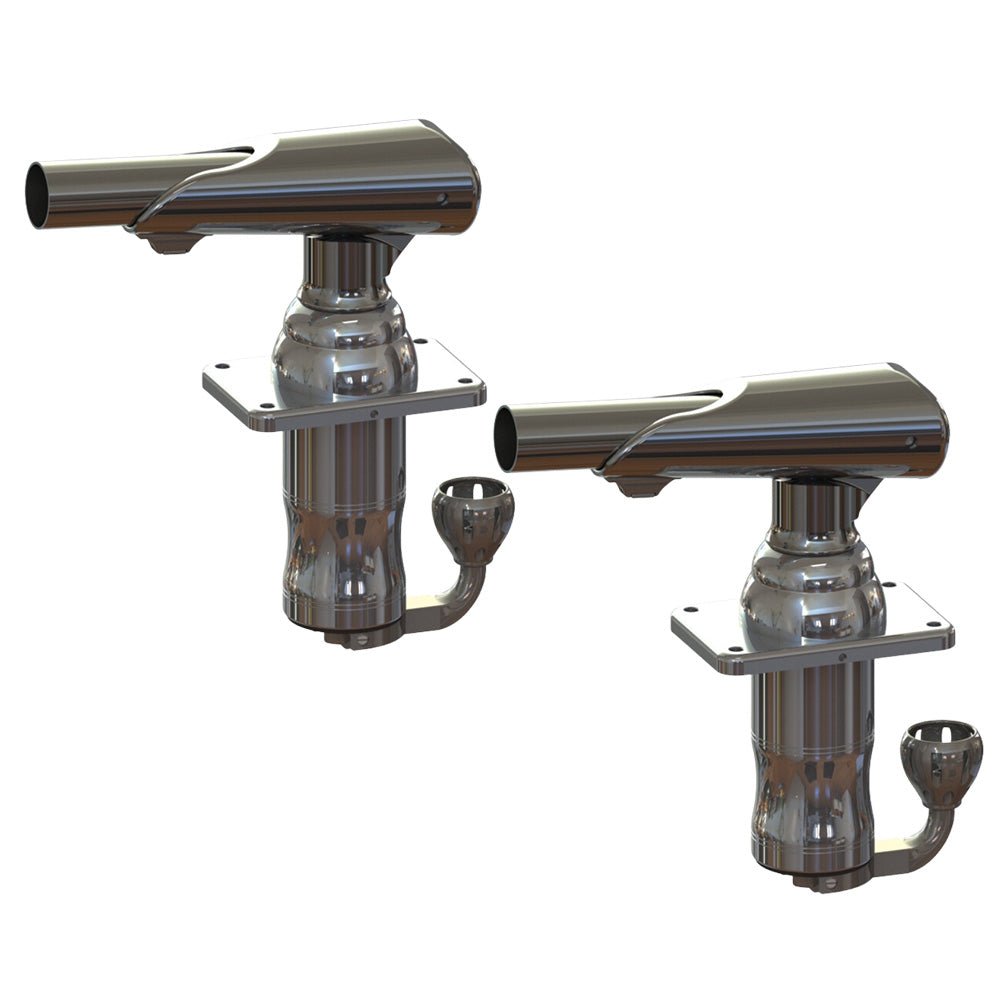

Grand Slam 300 Outrigger Mount for 1-1/2 Outrigger

Single-Handle Operation is Here! Introducing the Grand Slam 300 a stainless-steel / polished, anodized aluminum, single-handle Outrigger Mount that delivers enhanced safety and performance with smooth, one-handed operation from the deck. Easily adjust rotation and lift of outrigger poles using the GS-300s ergonomic crank handle, which locks flush into the base. The Mounts attractive, all-metal design means no plastic components, a greater water seal, and increased protection from the elements. The GS-300 pairs with TACOs award-winning Open Water Internal Collapsible Carbon Fiber Outrigger Poles, as well as Aluminum or Carbon Fiber Tele-Outrigger Poles up to 22 with an underside pin-locking connection eliminating the need for port and starboard designations.

Features Benefits:

PIN-LOCKING ARM

• No port or starboard designation


• Underside locking pin connection


• Arm lifts to 46.5 from the horizontal position for kite fishing and dock clearance


• Pairs with 1-1/2 DIA Outrigger Poles up to 22


• Can be used with Outrigger Base Reducer for 1-1/8 DIA poles

HANDLE

• Stainless-steel, ergonomic, single-hand crank handle with ball bearing


• Enables lift and rotation of outrigger poles from the safety of the deck


• Unique, locking flip handle


• Keeps the handle knob on the bottom when lifting or rotating the outrigger


• Provides full torque control and safety of deployment at all times


• Robust, dual-detented lifting crank handle locks flush into base

MOUNT

• Ideal for boats 25 to 40


• Constructed from cast stainless steel and machined aluminum for a stronger, lighter base


• Each mount weighs 15 pounds (30 pounds per pair)


• Safety detents prevent uncontrolled rotation when deploying outrigger poles


• Allows a controlled 180 rotation, if needed


• The locking head eliminates the downward creep of outrigger poles


• Equipped to handle the torque and whip generated by poles up to 22


• Includes mounting hardware for easy installation


• The base hole pattern matches all TACO Marine Grand Slam models, as well as the industry standard hole patterns of other top-mount outrigger systems


• Backing plates (BP-0300) sold separately


• 3-year limited warranty

Specifications:

• Weight: 30lbs


• Sold as a pair
